Method and apparatus for detecting defect in transparent body
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 6, 2018
Issued Date -
N/A
app pub date -
Mar 29, 2017
filing date -
Apr 26, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

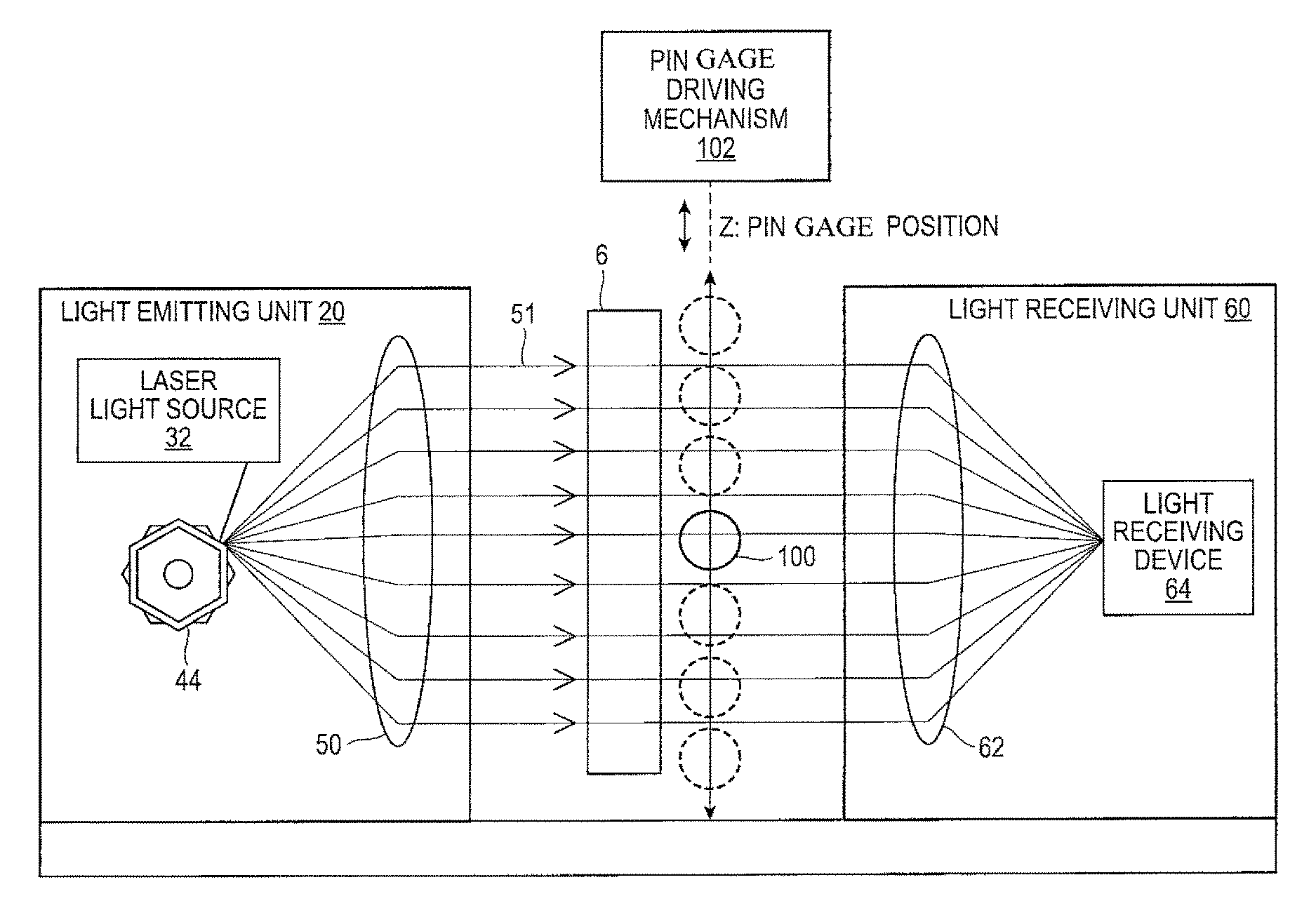

A quantitative, high-sensitivity examination of defects in a transparent product is realized, using a low-cost and space-saving optical dimension measuring apparatus to carry out measurement in a non-contact manner to avoid damaging the object of inspection and to avoid sensory examination. A transparent body to be examined is disposed between a light emitting unit and a light-receiving unit arranged opposite each other. A change in an optical path caused by a defect in the transparent body is detected based on a change in a light ray emitted from the light emitting unit and being incident on the light-receiving unit after passing through the transparent body and a light-blocking object disposed between the transparent body and the light-receiving unit.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G01N Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 6, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 6, 2029 |
