Bolt for bolt action rifles
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 6, 2018
Issued Date -
N/A
app pub date -
Feb 25, 2016
filing date -
Feb 26, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

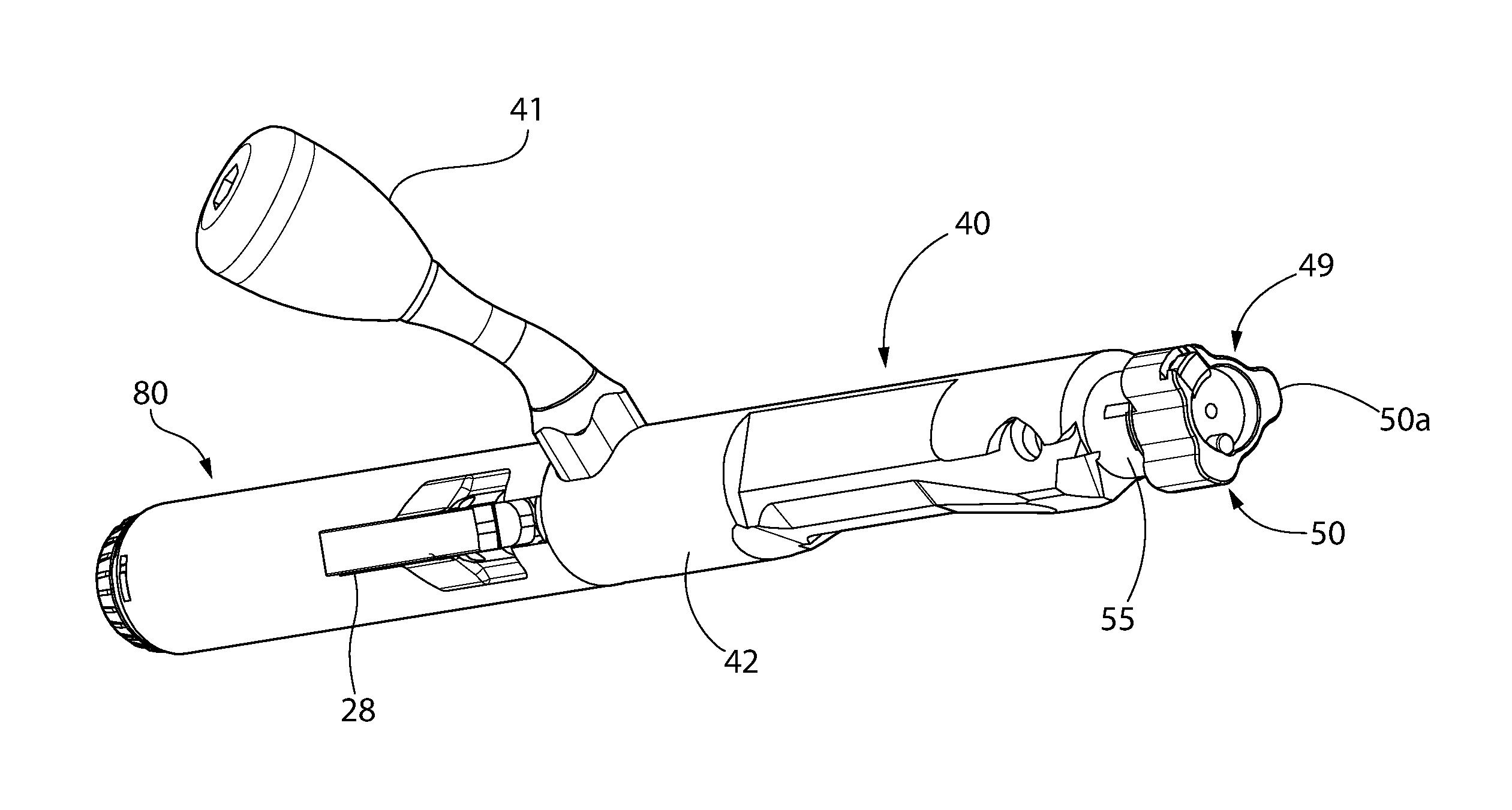

A bolt for a bolt-action firearm in one embodiment is movably disposed in a receiver between forward closed breech and rearward open breech axial positions. The bolt includes an operating handle and plurality of bolt lugs arranged to selectively engage locking lugs in the firearm. The bolt is rotatable between locked and unlocked breech positions when in the closed breech position. The bolt body has a dimensionally reduced middle section with unique configuration adapted to allow the bolt to rotate when closed without interference from the magazine feed lips. Using this design, the bolt may include three bolt lugs in one embodiment for secure lockup and minimal angular rotation between the locked and unlocked breech positions. The bolt is usable with both single and double stack box type magazines with one of the bolt lugs operating to reliably strip cartridges from either type magazine.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- F41A Class
- 610 Applications Filed
- 510 Patents Issued To-Date
- 83.61 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 8 Citation Count
- F41A Class
- 19.21 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 6, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 6, 2029 |
