System and method for processing liquefied gas
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 6, 2018
Issued Date -
N/A
app pub date -
May 14, 2013
filing date -
May 14, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

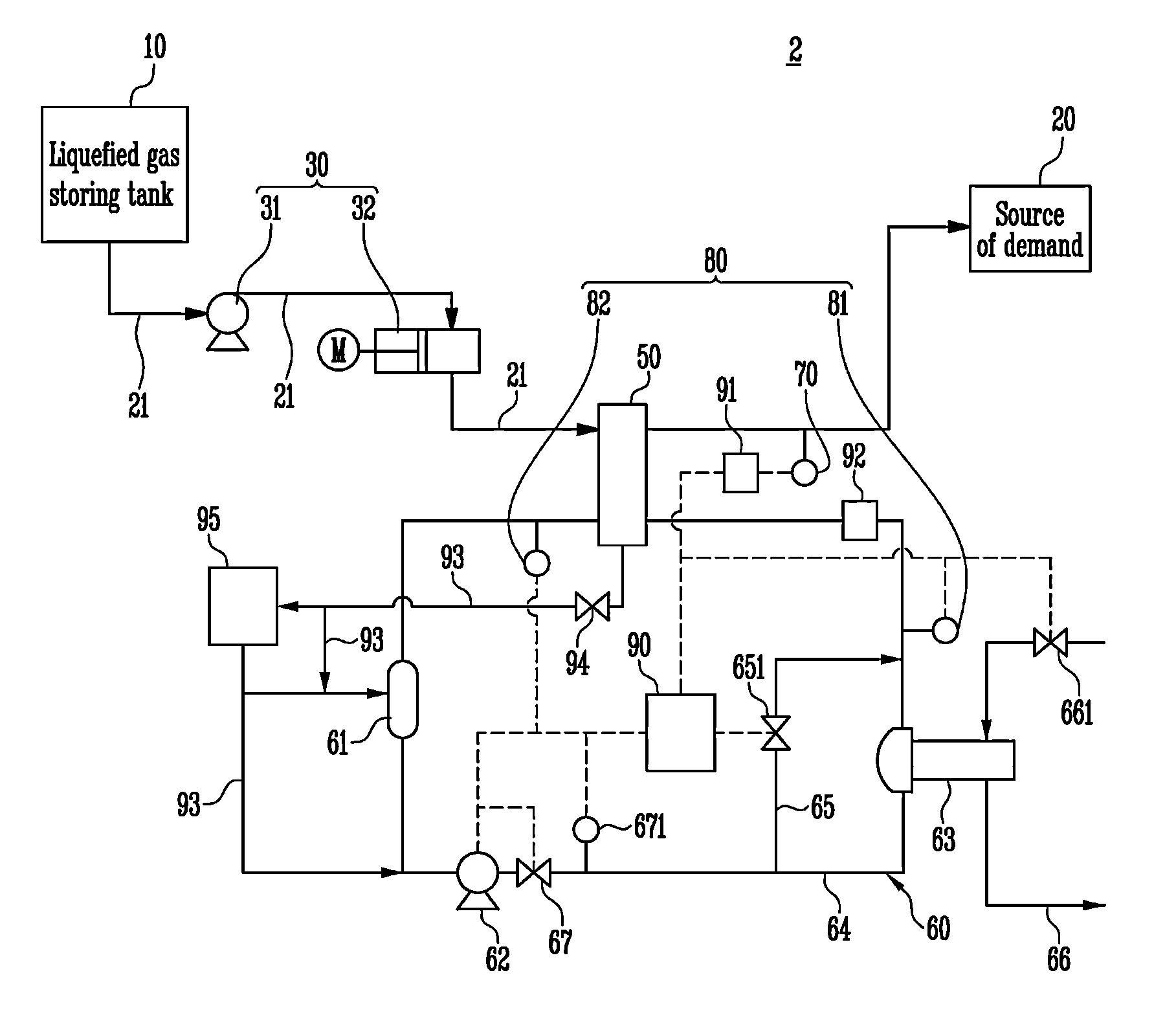

The present invention relates to a liquefied gas treatment system and method. A liquefied gas treatment system includes: a liquefied gas supply line connected from a liquefied gas storing tank to a source of demand, a heat exchanger provided on the liquefied gas supply line between the source of demand and the liquefied gas storing tank, and configured to heat exchange the liquefied gas supplied from the pump with heat transfer media with heat transfer media, a media heater configured to heat the heat transfer media, a media circulation line connected from the media heater to the heat exchanger, a media state detecting sensor provided on the media circulation line, and configured to measure a state of the heat transfer media, and a controller configured to set a gasification prevention reference value for preventing the heat transfer media from being gasified, and change a flow rate of the heat transfer media flowing into the media heater or calories supplied to the heat transfer media by the media heater on the basis of a state value of the heat transfer media by the media state detecting sensor and the gasification prevention reference value.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- F02M Class
- 1202 Applications Filed
- 1045 Patents Issued To-Date
- 86.94 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- F02M Class
- 21.60 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 6, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 6, 2029 |
