Hydrokinetic torque coupling device for a motor vehicle
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 6, 2018
Issued Date -
N/A
app pub date -
Oct 2, 2015
filing date -
Oct 2, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

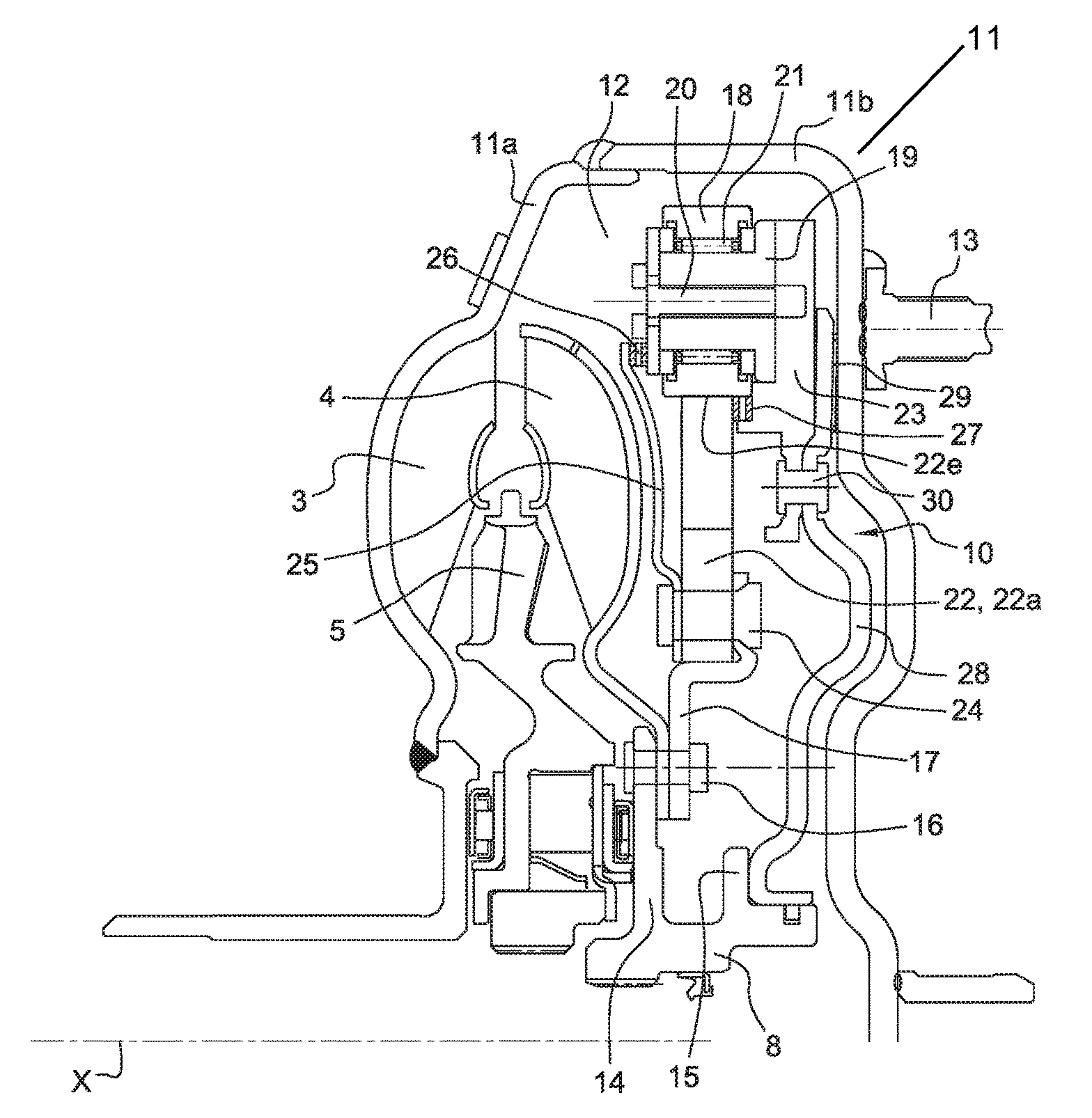

The disclosure describes a hydrokinetic torque coupling device for a motor vehicle. The coupling device includes a torque input element (11) intended to be coupled to a crankshaft (1), an impeller wheel (3) rotationally coupled to the torque input element (11) and able to hydrokinetically drive a turbine wheel (4). The turbine wheel, in turn, drives a torque output element (8) intended to be coupled to a transmission input shaft (2). The device further includes a clutch (10) able to rotationally couple and uncouple the torque input element (11) and the torque output element (8) between engaged and disengaged positions. When the clutch is in an engaged position, torque passes from the torque input element (11) to the torque output element (8) through an included damper system (18, 22).
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- F16F Class
- 993 Applications Filed
- 789 Patents Issued To-Date
- 79.46 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F16F Class
- 42.26 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 6, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 6, 2029 |
