Stator assembly of hydrokinetic torque converter with press crimped retainer plates and method for making the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 6, 2018
Issued Date -
N/A
app pub date -
May 23, 2014
filing date -
May 23, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

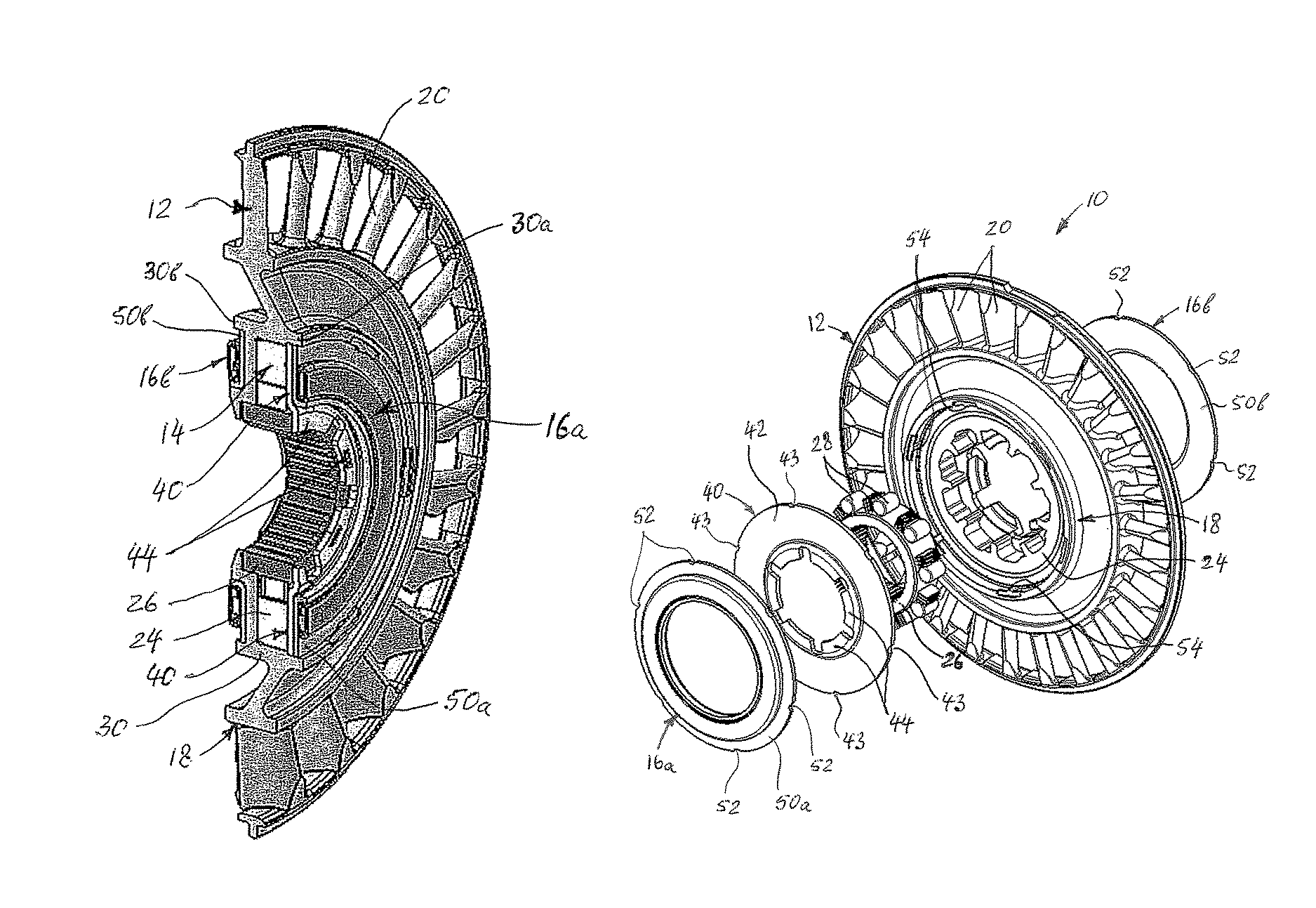

A stator assembly of a hydrokinetic torque converter includes a stator rotatable about an axis and having a hub bore coaxial to the axis, the stator having a crimped portion, a one-way clutch mounted to the stator in the hub bore coaxially to the axis, and a retainer plate fixedly secured to the stator in hub bore by the crimped portion. A method for making a stator assembly of a hydrokinetic torque converter involves providing a stator having an axis and a hub bore that is coaxial with the axis, the hub bore containing a one-way clutch and an annular retainer plate, and crimping a portion of the stator to fixedly secure the one-way clutch and the annular retainer plate in the hub bore.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B23P Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 6, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 6, 2029 |
