Actuating device for displacing a part of the empennage of a helicopter
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 6, 2018
Issued Date -
N/A
app pub date -
Oct 29, 2015
filing date -
Oct 29, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

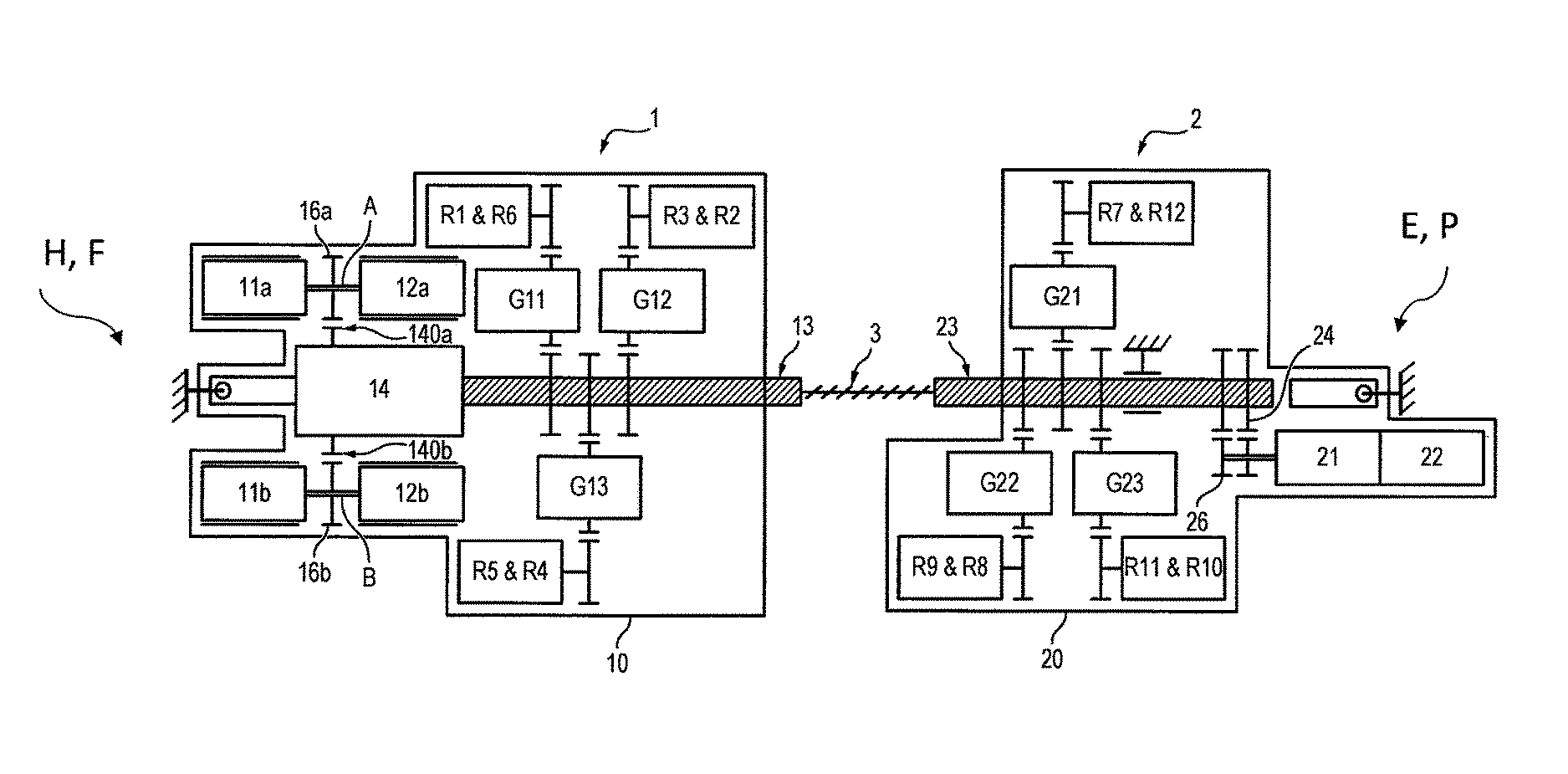

An actuating device to displace a part of an empennage of a helicopter, including a first part including a first casing fixed to a frame of the helicopter, a first element mounted in rotation with respect to the first casing and a first motor the first element. A second part includes a second casing connected to the part of the empennage, a second element mounted in rotation with respect to the second casing and a second motor driving the second element. A connecting element connects the first part with the second part, being mobile in translation with respect to the first element. Rotation of the first element causes a translation of the connecting element, and is mobile in translation with respect to the second element. Rotation of the second element causes a translation of the connecting element with respect to the second element.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H02K Class
- 23.38 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 6, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 6, 2029 |
