Orthopaedic cutting block having a chemically etched metal insert and method of manufacturing
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 6, 2018
Issued Date -
N/A
app pub date -
May 26, 2016
filing date -
Dec 29, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

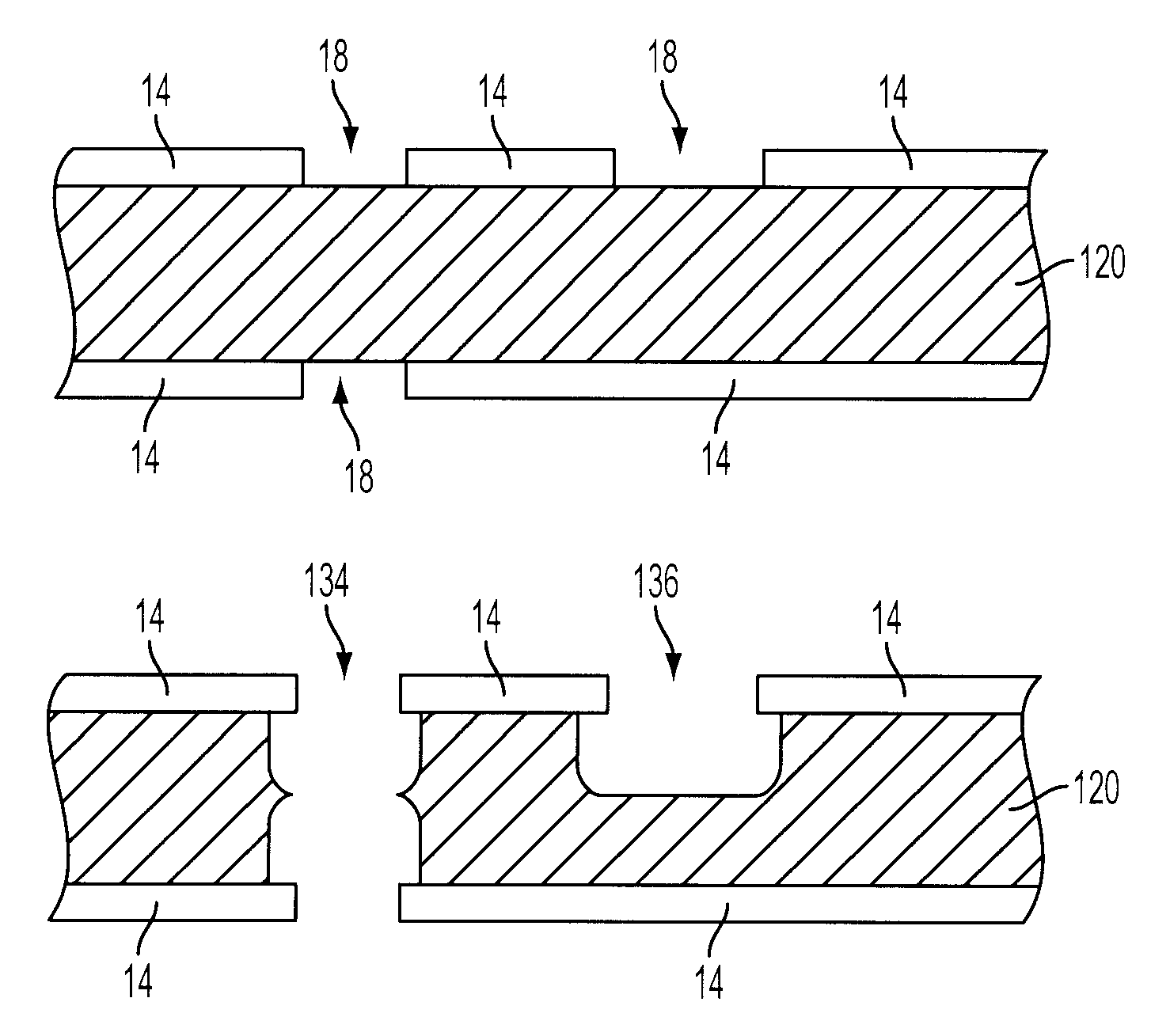

An orthopaedic surgical instrument comprising an orthopaedic cutting block includes a metallic bearing insert configured to support a bone cutting tool and a body molded to the bearing insert. The bearing insert includes a plurality of chemically etched holes, and the body is molded to the bearing insert such that each of the plurality of chemically etched holes is at least partially filled by a portion of the body. The body of the orthopaedic cutting block may include a bone-facing surface adapted to contact a portion of a patient's bone, and the bearing insert may be positioned to allow a surgeon to perform a cut on the patient's bone using the bearing insert for support. A method of manufacturing an orthopaedic surgical instrument is also disclosed.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- A61B Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 6, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 6, 2029 |
