Enhanced paging schemes and connected-state DRX
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 30, 2018
Issued Date -
N/A
app pub date -
Jul 9, 2015
filing date -
Jul 11, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

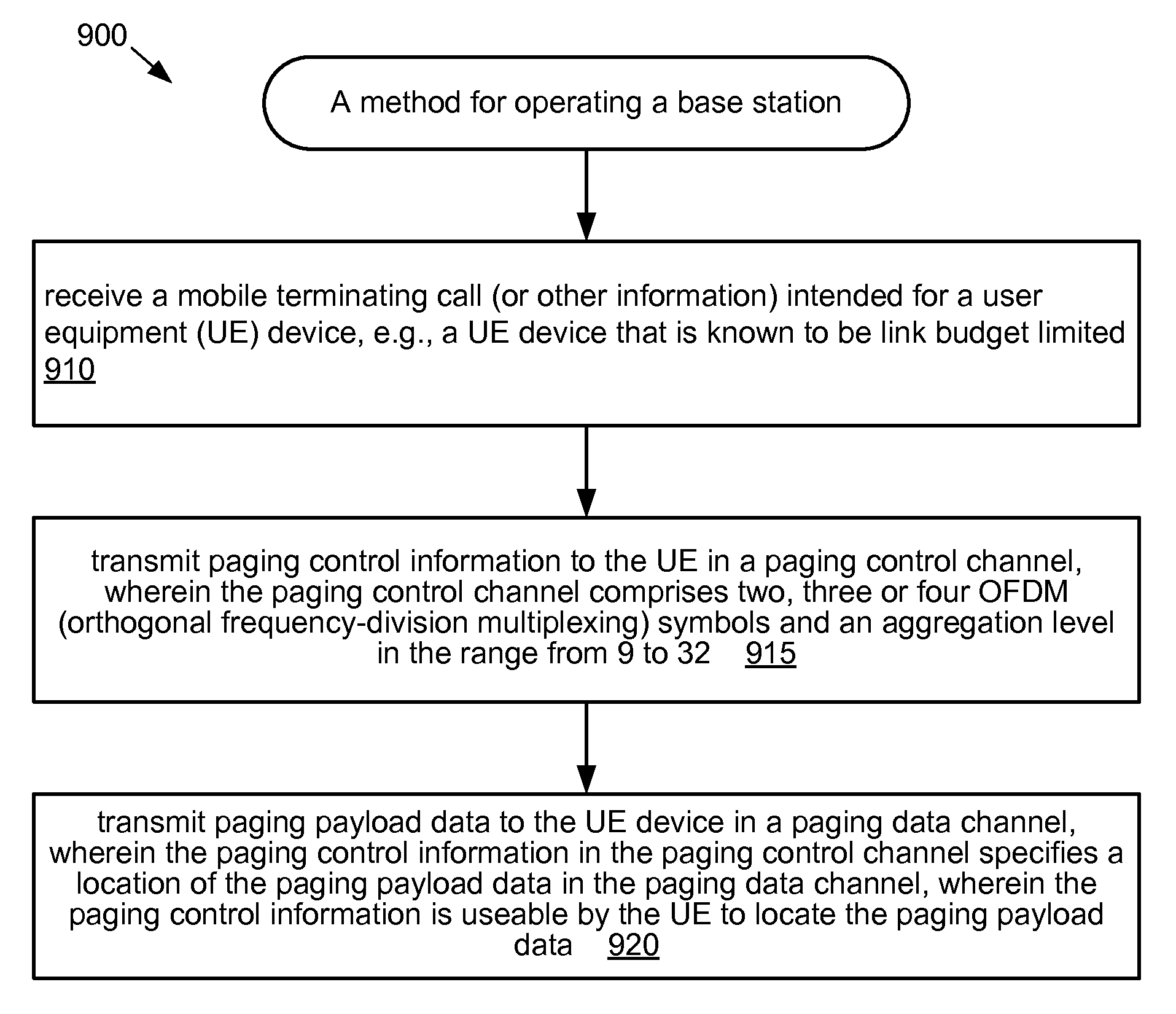

For paging user devices that are link budget limited (LBL), a base station transmits a special ID that is used by said devices to identify a paging frame and/or a paging occasion. When transmitting a paging message for an LBL device, the base station may use: (a) larger aggregation and larger CFI (than conventionally allowed) and (b) a larger number of resource blocks (than conventionally allowed) for paging payload. If paging messages for LBL devices saturate the paging frame capacity, the base station may allocate a plurality of special IDs. If paging messages for LBL devices and/or other data transfers saturate network capacity, at least a subset of the LBL devices may be directed to enter a connected-state discontinuous reception (DRX) mode, wherein those devices will remain in connected mode and periodically check for resource allocations. Paging payload information may be repeatedly transmitted in successive subframes, to support soft combining.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- H04W Class
- 20427 Applications Filed
- 16487 Patents Issued To-Date
- 80.72 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- H04W Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 30, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 30, 2029 |
