Data switching system, method for sending data traffic, and switching apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 30, 2018
Issued Date -
N/A
app pub date -
May 11, 2016
filing date -
May 15, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

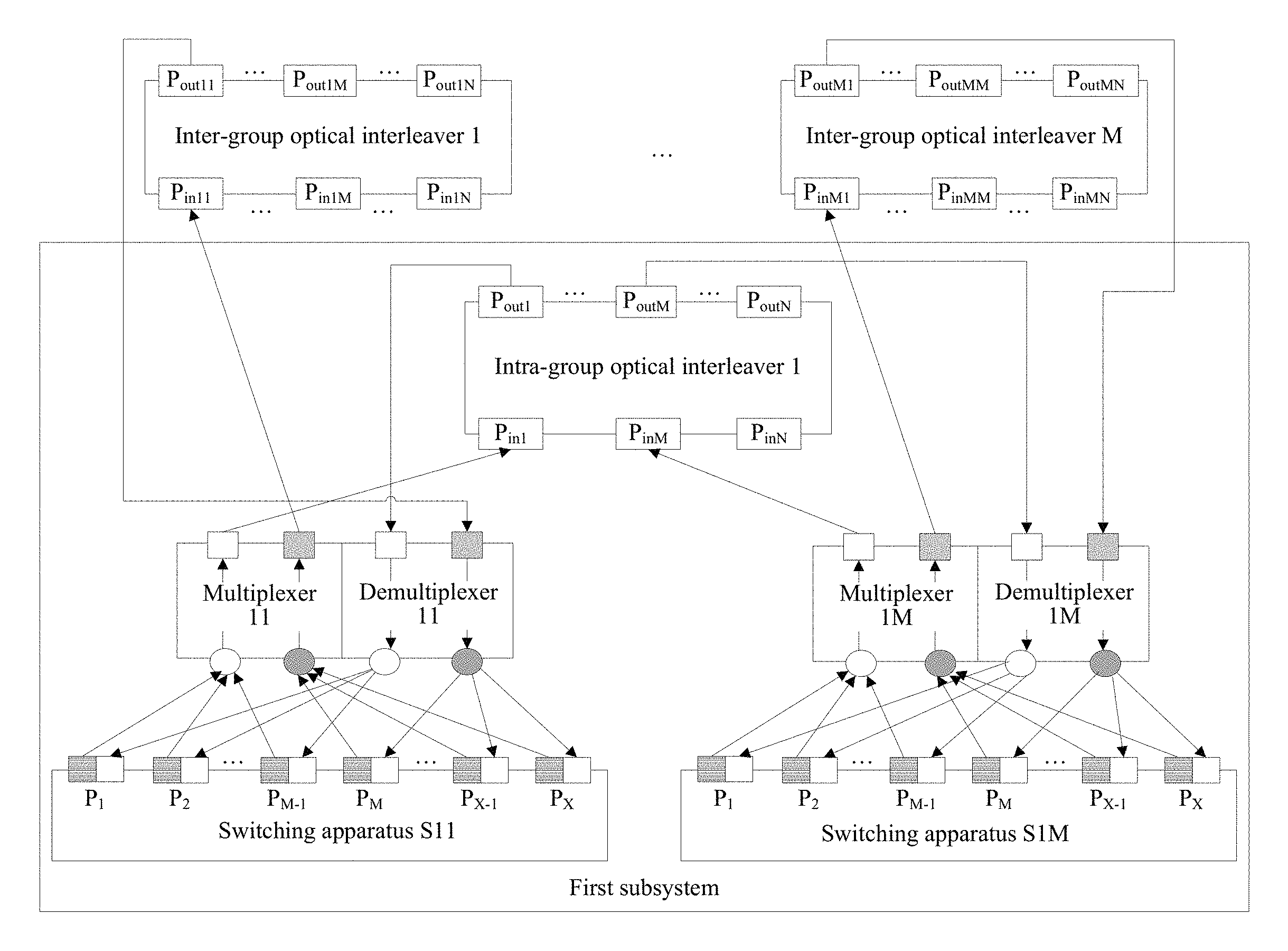

The present invention provides a data switching system, including K subsystems, where a first subsystem in the K subsystems includes M switching apparatuses, a first switching apparatus in the M switching apparatuses includes X network side ports, and the X network side ports include M−1 intra-group ports and K−1 inter-group ports, where the M−1 intra-group ports are respectively connected to M−1 switching apparatuses in the first subsystem except the first switching apparatus; and the K−1 inter-group ports are respectively connected to direct switching apparatuses, of the first switching apparatus, in K−1 subsystems in the K subsystems except the first subsystem. Such a structure improves a capacity of a switching system in a case in which no core switching apparatus is required.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- H04L Class
- 37326 Applications Filed
- 27972 Patents Issued To-Date
- 74.94 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H04L Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 30, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 30, 2029 |
