Systems and methods for causing a stunt switcher to run a multi-video-source DVE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 30, 2018
Issued Date -
N/A
app pub date -
Dec 6, 2016
filing date -
Mar 14, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

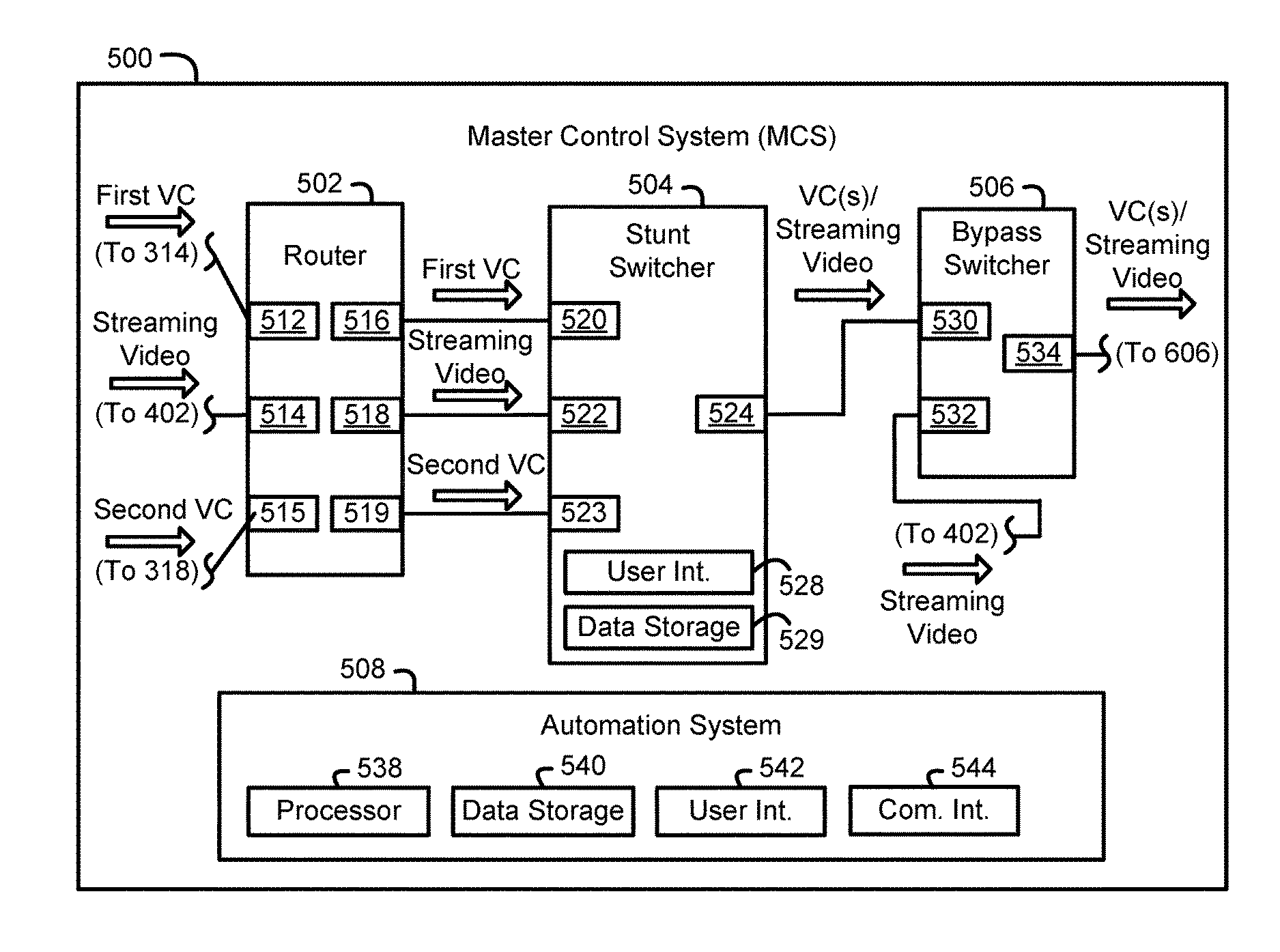

Disclosed herein are systems and methods for causing a stunt switcher to run a multi-video-source digital-video effect (DVE). An example method involves (i) selecting a first log-entry from a traffic log, wherein the first log-entry corresponds to a first video-component (VC) and a first start-time; (ii) selecting a second log-entry from the traffic log, wherein the second log-entry corresponds to a multi-video-source DVE, and a second start-time; (iii) causing the first VC to start being channeled through the stunt switcher proximate the first start-time; (iv) making a determination that a threshold time-period remains before the second start-time; and (v) responsive to making the determination, (a) causing a second VC to start being sent to the stunt switcher, and (b) causing the stunt switcher to run the multi-video-source DVE, thereby causing the stunt switcher to output a combined video, wherein the combined video includes the first VC and the second VC.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- H04N Class
- 18761 Applications Filed
- 14708 Patents Issued To-Date
- 78.40 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H04N Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 30, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 30, 2029 |
