Image reading device, image forming apparatus, and image reading method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 30, 2018
Issued Date -
N/A
app pub date -
Feb 12, 2016
filing date -
Sep 16, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

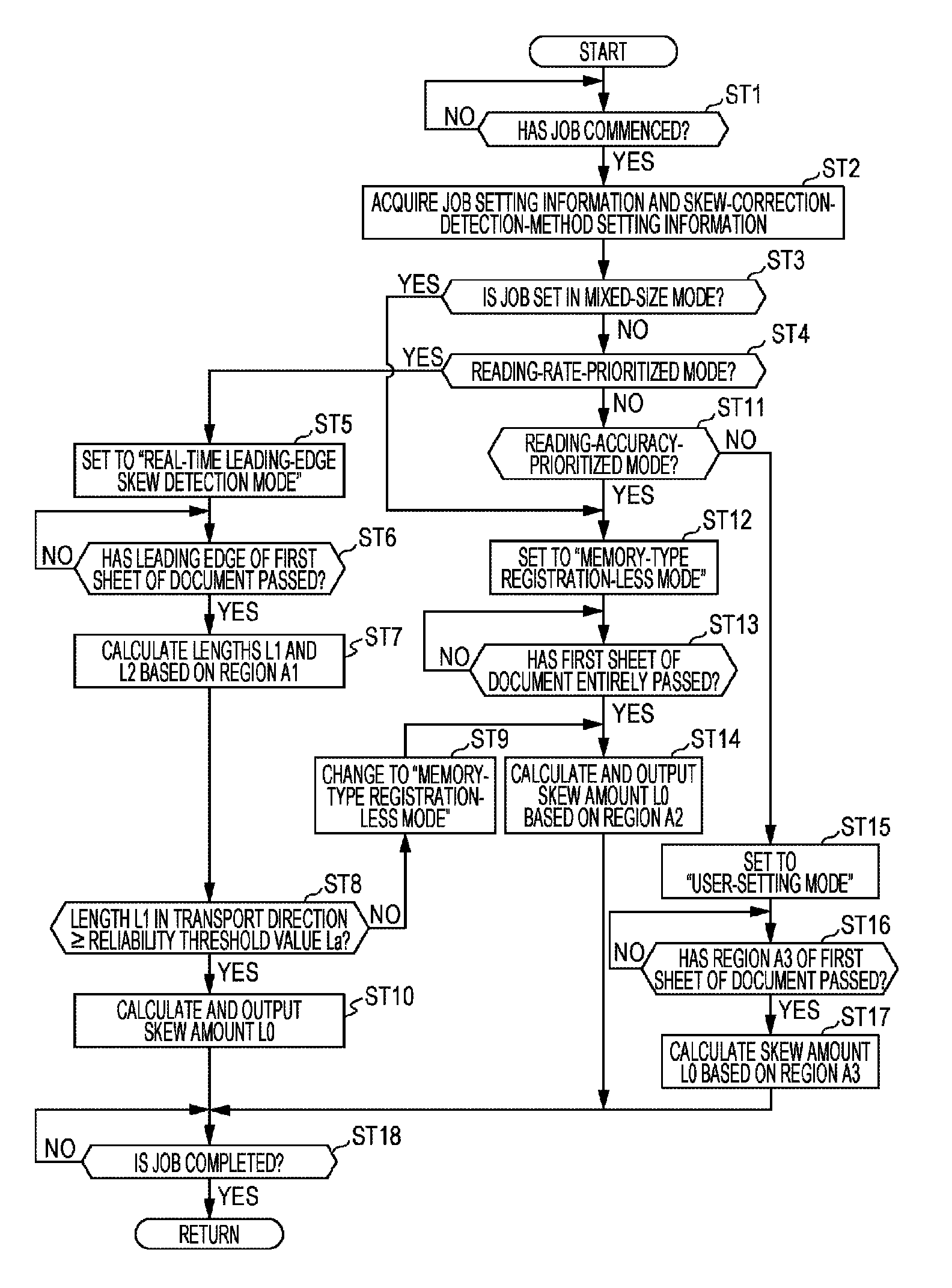

An image reading device includes a reading member and a skew detector. The reading member reads an image of a passing document at a read position preset in a document transport path. The skew detector detects a skew of the document by selecting one of a first skew detection mode and a second skew detection mode based on information that specifies a method for detecting the skew of the document. The first skew detection mode is a mode in which the skew of the document relative to a transport direction is detected based on an image of a leading-edge section, in the transport direction, read by the reading member. The second skew detection mode is a mode in which the skew of the document relative to the transport direction is detected based on an entire image read by the reading member.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- H04N Class
- 18761 Applications Filed
- 14708 Patents Issued To-Date
- 78.40 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H04N Class
- 27.70 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 30, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 30, 2029 |
