Image reader and image forming apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 30, 2018
Issued Date -
N/A
app pub date -
Jul 21, 2016
filing date -
Mar 14, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

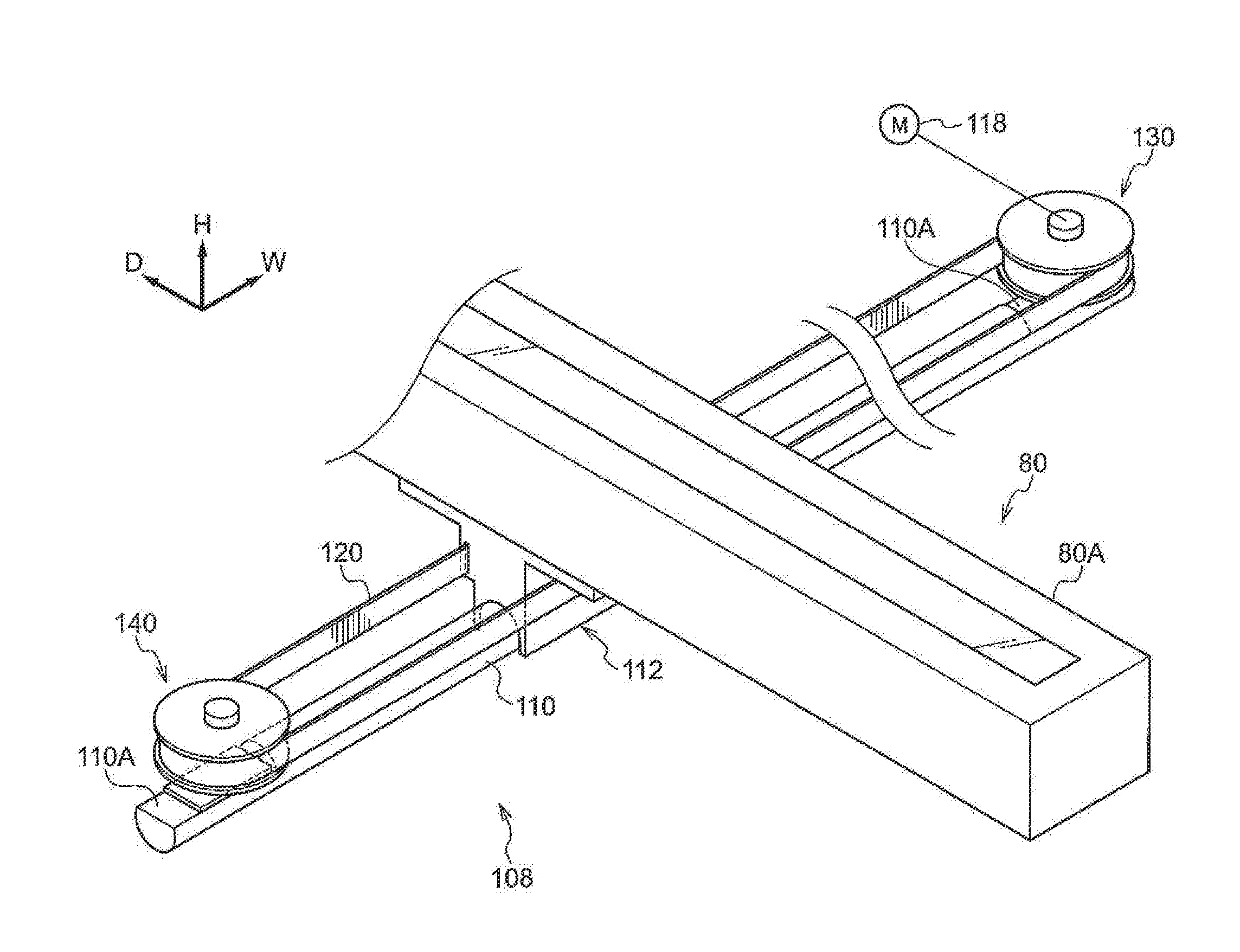

Provided is an image reader including a transparent plate that supports an original document on which an image is recorded, a reading member that is disposed inside a housing and reads an image of the original document supported by the transparent plate while moving, a guide member that extends in a movement direction of the reading member and guides the moving reading member, and an endless belt that is wound around a driving pulley that performs rotational driving and a driven pulley that is driven to rotate, the endless belt being rotated around the driving pulley and the driven pulley to move the reading member guided by the guide member, wherein at least one of the driving pulley and the driven pulley is attached to the guide member.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H04N Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 30, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 30, 2029 |
