Device including single wire interface and data processing system including the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 30, 2018
Issued Date -
N/A
app pub date -
Aug 15, 2017
filing date -
Apr 2, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

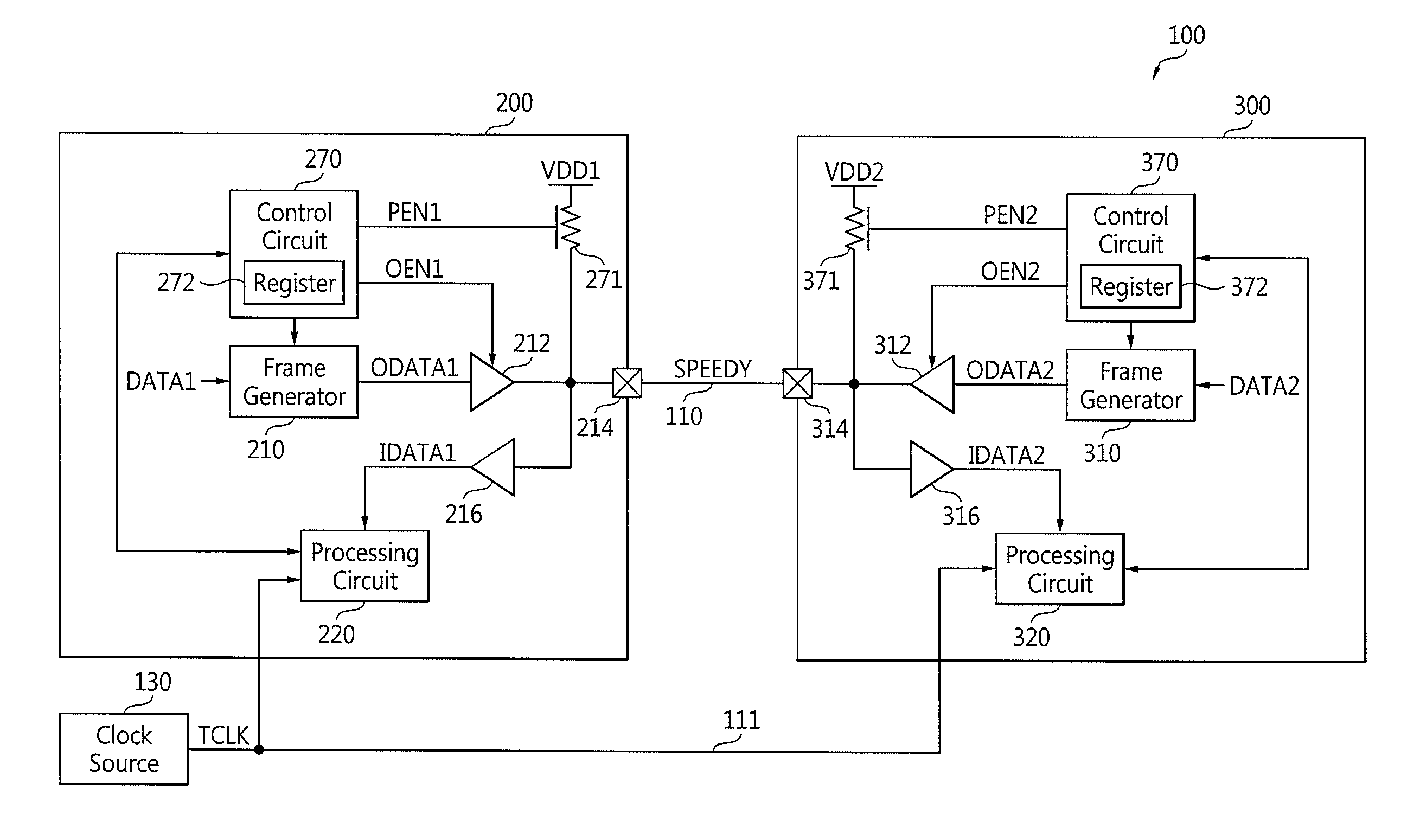

A data processing system includes a master device and a slave device. The master device includes a first single pad, a first control circuit, a first frame generator configured, and a first processing circuit. The slave device includes a second single pad, a second control circuit, a second frame generator, and a second processing circuit. A clock source is configured to provide a clock signal to the master device and the slave device. The master device communicates with the slave device through a single wire, the single wire being connected between the first single pad and the second single pad, wherein the single wire is bidirectional. A first frame is transmitted from the master device to the slave device, and a second frame is transmitted from the slave device to the master device.
