Method and apparatus for transmitting receipt confirmation reply in wireless communication system

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 9882697
APP PUB NO 20150358137A1
SERIAL NO

14759355

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

One embodiment of the present invention relates to a method for user equipment transmitting an uplink receipt confirmation reply in a wireless communication system, comprising the steps of: receiving a downlink signal from subframe n; and transmitting a receipt confirmation reply with respect to the downlink signal from the kth subframe from the subframe from which the downlink signal is received, wherein resource for the receipt confirmation reply from the kth subframe is allocated with priority for subframes in a first group common to downlink subframes required to transmit the receipt confirmation reply from the kth subframe according to a first timeline, and downlink subframes required to transmit the receipt confirmation reply from the kth subframe according to a second timeline.

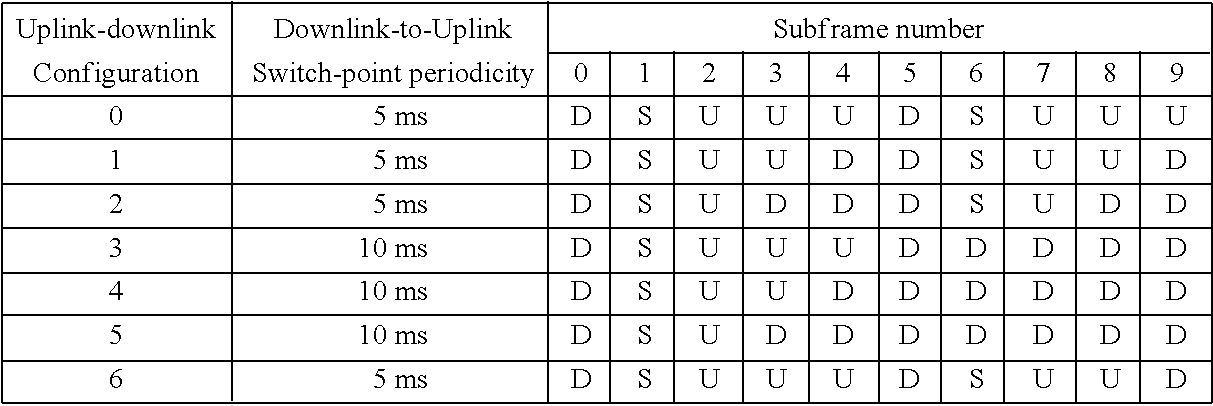

Loading the Abstract Image... loading....

First Claim

See full text

Family

Loading Family data... loading....

Patent Owner(s)

  • LG ELECTRONICS INC.

International Classification(s)

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
Chae, Hyukjin Seoul, KR 660 5044
Lee, Seungmin Seoul, KR 1498 11078
Seo, Hanbyul Seoul, KR 2032 25888

Cited Art Landscape

Load Citation

Patent Citation Ranking

Forward Cite Landscape

Load Citation

Maintenance Fees

Fee Large entity fee small entity fee micro entity fee due date
7.5 Year Payment $3600.00 $1800.00 $900.00 Jul 30, 2025
11.5 Year Payment $7400.00 $3700.00 $1850.00 Jul 30, 2029
Fee Large entity fee small entity fee micro entity fee
Surcharge - 7.5 year - Late payment within 6 months $160.00 $80.00 $40.00
Surcharge - 11.5 year - Late payment within 6 months $160.00 $80.00 $40.00
Surcharge after expiration - Late payment is unavoidable $700.00 $350.00 $175.00
Surcharge after expiration - Late payment is unintentional $1,640.00 $820.00 $410.00
