Receiver, sender, method for retrieving an additional datum from a signal and method for transmitting a datum and an additional datum in a signal
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 30, 2018
Issued Date -
N/A
app pub date -
Nov 5, 2015
filing date -
Nov 19, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

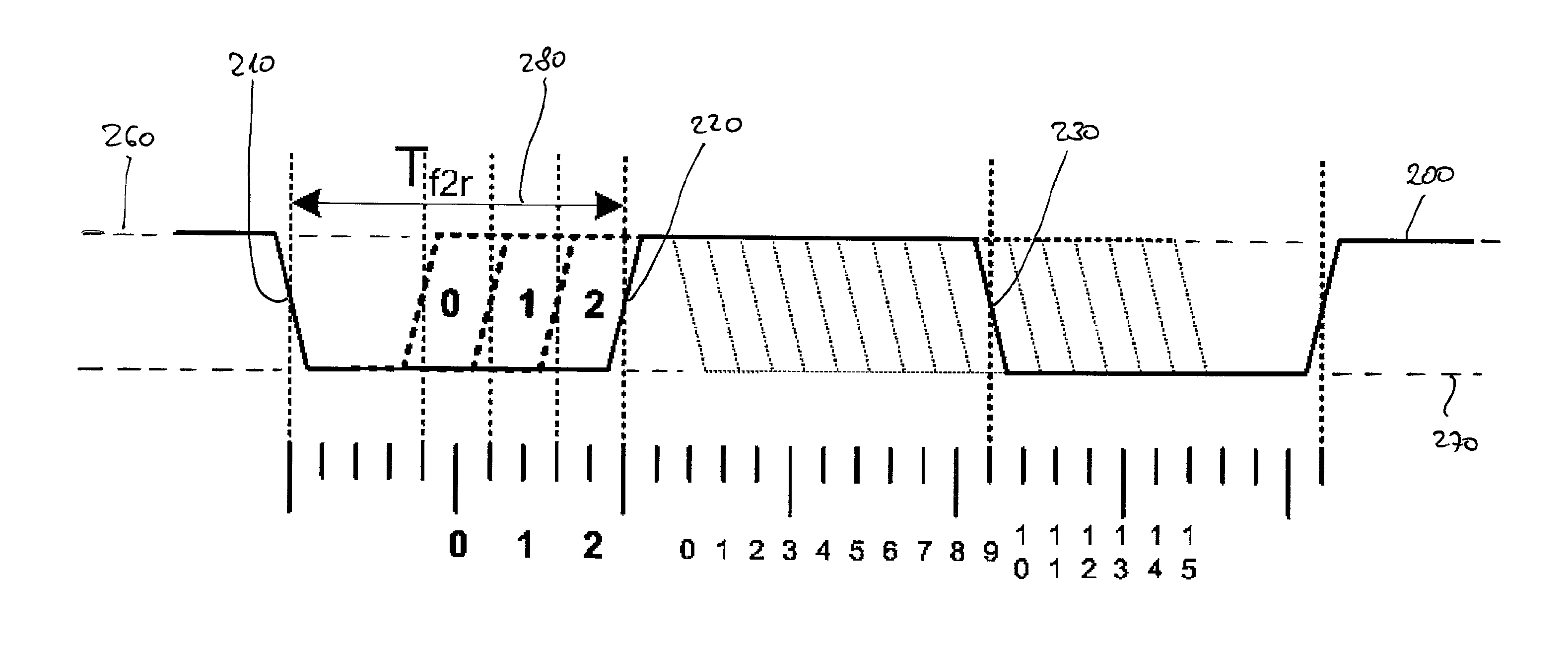

A receiver includes a receiver circuit to receive a first transition in a first direction, a second transition in a second, different direction after the first transition and a third transition in the first transition after the second transition of a signal. A first time period between the first and third transitions is indicative of a datum to be received. The receiver circuit is also configured to determine a second time period between the first transition and a second transition and to determine an additional datum to be received based at least on the determined second time period between the first and second transitions. Using the determined second time period allows for more information to be received in a reliable manner.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- H03M Class
- 19 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 30, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 30, 2029 |
