Doherty-Chireix combined amplifier
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 30, 2018
Grant Date -
Dec 28, 2017
app pub date -
Jun 28, 2016
filing date -
Jun 28, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

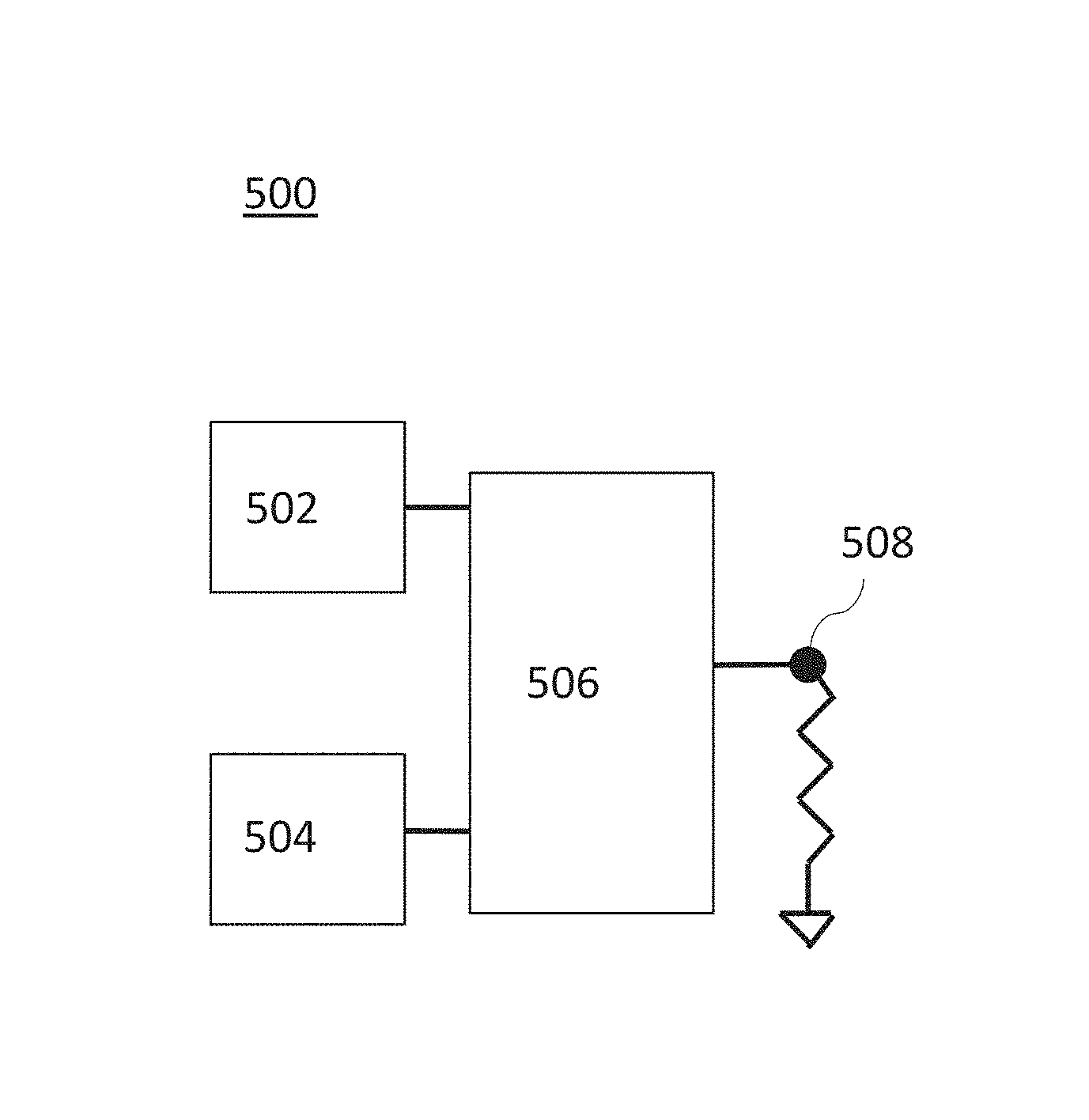

An amplifier that is configured to amplify an RF signal includes a power combiner circuit. The power combiner circuit includes a first branch connected between a first RF input port and a summing node and a second branch connected between a second RF input port and the summing node. Each of the first and second branches includes an impedance inverter. The Chireix combiner is configured to present a Chireix load modulated impedance response to the first and second RF input ports. The power combiner circuit further includes compensation elements being configured to at least partially compensate for a reactance of the Chireix combiner circuit in a Doherty amplifier mode in which a signal is applied to the first RF input port and the second RF input port is electrically open.
