Voltage generators and systems
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 30, 2018
Issued Date -
N/A
app pub date -
Dec 10, 2015
filing date -
Jul 21, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

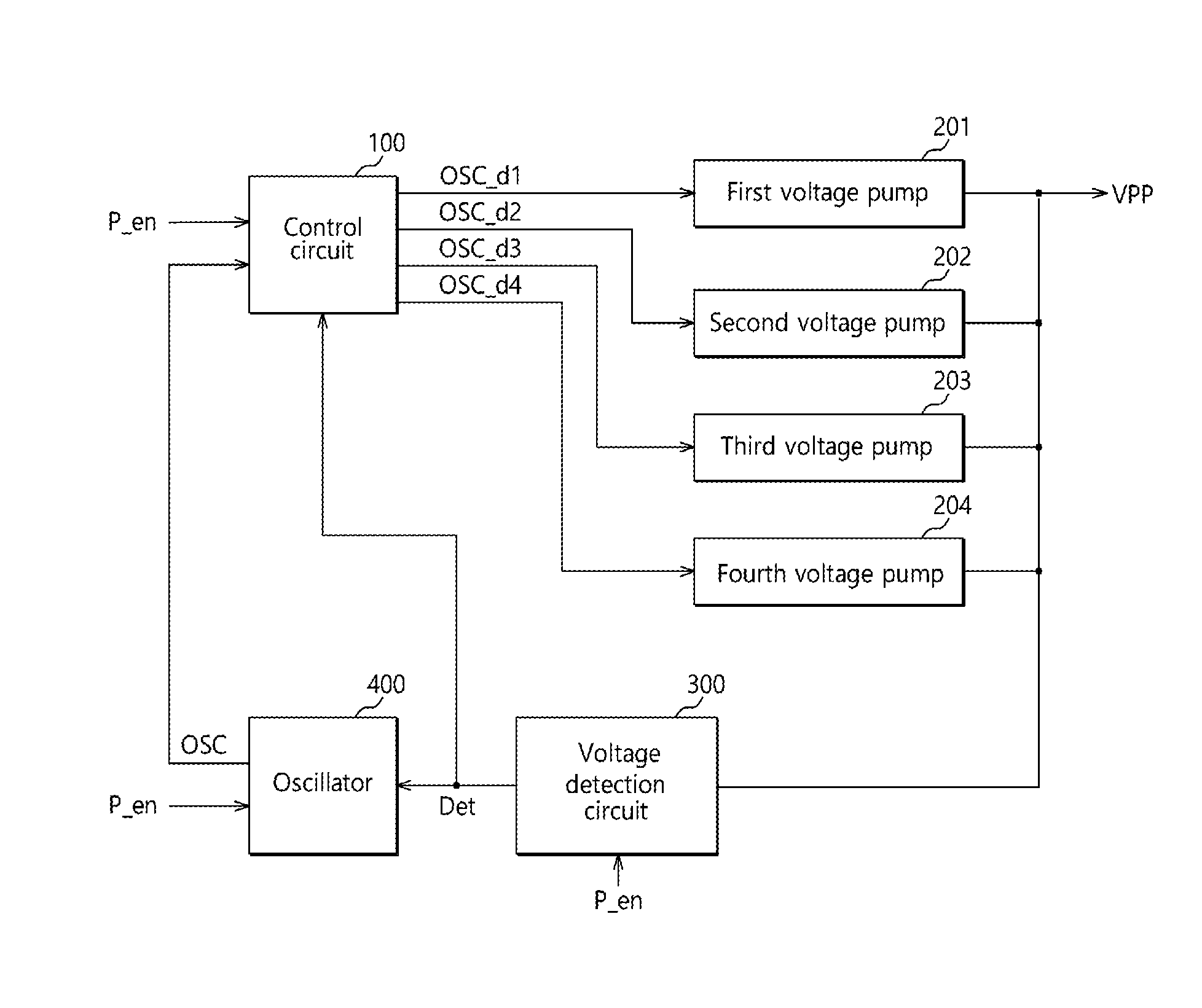

In one example, a voltage generator includes a plurality of voltage pumps, a voltage detection circuit, an oscillator, and a control circuit. The plurality of voltage pumps are configured to perform voltage pumping operations in a sequence and output a pumping voltage. The voltage detection circuit is configured to detect a voltage level of the pumping voltage and output a detection signal. The control circuit is configured to output, in response to the detection signal, a plurality of divided oscillator signals based on an oscillator signal of the oscillator, to enable a different one of the voltage pumps to begin each sequence of voltage pumping operations each time the pumping voltage is less than a threshold voltage.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| KR | A | KR20170012623 | Jul 21, 2015 |
| CN | B | CN106371493 | Feb 04, 2016 |
| US | B2 | US10122268 | Dec 20, 2017 |
International Classification(s)
- 2015 Application Filing Year
- H02M Class
- 2758 Applications Filed
- 2286 Patents Issued To-Date
- 82.89 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H02M Class
- 19.31 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 30, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 30, 2029 |
