Power conversion device and controlling method thereof
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 30, 2018
Grant Date -
Jul 21, 2016
app pub date -
Nov 2, 2015
filing date -
Jan 16, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

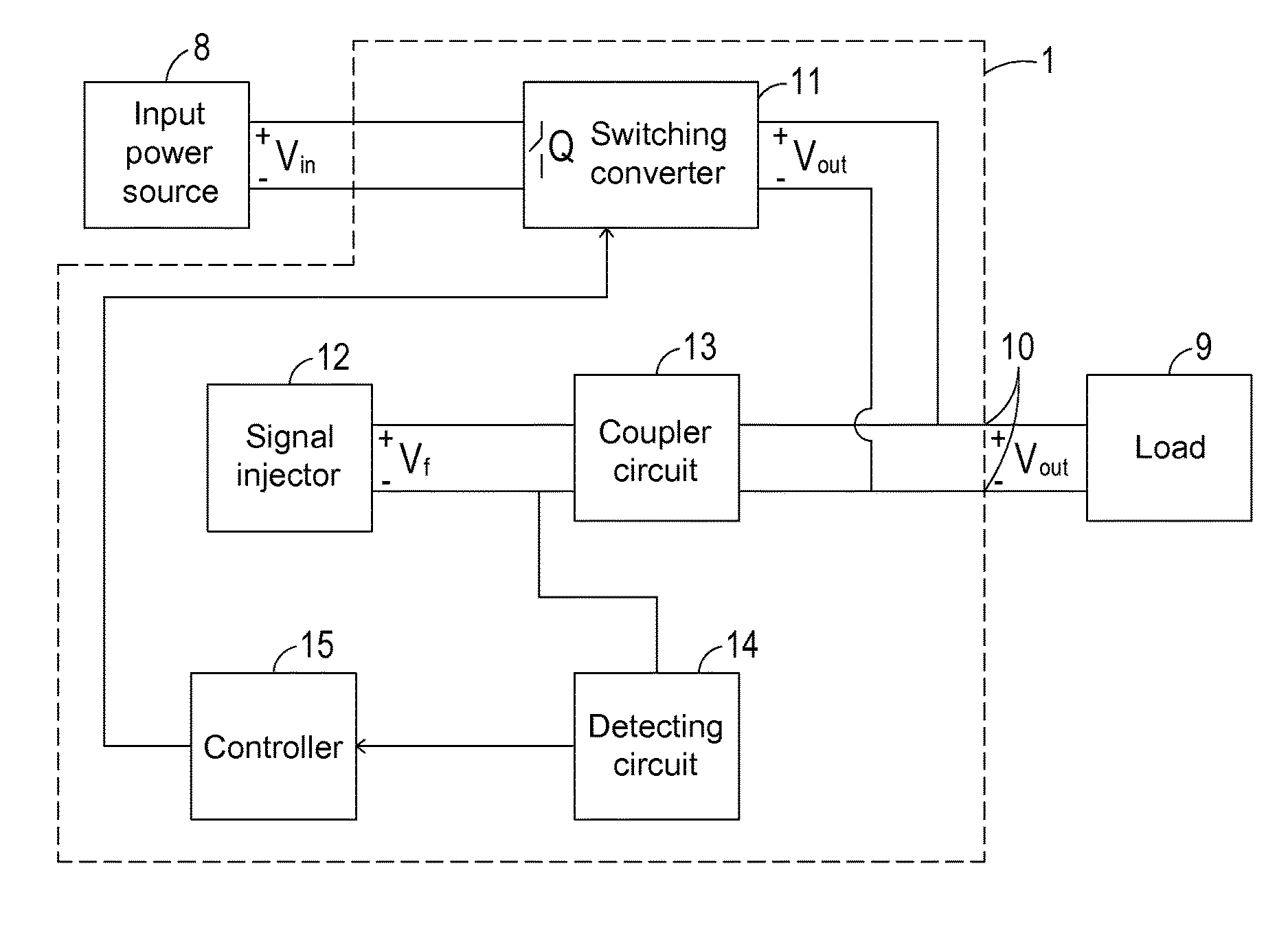

A power conversion device includes a power supplying terminal, a switching converter, a signal injector, a coupler circuit, a detecting circuit and a controller. After an input voltage is converted into an output voltage by the switching converter, the output voltage is outputted to a load through the power supplying terminal. The signal injector provides a signal. When the load is connected with the power supplying terminal, an operating parameter at the first end of the coupler circuit has a first variation value in response to the signal. When the load is disconnected from the power supplying terminal, the operating parameter at the first end of the coupler circuit has a second variation value in response to the signal. According to the detecting result of the detecting circuit, a switching action of the switching element is selectively enabled or disabled by the controller.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- H02M Class
- 2758 Applications Filed
- 2286 Patents Issued To-Date
- 82.89 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H02M Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 30, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 30, 2029 |
