Step motor and system for driving step motor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 30, 2018
Issued Date -
N/A
app pub date -
Sep 8, 2015
filing date -
Sep 15, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

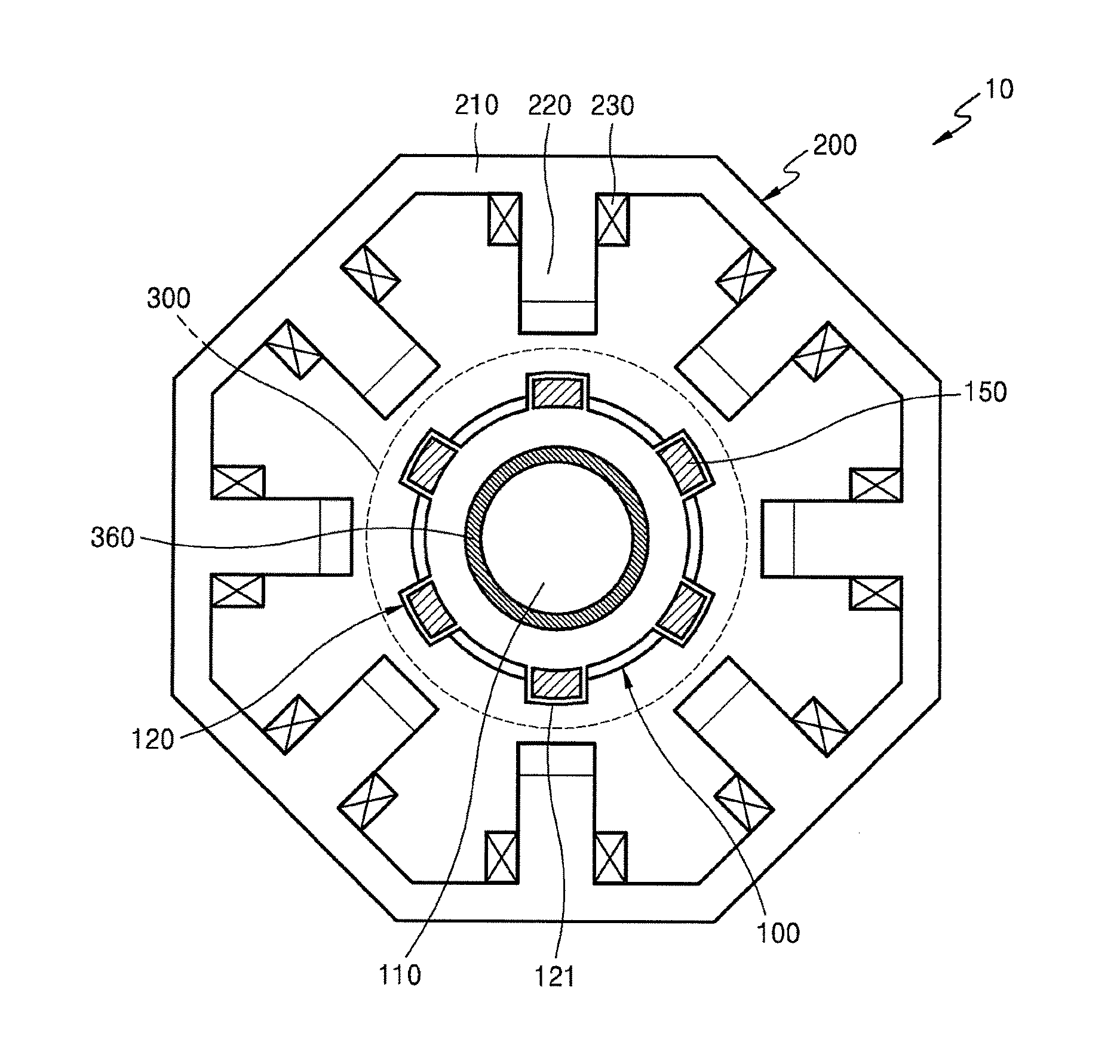

A step motor includes a plurality of stator cores. Each of the stator cores have a coil unit coiled therearound. The step motor includes a rotor that includes a rotation shaft and a plurality of permanent magnets and is configured to rotate by magnetic interaction between the stator cores and the permanent magnets. The step motor also includes a plurality of conducting parts on one cross-sectional surface of the rotor. The step motor further includes a printed circuit board (PCB) including electric elements that are arranged at certain positions and are disposed to face the conducting parts. The conducting parts and the electric elements are configured to electrically or magnetically interact as the rotor rotates to change electrical signals generated by the electric elements.
