Power tool having circuit board
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 30, 2018
Issued Date -
N/A
app pub date -
Oct 2, 2014
filing date -
Jul 14, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

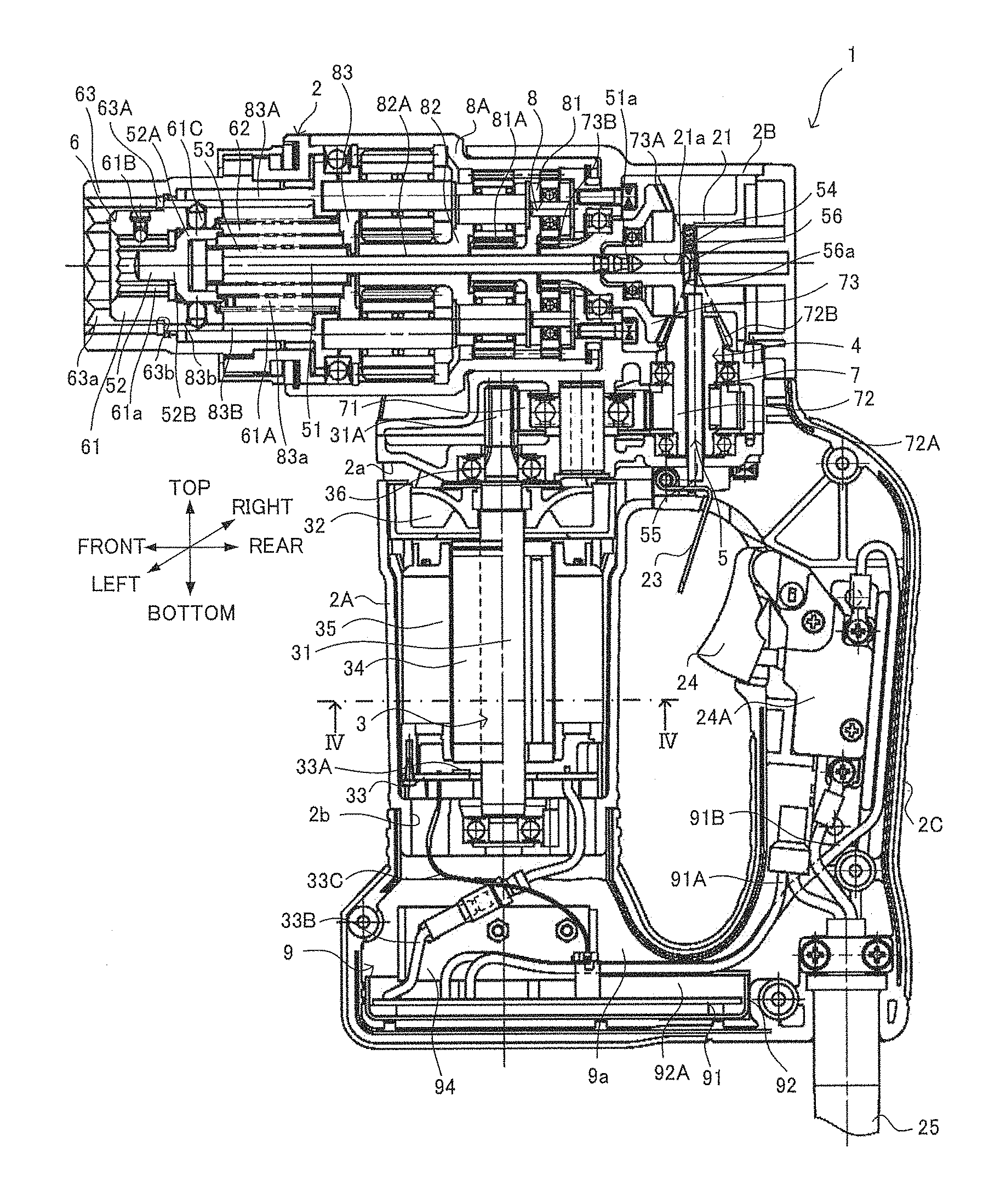

A power tool includes a housing, a motor, an output unit, and a circuit board unit. The motor is accommodated in the housing and has a rotational axis extending in a top-bottom direction. The output unit is disposed above the motor and extends in a front-rear direction. A power cable is configured to be connected to a power source and is connected to the circuit board unit. The circuit board unit is accommodated in the housing. The circuit board unit comprises a switching element for driving the motor, and a rectifying device configured to rectify an alternating current from the power source to a direct current. The circuit board unit is disposed below the motor and extends in the front-rear direction in the housing.
