Externally referenced wavelength-locking technique for hybrid lasers
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 30, 2018
Issued Date -
N/A
app pub date -
Jan 12, 2017
filing date -
Jan 12, 2017
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

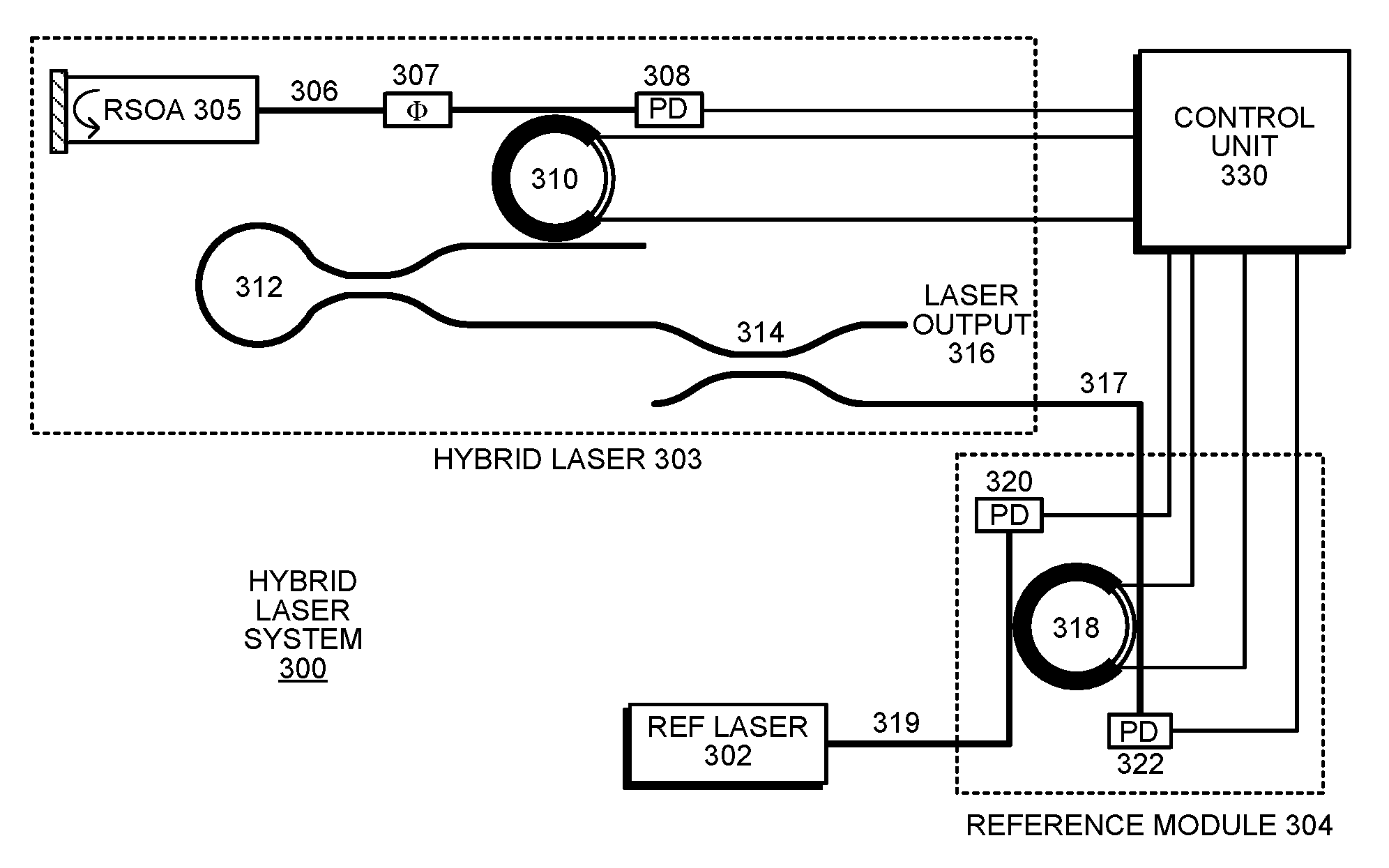

The disclosed embodiments relate to a system that locks a wavelength of a hybrid laser to a wavelength of a reference laser, wherein a lasing cavity of the hybrid laser includes a reflective gain medium (RGM) comprising an optical gain material coupled with an associated reflector, a phase tuner, a laser ring filter and a silicon mirror. During operation, while the hybrid laser is turned off, the system tunes a reference ring filter to the wavelength of the reference laser. Next, the system turns on the hybrid laser. The system then tunes the laser ring filter in the hybrid laser to the reference ring filter. Finally, the system adjusts the phase tuner in the hybrid laser to align a lasing cavity mode of the hybrid laser with the tuned laser ring filter.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- H01S Class
- 1389 Applications Filed
- 1119 Patents Issued To-Date
- 80.57 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- H01S Class
- 28.57 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 30, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 30, 2029 |
