Laser device, and exposure device and inspection device provided with the laser device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 30, 2018
Issued Date -
N/A
app pub date -
Apr 25, 2016
filing date -
Oct 25, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

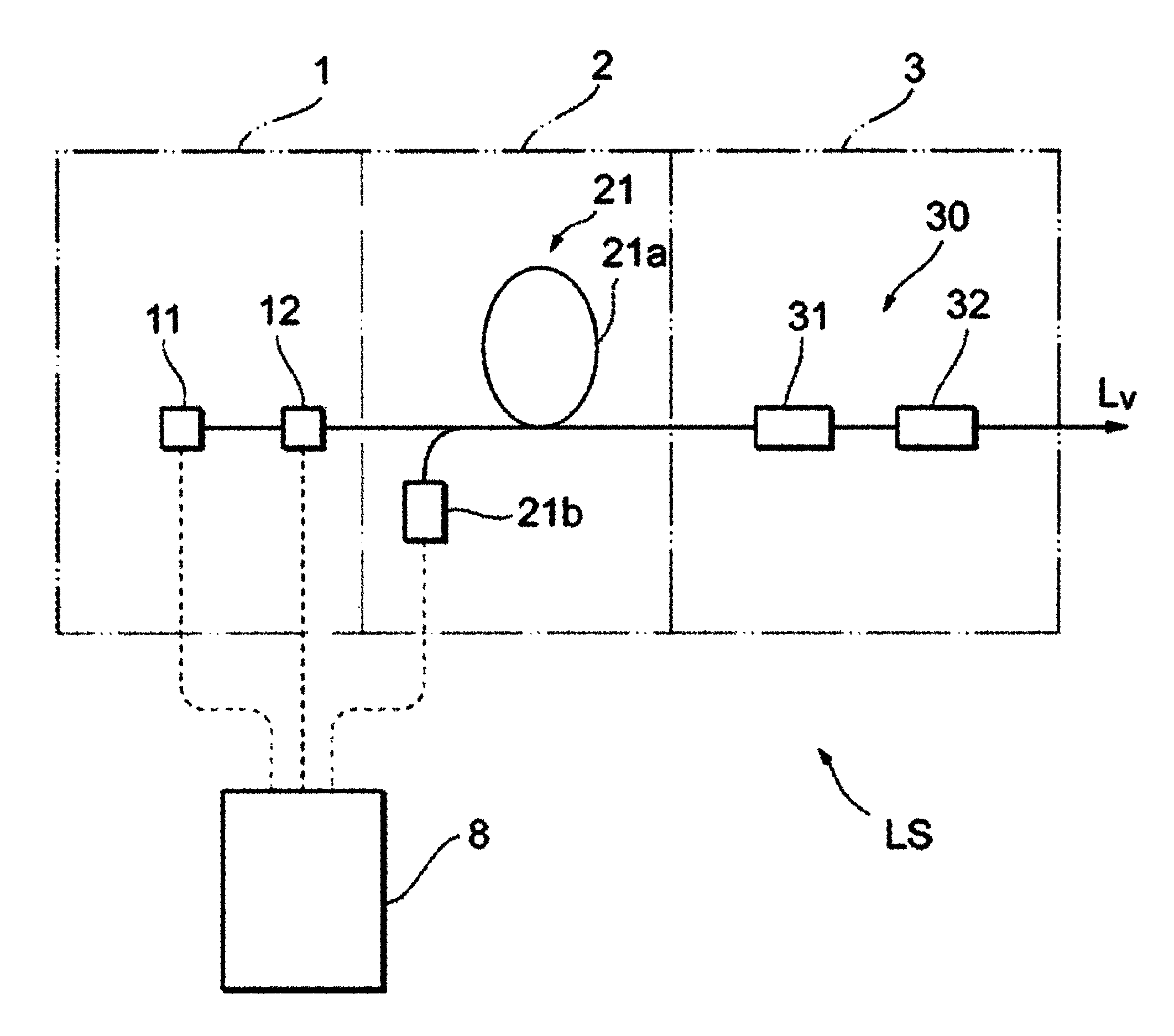

A laser device includes: a laser light source which generates a laser light in a pulse waveform of preset predetermined frequency; intensity modulator which is driven with a transmittance waveform wherein transmittance changes at either the predetermined frequency or an integer-multiple frequency thereof and which extracts and outputs the laser light which is outputted from the laser light source; control unit which controls an operation of the intensity modulator; an amplifier which amplifies the laser light which is outputted from the intensity modulator; and a wavelength conversion optical element which converts a wavelength of the laser light which is amplified by the amplifier, wherein the control unit changes relative timing of the transmittance waveform with respect to the pulse waveform, thereby changing the pulse waveform of the laser light which is emitted from the intensity modulator, to output a pulse light of predetermined waveform from the wavelength conversion optical element.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H01S Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 30, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 30, 2029 |
