Cylindrical antenna using near zero index metamaterial
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 30, 2018
Issued Date -
N/A
app pub date -
Jul 24, 2012
filing date -
Jul 24, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

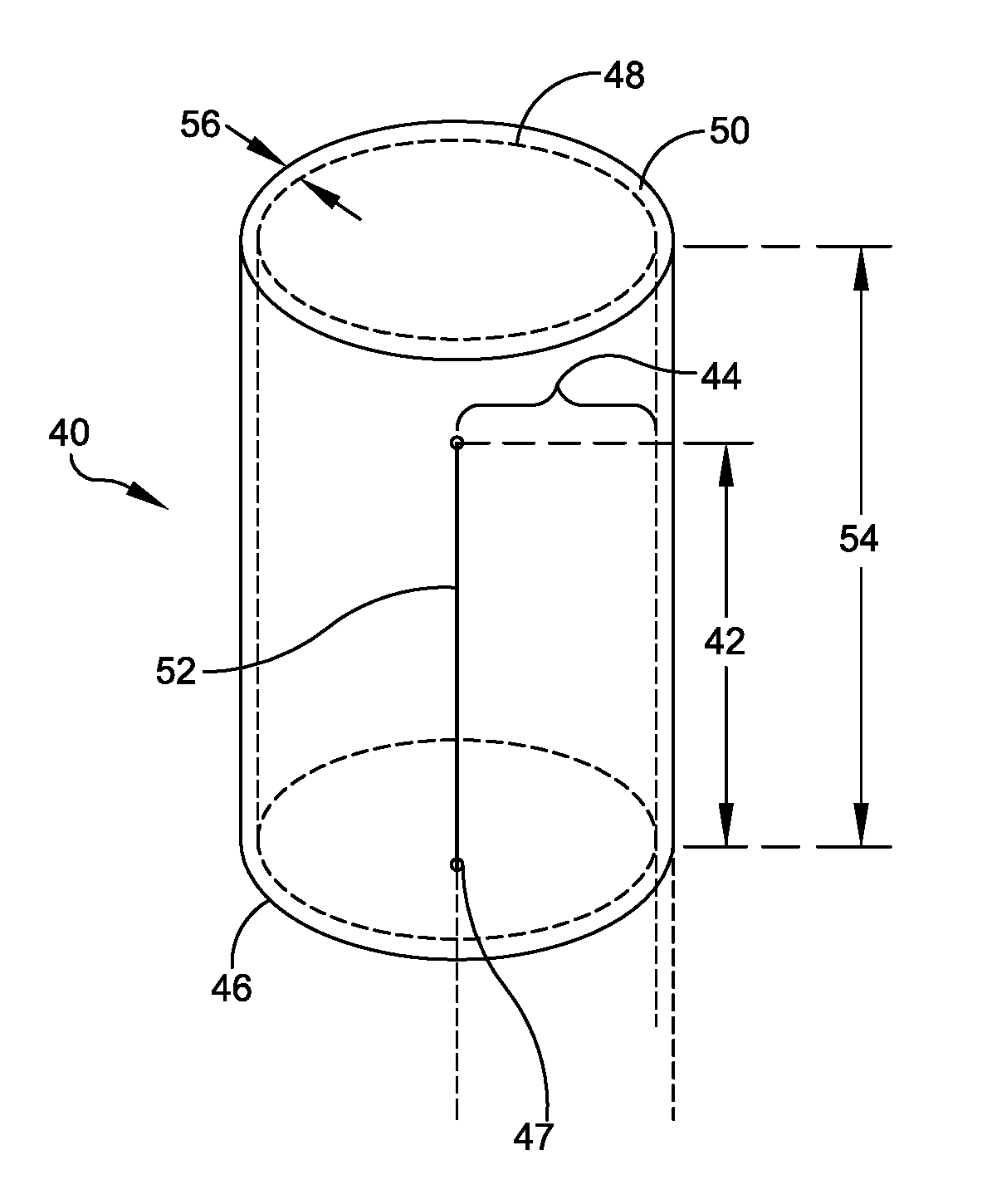

A cylindrical antenna includes: a hollow cylinder having a height, an inner radius b, an axis, a cylindrical surface, and two ends; a ground plane on one end of the cylinder; an antenna wire extending from a center of the cylinder at one end on a ground plane along the axis and ending below the height of the cylinder; and a layer of near zero index (NZI) metamaterial surrounding and adjacent to the cylindrical surface.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- H01Q Class
- 17.89 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 30, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 30, 2029 |
