Electrochemical device, such as a microbattery or an electrochromic system, and fabrication method thereof
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 30, 2018
Issued Date -
N/A
app pub date -
Oct 22, 2015
filing date -
Oct 22, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

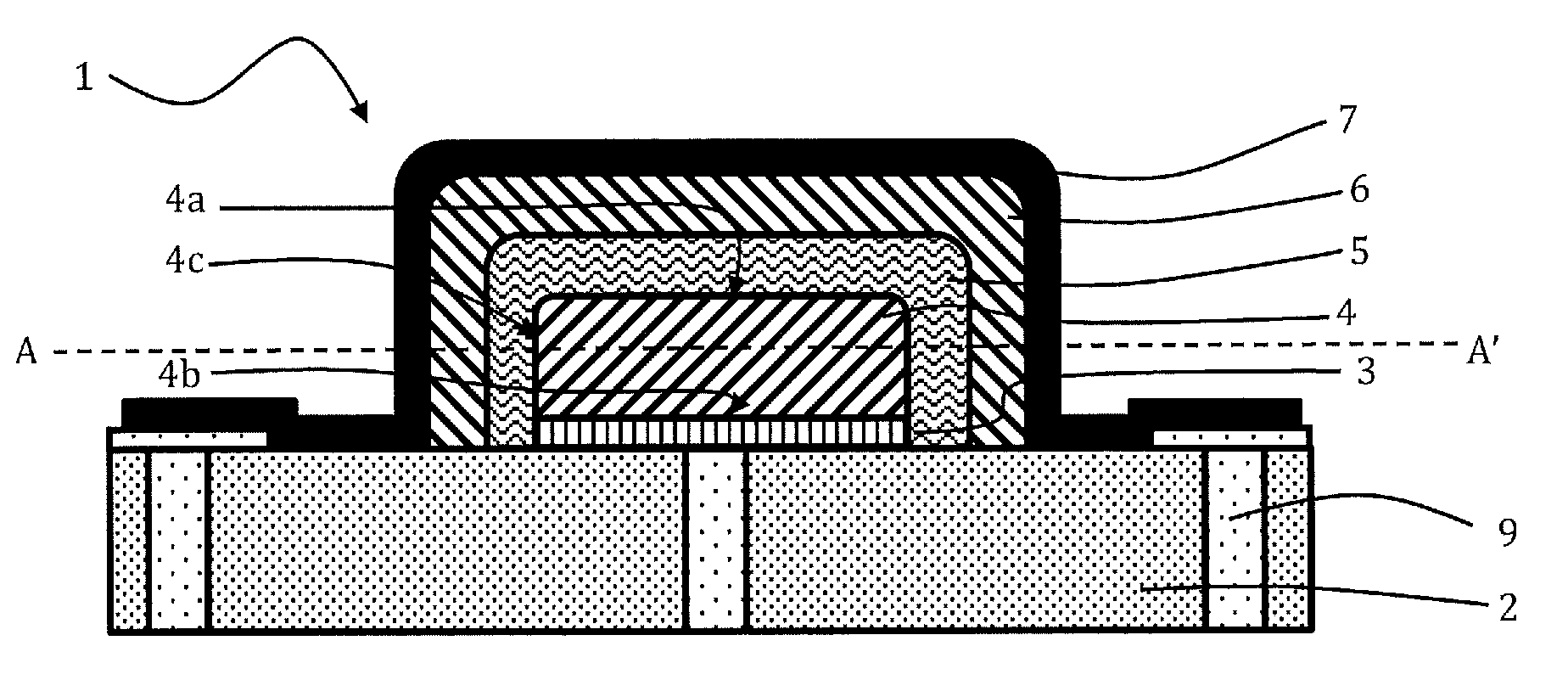

An electrochemical device including a stack of solid thin layers formed on a substrate, the stack successively including, a first current collector covering a part of the substrate, first electrode defining a pattern having bottom surface, top surface and side walls, the bottom surface of the pattern covering at least part of the first current collector, electrolyte layer configured to cover at least the top surface and at least part of the side walls of the pattern of the first electrode, a second electrode totally covering the electrolyte layer, the thickness of the electrolyte layer arranged between the walls of the pattern of first electrode and the second electrode being substantially equal around the pattern to within 20%, a second current collector totally covering the second electrode, the second current collector and the second electrode being electrically insulated from the first current collector and from the first electrode.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H01M Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 30, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 30, 2029 |
