Method for producing a lithium microbattery
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 30, 2018
Issued Date -
N/A
app pub date -
Sep 16, 2014
filing date -
Sep 16, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

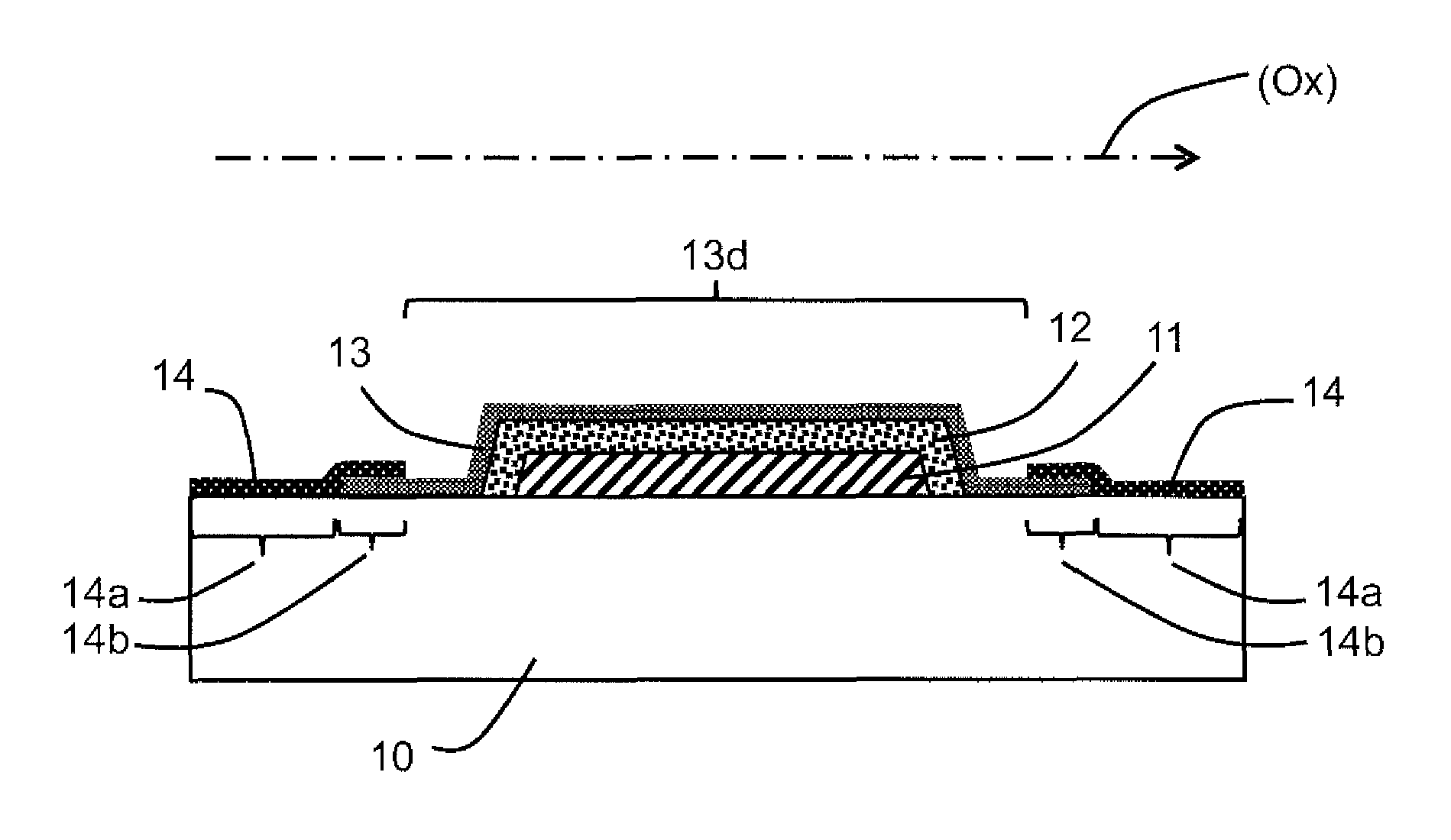

The fabrication method of a lithium microbattery provides for use of a substrate successively covered by: a cathode, a solid electrolyte, and a first electrically conducting layer made from a material configured to combine with the lithium atoms. The first layer is devoid of contact with the cathode. The method further includes formation of a second electrically conducting layer configured to form a diffusion barrier for the lithium atoms. The second layer is electrically connected to the first layer and leaves at least a part of the first layer uncovered, the part being facing the electrolyte. Electrochemical deposition of a lithium anode is then performed from germination from the first and second electrically conducting layers.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H01M Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 30, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 30, 2029 |
