Flexible screen and bend identifying method thereof, flexible display apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 30, 2018
Issued Date -
N/A
app pub date -
Jan 5, 2015
filing date -
Sep 24, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

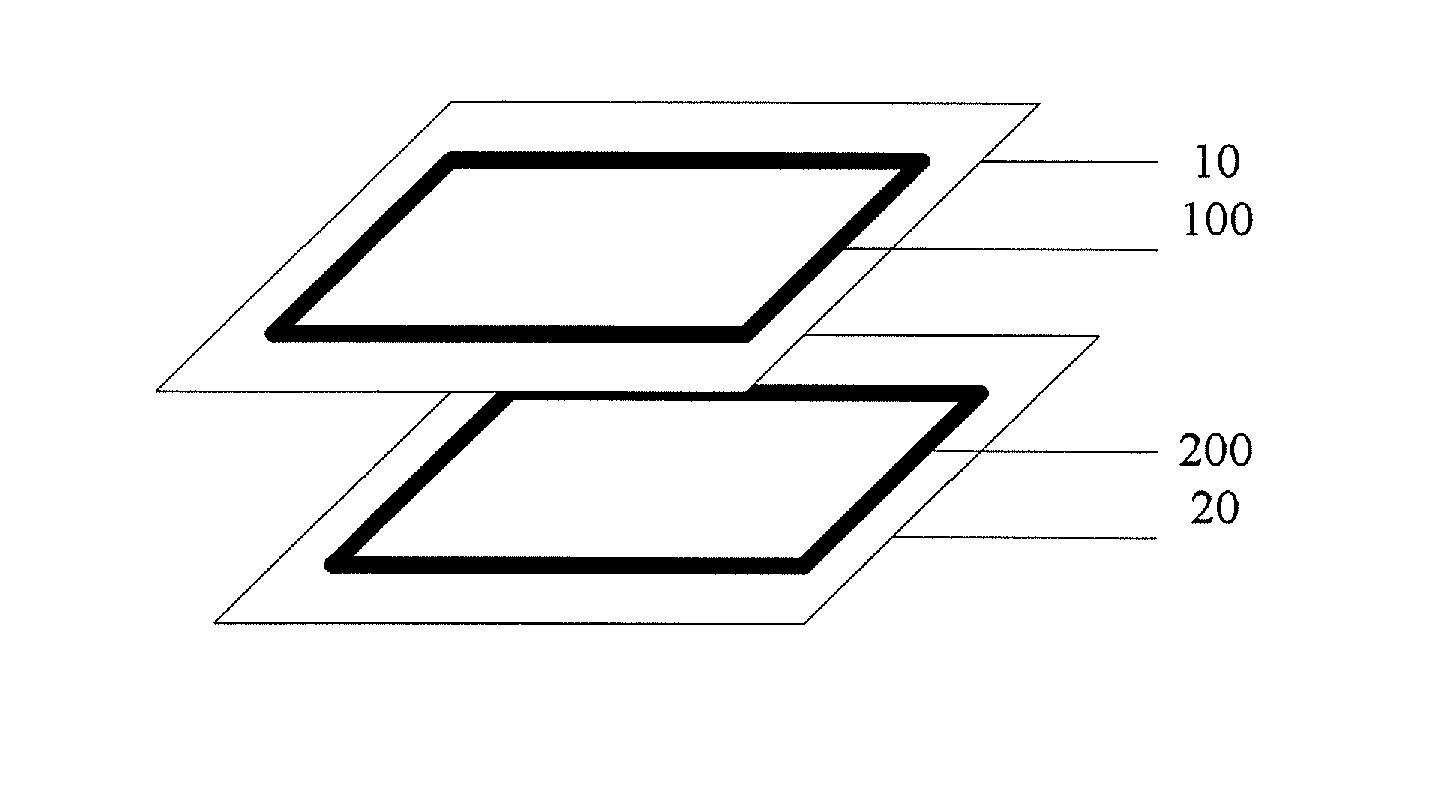

An embodiment of the present invention relates to the technical field of display. Particularly, there is provided a flexible screen and a bend identifying method thereof, as well as a flexible display apparatus. The flexible screen comprises a first flexible substrate and a second flexible substrate which are oppositely disposed; the flexible screen further comprises a first electrode which is disposed on one side close to the second flexible substrate of the first flexible substrate and a second electrode which is disposed on one side close to the first flexible substrate of the second flexible substrate, as well as a detection system connected with the first electrode or the second electrode; wherein the first electrode and the second electrode are configured to be in positional correspondence; in a case where the flexible screen is bent, the first electrode and the second electrode are electrically connected. The present invention is used for fabrication of a display apparatus. The present invention may be used for determining whether the flexible screen is excessively bent or flexed.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
- H01L:SEMICONDUCTOR DEVICES; ELECTRIC SOLID STATE DEVICE....
- G09G:ARRANGEMENTS OR CIRCUITS FOR CONTROL OF INDICATING....
- G06F:ELECTRIC DIGITAL DATA PROCESSING
- G01R:MEASURING ELECTRIC VARIABLES; MEASURING MAGNETIC V....
- G01B:MEASURING LENGTH, THICKNESS OR SIMILAR LINEAR DIME....
- G02F:DEVICES OR ARRANGEMENTS, THE OPTICAL OPERATION OF ....
- 2015 Application Filing Year
- H01L Class
- 25498 Applications Filed
- 22451 Patents Issued To-Date
- 88.06 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H01L Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 30, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 30, 2029 |
