Array substrate and method for manufacturing the same, and display device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 30, 2018
Issued Date -
N/A
app pub date -
Sep 26, 2014
filing date -
Mar 17, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

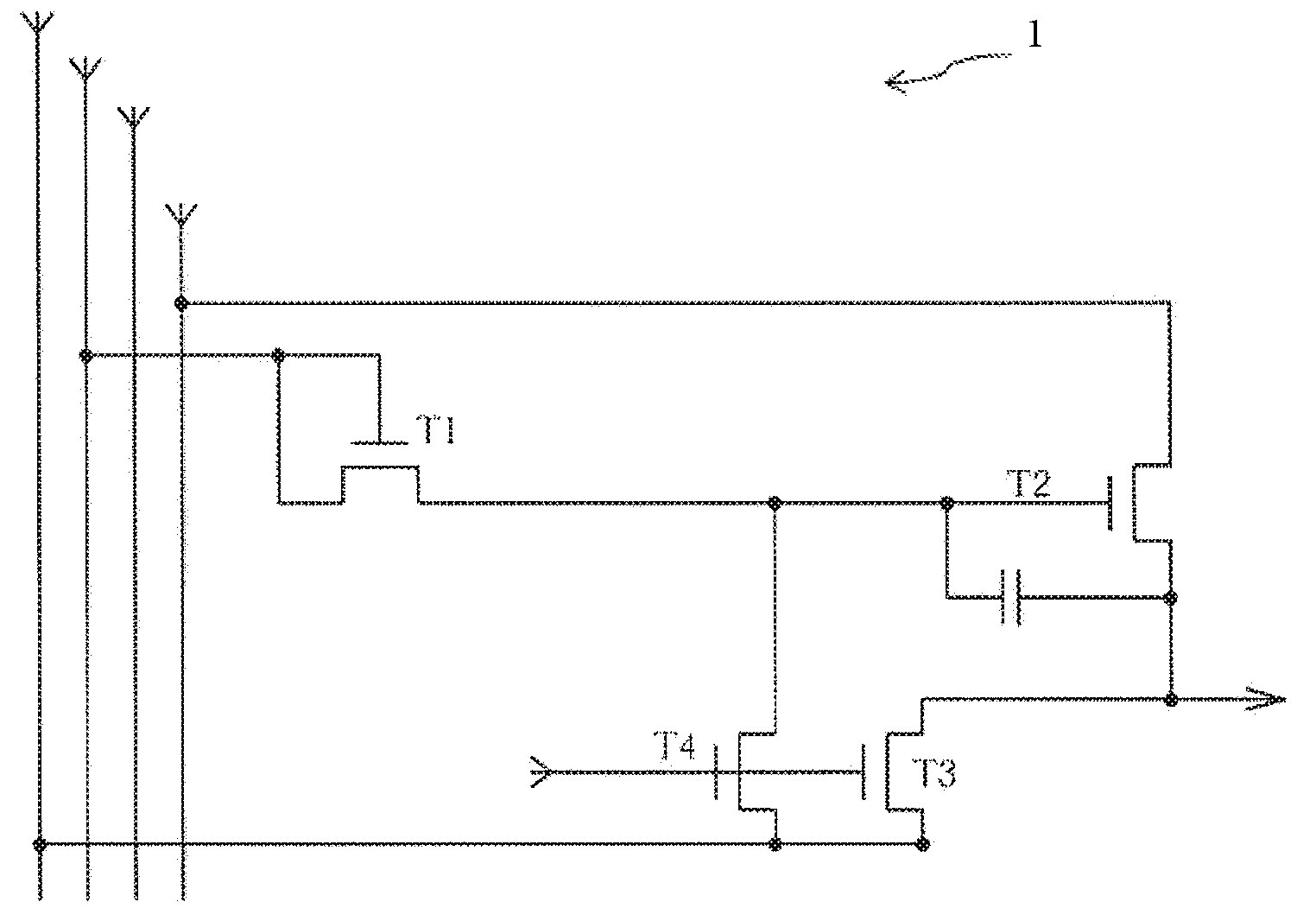

The invention provides a method for manufacturing an array substrate which comprises a gate driving circuit including a plurality of thin film transistors and connection gate lines each connected between gates of two adjacent thin film transistors, the method comprises steps of: step S1, forming a pattern including the gates of the thin film transistors and the connection gate lines on a base; step S2, forming a gate insulation layer above the pattern including the gates of the thin film transistors and the connection gate lines; step S3, forming a pattern including a gate line protecting layer on the gate insulation layer, wherein the gate line protecting layer is above the connection gate lines; and step S4, forming a pattern including the sources and drains of the thin film transistors. The invention also provides an array substrate which is manufactured by above method, and a display device comprising the same.
