Package-on-package structure with epoxy flux residue
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 30, 2018
Issued Date -
N/A
app pub date -
Aug 4, 2016
filing date -
May 31, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

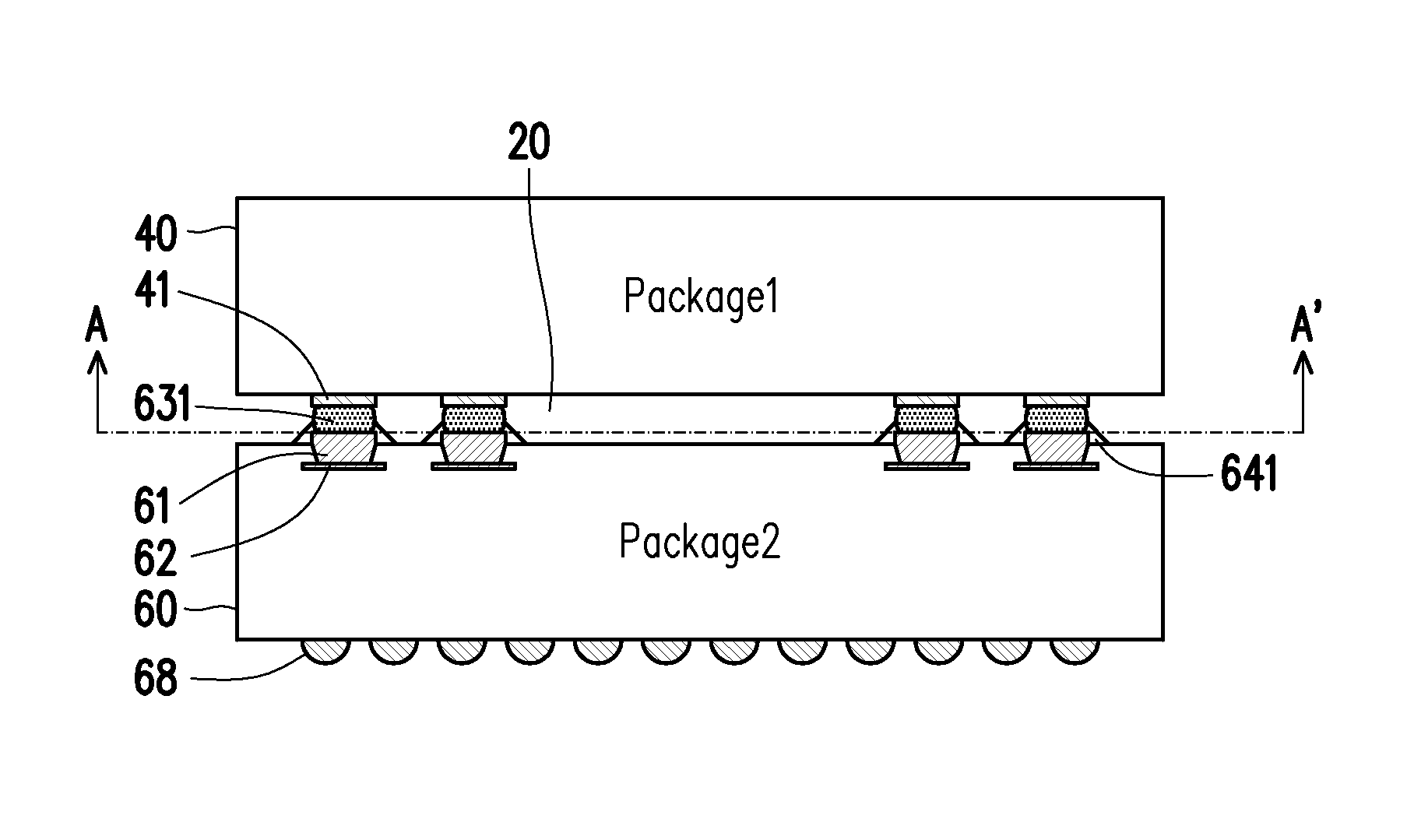

A structure includes a first package and a second package. The second package is coupled to the first package by one or more connectors. Epoxy flux residue is disposed around the connectors and in contact with the connectors. A method includes providing a first package having first connector pads and providing a second package having corresponding second connector pads. Solder paste is printed on each of the first connector pads. Epoxy flux is printed on each of the solder paste. The first and second connector pads are aligned and the packages are pressed together. The solder paste is reflowed to connect the first connector pads to the second connector pads while leaving an epoxy flux residue around each of the connections.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- H01L Class
- 27971 Applications Filed
- 23507 Patents Issued To-Date
- 84.05 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H01L Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 30, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 30, 2029 |
