Multi-reflecting mass spectrometer with high throughput
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 30, 2018
Issued Date -
N/A
app pub date -
Apr 23, 2014
filing date -
Apr 23, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

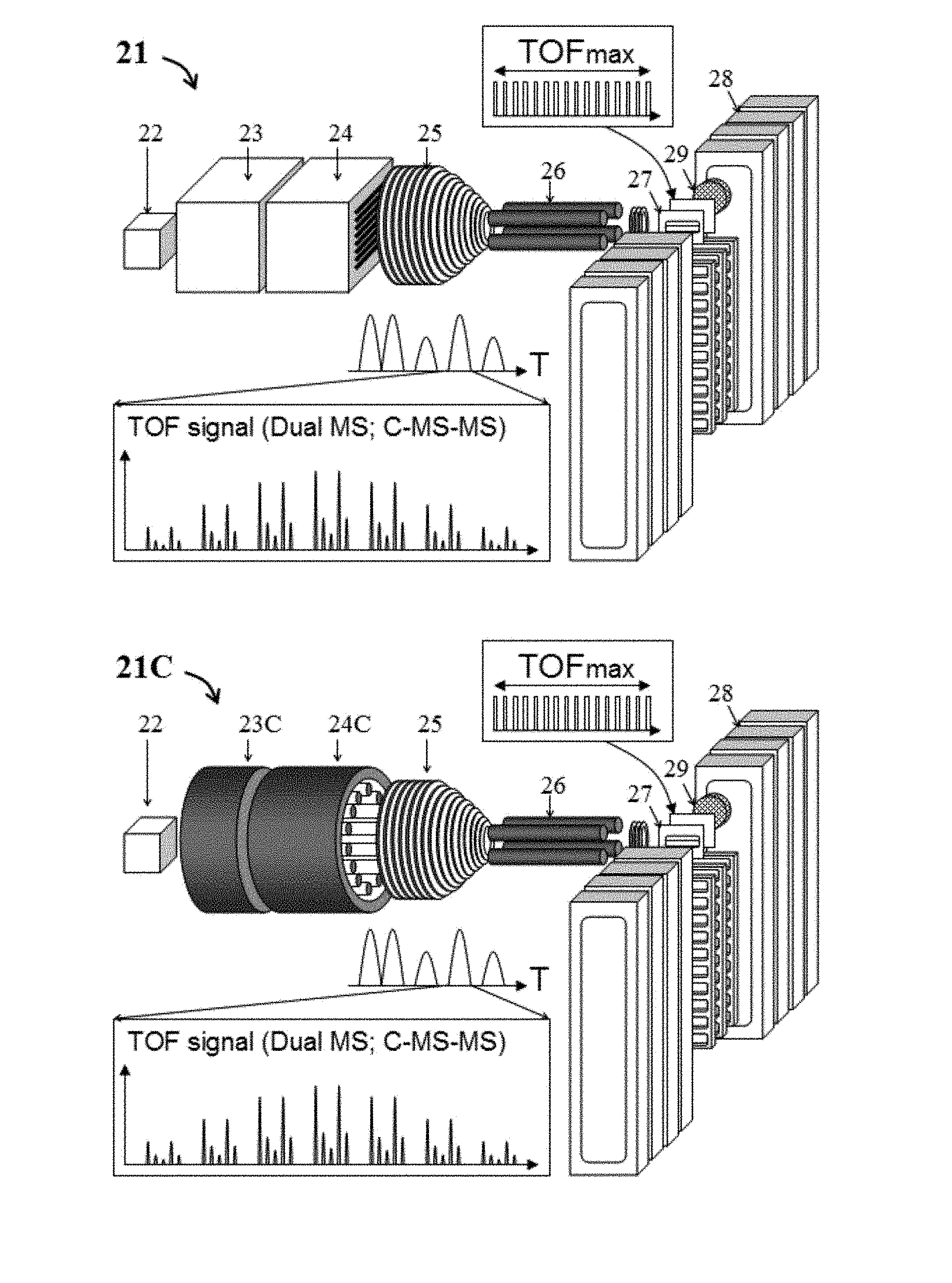

Method and embodiments are provided for tandem mass spectrometer designed for extremely large charge throughput up to 1E+10 ion/sec. In one operation mode, the initial ion flow with wide m/z range is time separated in a trap array. The array ejects ions with a narrower momentarily m/z range. Ion flow is collected and confined in a wide bore ion channel at a limited time spread. The ion flow with narrow m/z range is then analyzed in a multi-reflecting TOF at frequent and time-encoded operation of the orthogonal accelerator, thus forming multiple non overlapping spectral segments. In another mode, time separated ions are subjected to fragmentation for comprehensive, all-mass MS-MS analysis. The momentarily ion flow at MR-TOF entrance is characterized by lower spectral population which allows efficient decoding of overlapping spectra. Those modes are combined with conventional spectrometer operation to improve the dynamic range. To provide practical solution, there are proposed multiple novel components comprising trap arrays, wide bore confining channels, resistive multipole, so as long life TOF detector.
