Charged particle beam device and charged particle beam device control method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 30, 2018
Issued Date -
N/A
app pub date -
Oct 7, 2014
filing date -
Oct 8, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

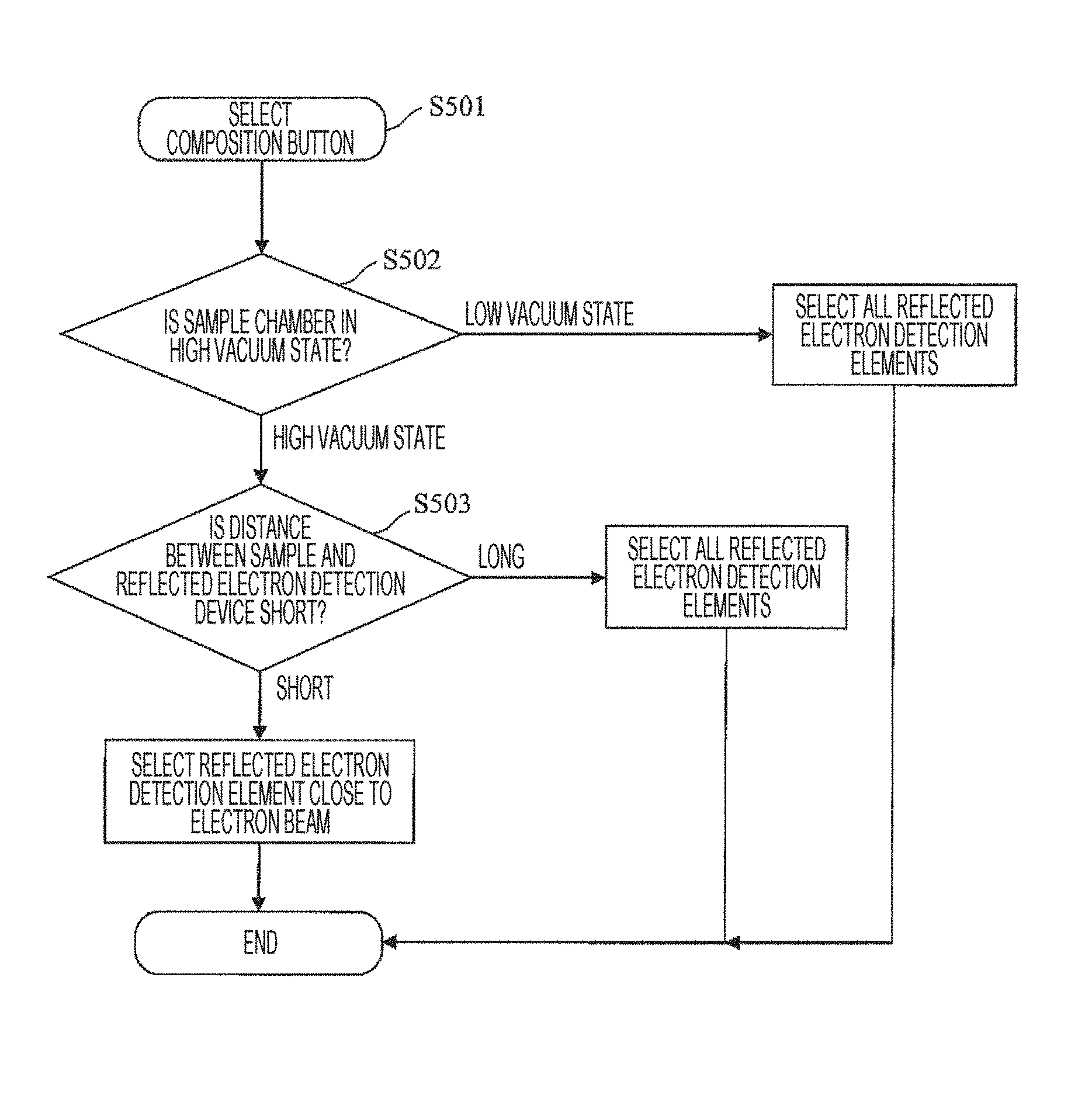

The objective of the present invention is to provide a charged particle beam device, wherein the positional relationship between reflected electron detection elements and a sample and the vacuum state of the sample surroundings are evaluated to select automatically a reflected electron detection element appropriate for acquiring an intended image. In this charged particle beam device, all the reflected electron detection elements are selected when the degree of vacuum inside the sample chamber is high and the sample is distant from the reflected electron detectors, while a reflected electron detection element appropriate for acquiring a compositional image or a height map image is selected when the degree of vacuum inside the sample chamber is high and the sample is close to the reflected electron detectors. When the degree of vacuum inside the sample chamber is low, all the reflected electron detection elements are selected.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H01J Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 30, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 30, 2029 |
