Coherence measuring device for spin-polarized electron beam and method using the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 30, 2018
Issued Date -
N/A
app pub date -
Sep 28, 2015
filing date -
Oct 9, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

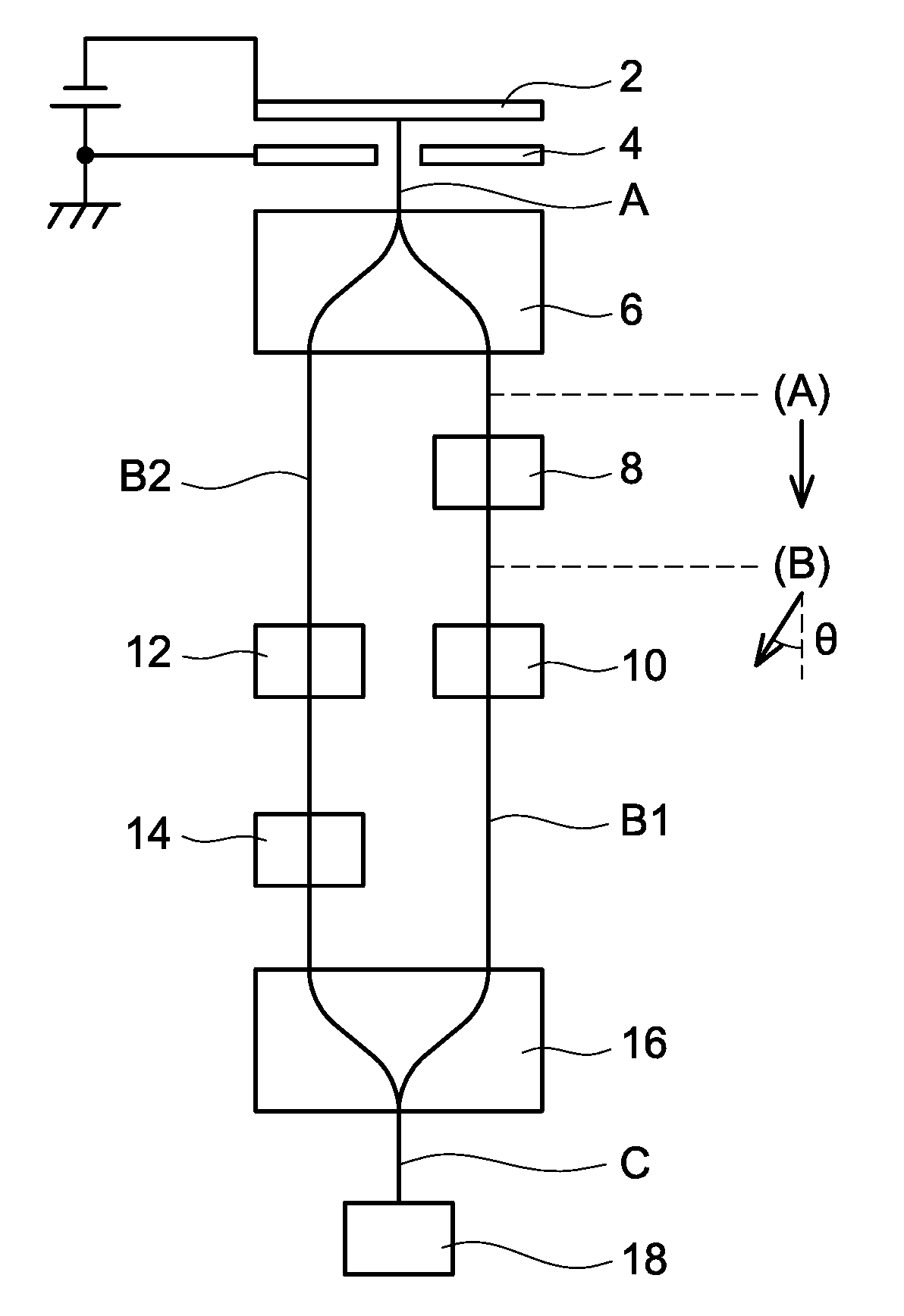

A path of a spin-polarized electron beam is split into two by a splitter. A spin direction of the spin-polarized electron beam is rotated by a spin direction rotator disposed on a first path, and delayed by a first delay device. On a second path, the electron beam passes through a sample stage. The spin-polarized electron beams split into the first path and the second path are superposed by a biprism, and its intensity distribution is measured. Coherence is measured from a relation between a spin direction rotation angle, a delay time, and a visibility of an interference fringe.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H01J Class
- 31.16 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 30, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 30, 2029 |
