Glass ceramic material and multilayer ceramic electronic component
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 30, 2018
Issued Date -
N/A
app pub date -
May 9, 2016
filing date -
Dec 19, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

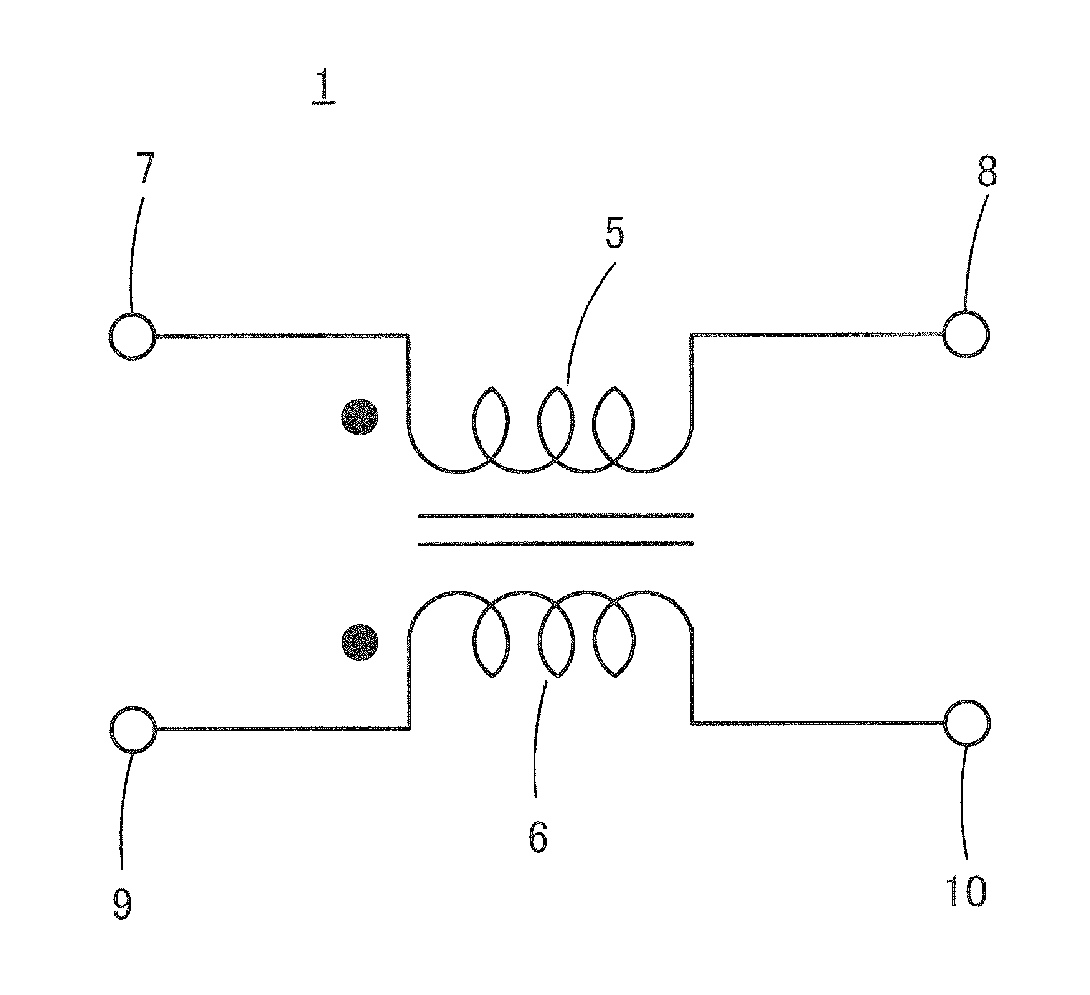

A first ceramic layer of a composite laminate included in a common mode choke coil is formed from a sintered body of a glass ceramic material. The glass ceramic material contains 40 to 90 percent by weight of a glass which contains 0.5 to 5 percent by weight of K2O, 0 to 5 percent by weight of Al2O3, 10 to 25 percent by weight of B2O3, and 70 to 85 percent by weight of SiO2; and 10 to 60 percent by weight of a filler containing alumina and quartz, and the content of the alumina contained in the filler is 1 to 10 percent by weight of the total amount of the glass and the filler.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
- 2016 Application Filing Year
- C03C Class
- 1063 Applications Filed
- 726 Patents Issued To-Date
- 68.30 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- C03C Class
- 32.33 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 30, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 30, 2029 |
