Emission driver and display device including the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 30, 2018
Grant Date -
Feb 4, 2016
app pub date -
Jan 14, 2015
filing date -
Aug 4, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

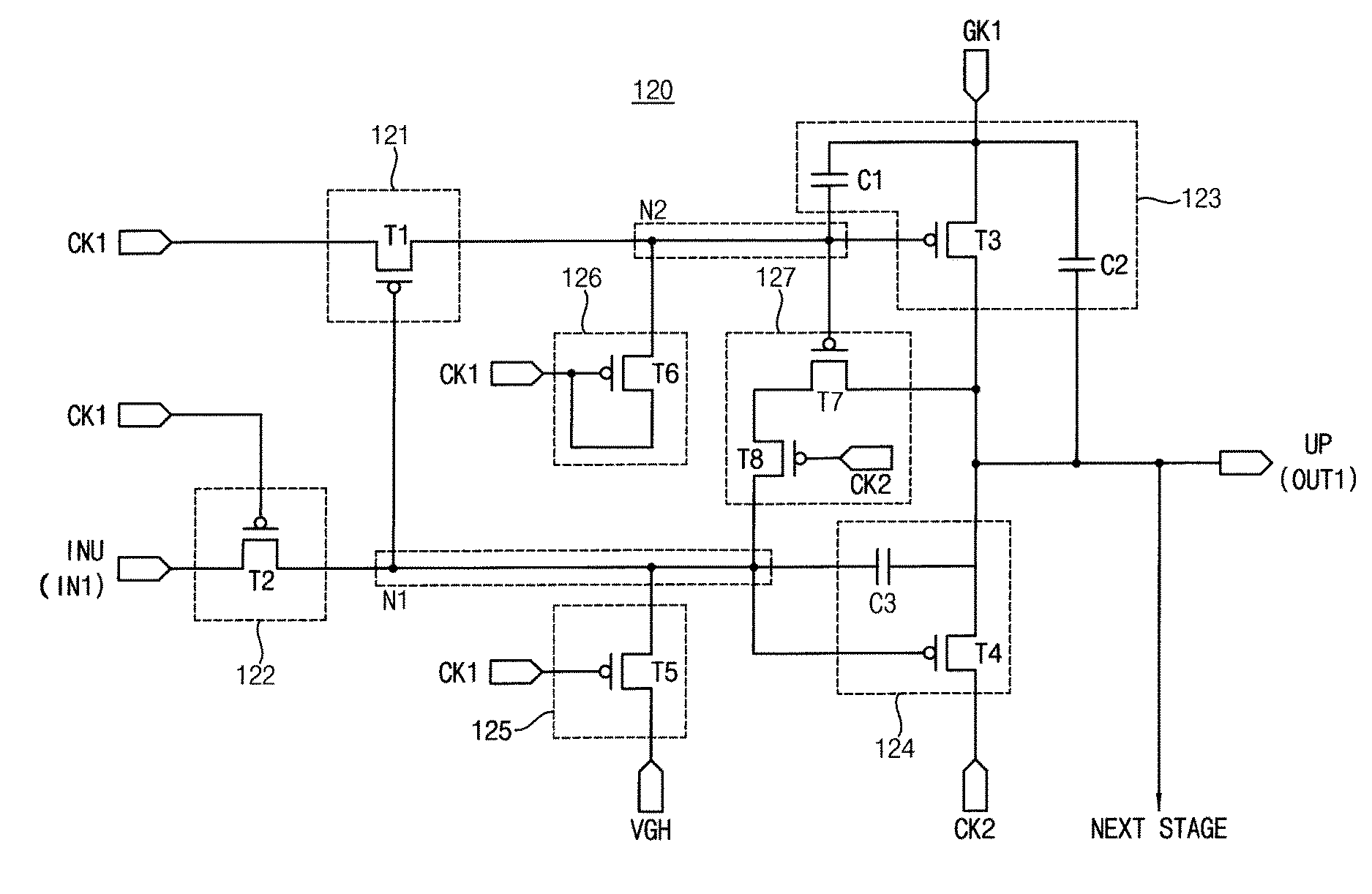

An emission driver and a display device having the same are disclosed. In one aspect, the emission driver includes a plurality of stages each configured to output an emission control signal, wherein each of the stages includes first and second driving blocks and a buffer block. The buffer block is configured to selectively output an emission control signal so as to operate in a sequential emission mode or in a simultaneous emission mode, the stages being configured to sequentially output a plurality of the emission control signals in the sequential emission mode and substantially simultaneously output the emission control signals in the simultaneous emission mode. The buffer block is further configured to determine a duration in which the emission control signal has a first voltage level based on an interval between time points when first and second intermediate signals have low voltage levels.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 5 Citation Count
- G09G Class
- 23.29 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 30, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 30, 2029 |
