Magnetic memory
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 30, 2018
Issued Date -
N/A
app pub date -
Sep 16, 2016
filing date -
Dec 14, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

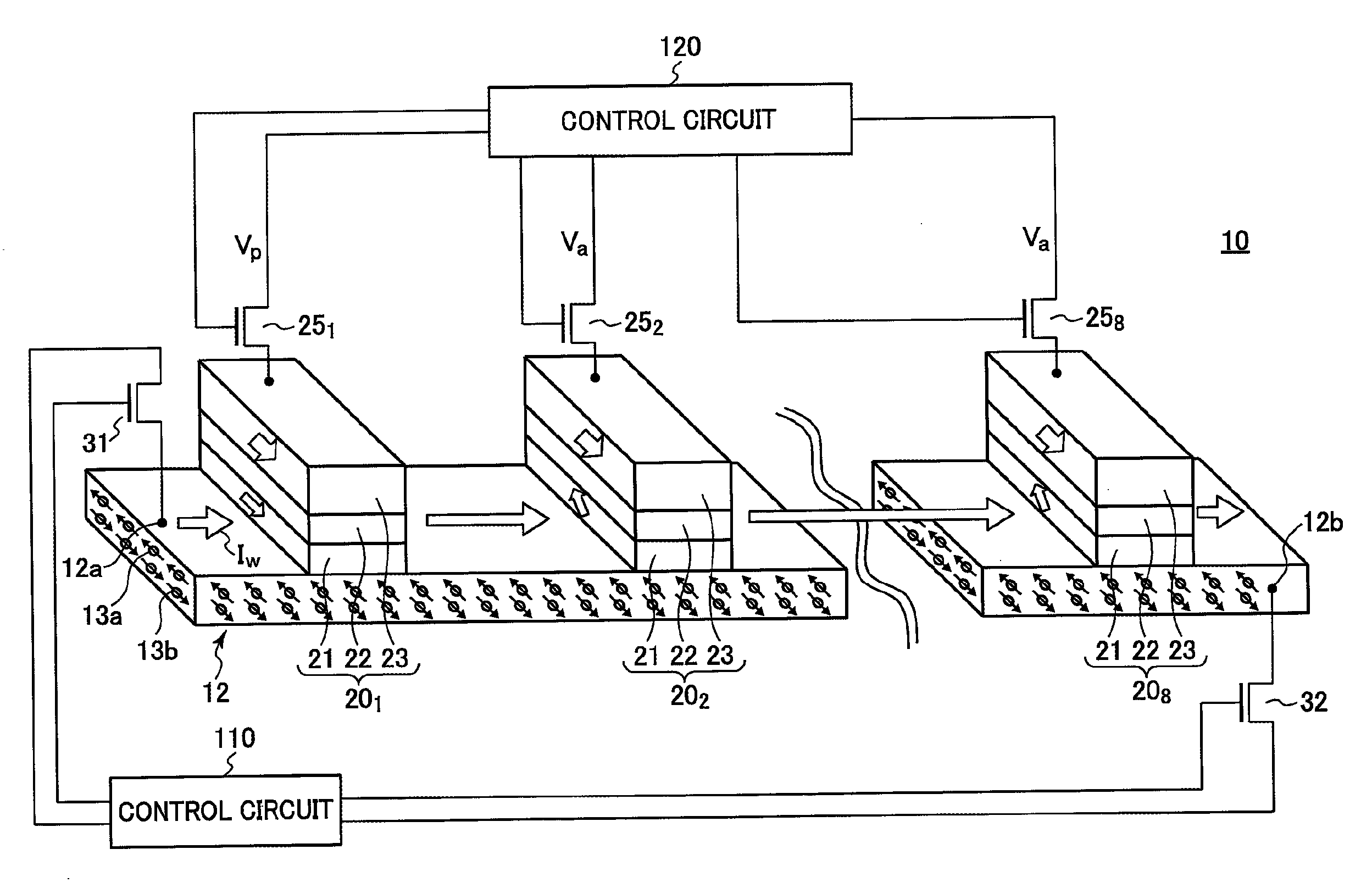

A magnetic memory according to an embodiment includes: a conductive layer including a first and second terminals; a plurality of magnetoresistive elements separately disposed on the conductive layer between the first and second terminals, each magnetoresistive element including a reference layer, a storage layer between the reference layer and the conductive layer, and a nonmagnetic layer between the storage layer and the reference layer; and a circuit configured to apply a first potential to the reference layers of the magnetoresistive elements and to flow a first write current between the first and second terminals, and configured to apply a second potential to the reference layer or the reference layers of one or more of the magnetoresistive elements to which data is to be written, and to flow a second write current between the first and second terminals in an opposite direction to the first write current.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- H01L Class
- 27971 Applications Filed
- 23507 Patents Issued To-Date
- 84.05 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 11 Citation Count
- H01L Class
- 87.83 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 30, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 30, 2029 |
