Shift register unit, method for driving the same, shift register, and display device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 30, 2018
Issued Date -
N/A
app pub date -
Nov 2, 2015
filing date -
Jun 19, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

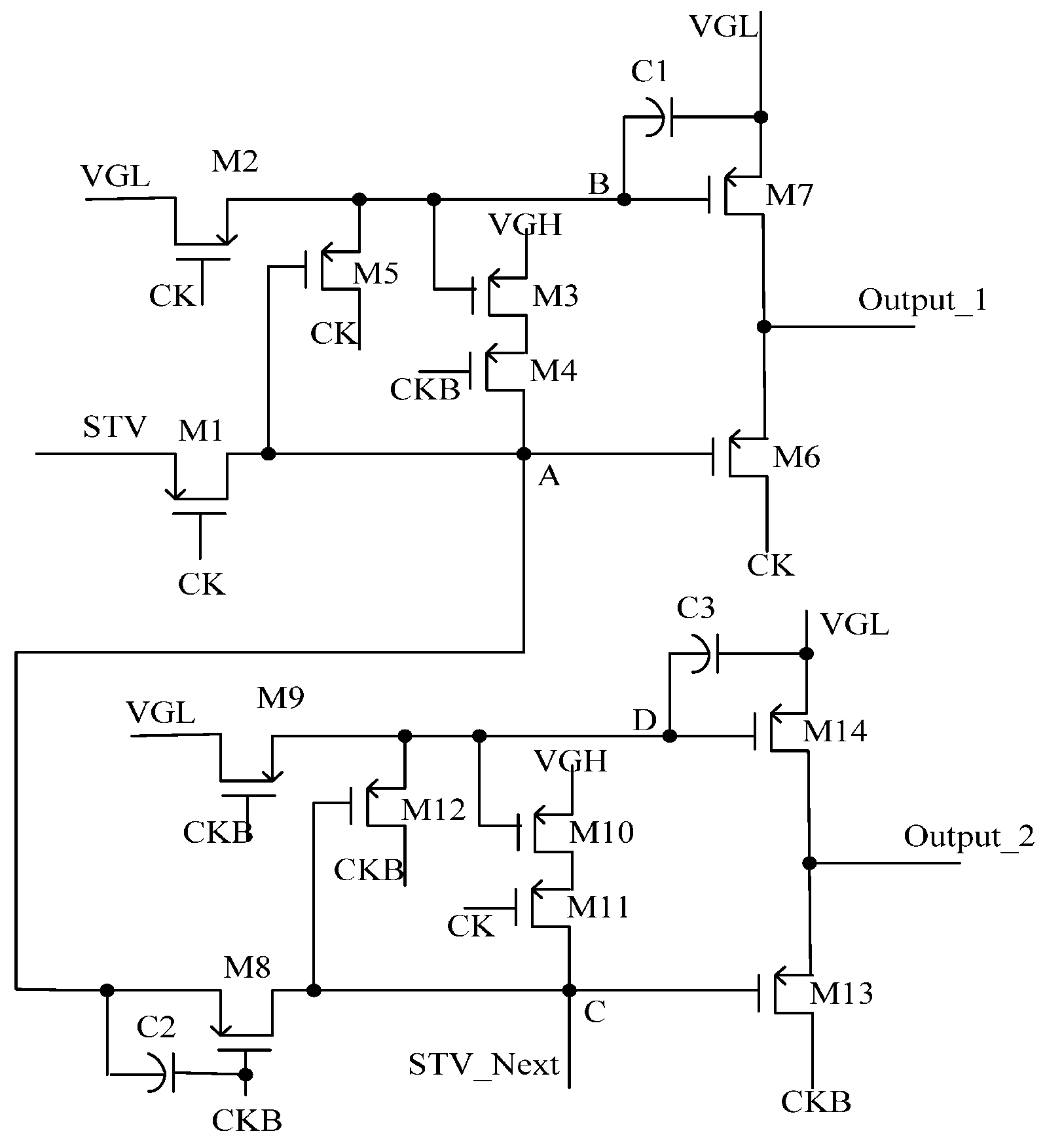

A shift register unit includes a first shift register module and a second shift register module. The first shift register module includes a first input module configured to input a start signal to a first control node, a second input module configured to input a first level to a second control node, a first output control module configured to input a second level to the first control node, a second output control module configured to input a first clock signal to the second control node, a first output module configured to input the first clock signal to a first output end, and a second output module configured to input the first level to the first output end. The second shift register module includes a second output end, third and fourth input modules, third and fourth output control modules, and third and fourth output modules.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- H01L Class
- 25498 Applications Filed
- 22451 Patents Issued To-Date
- 88.06 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 7 Citation Count
- H01L Class
- 23.71 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 30, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 30, 2029 |
