Gate driver and a display apparatus having the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 30, 2018
Issued Date -
N/A
app pub date -
Jun 22, 2016
filing date -
Jul 8, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

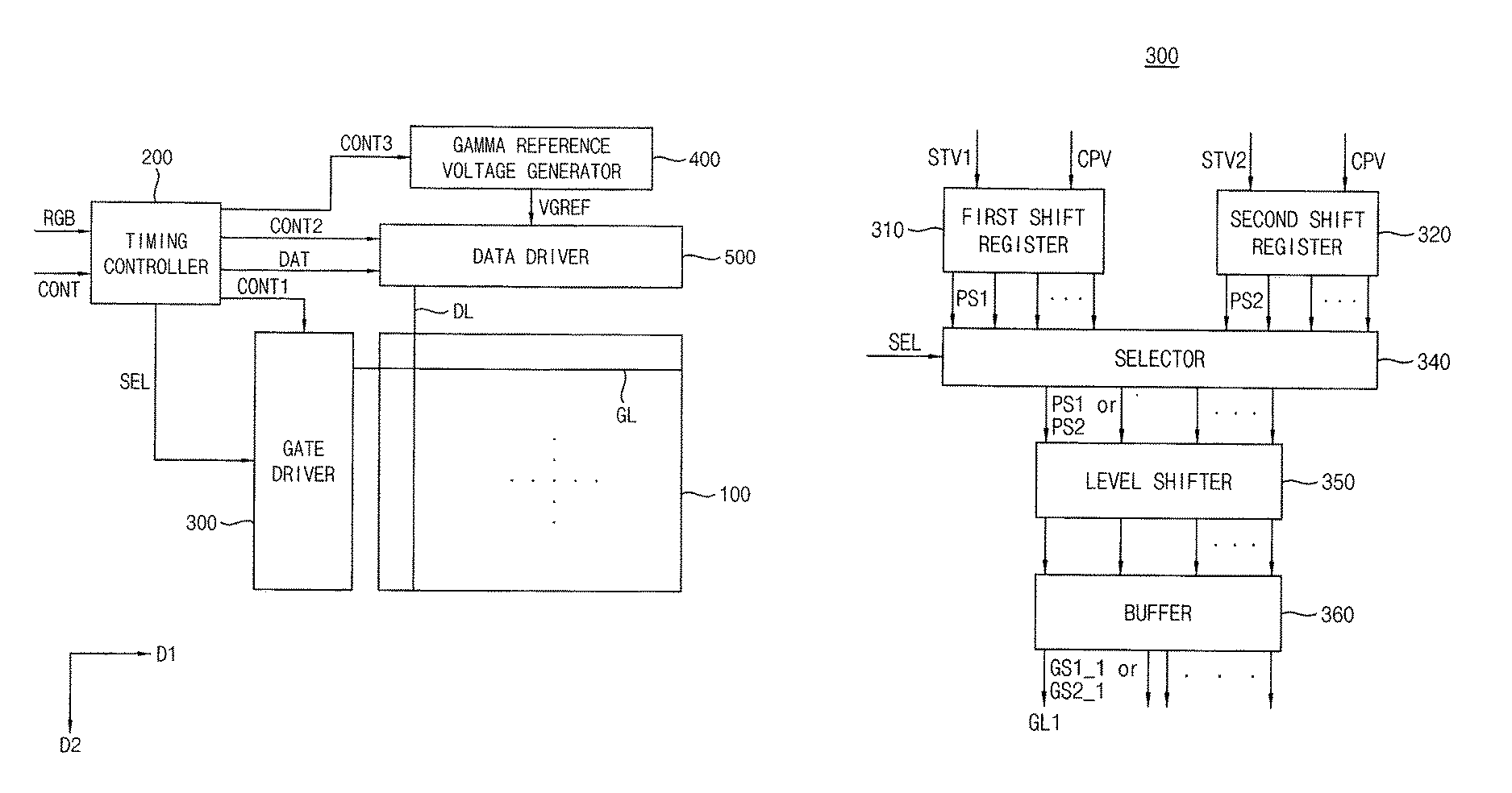

A gate driver includes first and second shift registers and a selector. The first shift register outputs first pulses. The second shift register outputs second pulses different from the first pulses. The selector selects one of the first pulses or the second pulses. When the selector selects the first pulses, the gate driver generates a first gate signal including first and second high periods, and output the first gate signal to a first gate line. The second high period is apart from the first high period by a first interval. When the selector selects the second pulses, the gate driver generates a second gate signal including the first high period and a third high period, and output the second gate signal to the first gate line. The third high period is apart from the first high period by a second interval different from the first interval.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G09G Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 30, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 30, 2029 |
