Field firmware upgrading method and computer-readable medium
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 30, 2018
Issued Date -
N/A
app pub date -
Nov 6, 2015
filing date -
Nov 6, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

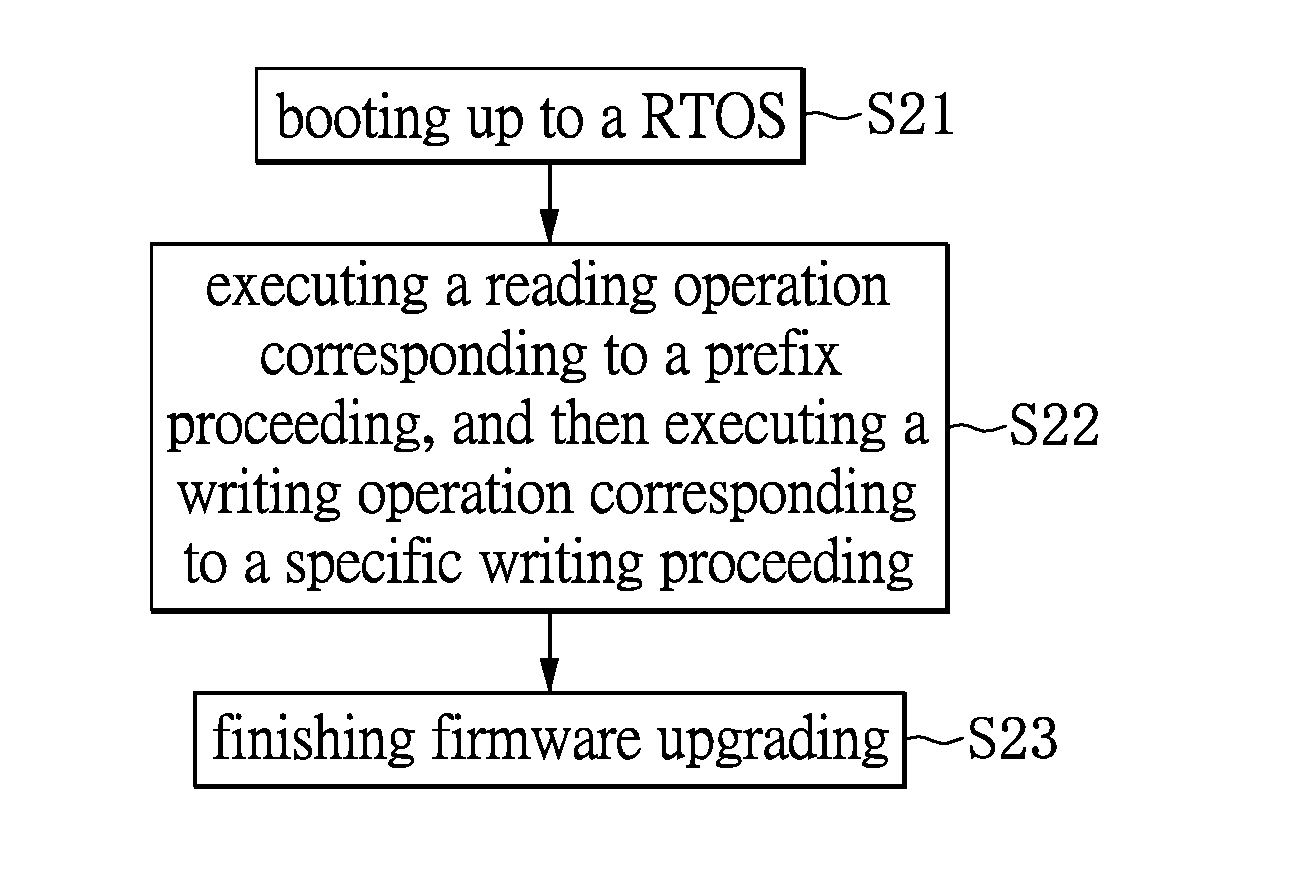

A field firmware upgrading method is adapted in a field firmware upgrading system having a computing device and a storage device. First, the computing device is boot up to a real-time operating system (RTOS), wherein the RTOS and a firmware of the storage device are communicated with each other via a driver. The RTOS sends reading commands to the firmware, such that the firmware performs a reading operation meeting a prefix proceeding, wherein the prefix proceeding defines an order which specific logic block addresses (LBAs) are read. After the firmware performs the reading operation meeting the prefix proceeding, the RTOS sends writing commands to the firmware, such that the firmware performs a writing operation meeting a specific writing proceeding to write an firmware image file into the storage device beginning at a target LBA defined by the specific writing proceeding.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- G06F Class
- 57200 Applications Filed
- 45873 Patents Issued To-Date
- 80.20 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G06F Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 30, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 30, 2029 |
