Liquid crystal display and method of manufacturing the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 30, 2018
Issued Date -
N/A
app pub date -
Nov 28, 2012
filing date -
Jun 29, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

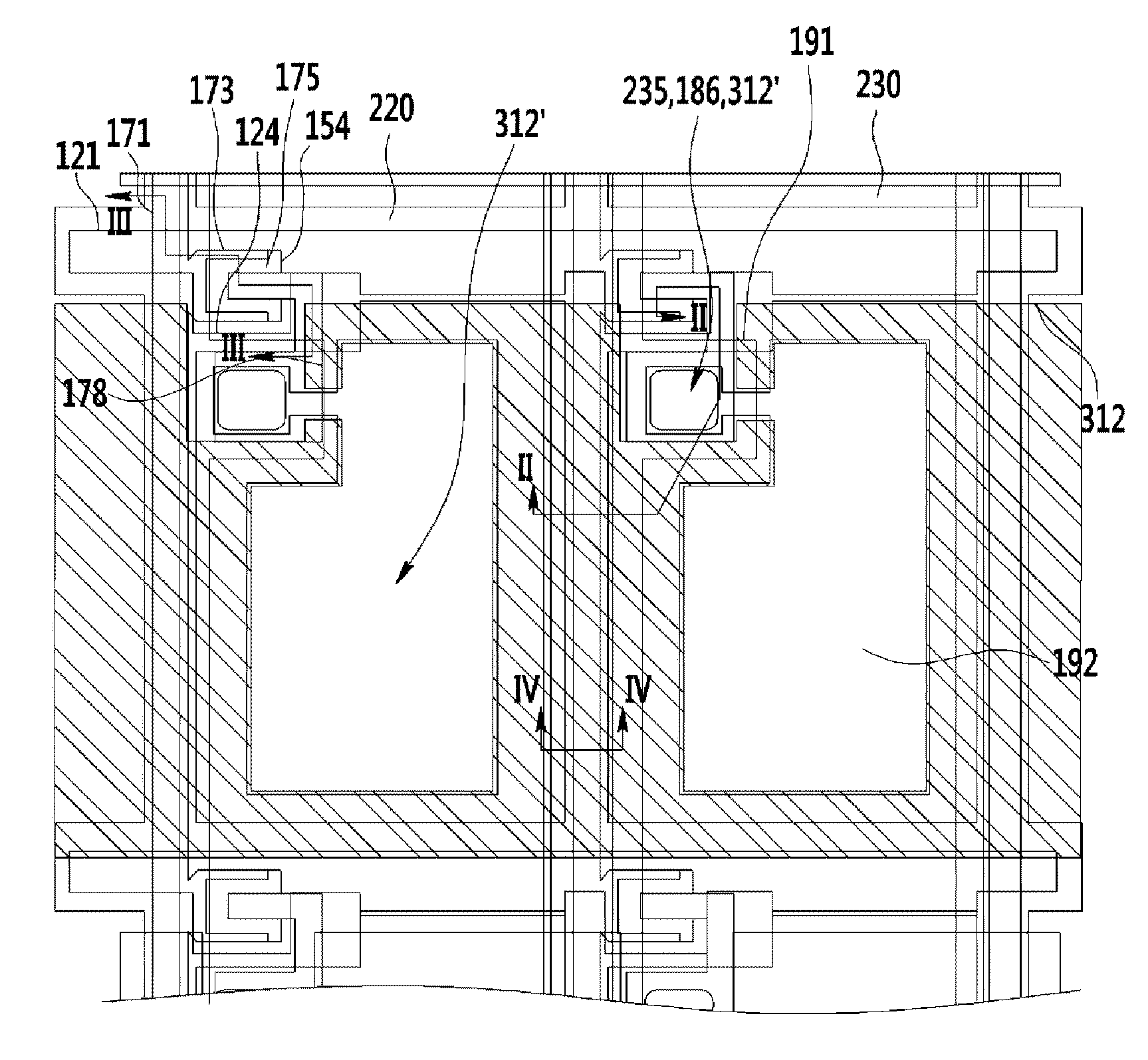

A display device includes a substrate, a thin film transistor disposed on the substrate, where the thin film transistor includes a drain electrode, a passivation layer disposed on the substrate covering the thin film transistor, a common electrode disposed on the passivation layer, where the common electrode receives a common voltage, a liquid crystal layer disposed in a microcavity layer on the common electrode, a roof layer disposed covering the liquid crystal layer, and a pixel electrode disposed on the roof layer, and a method of manufacturing the display device is provided.
