Flat-panel product inspection device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 30, 2018
Issued Date -
N/A
app pub date -
Aug 15, 2016
filing date -
Mar 7, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

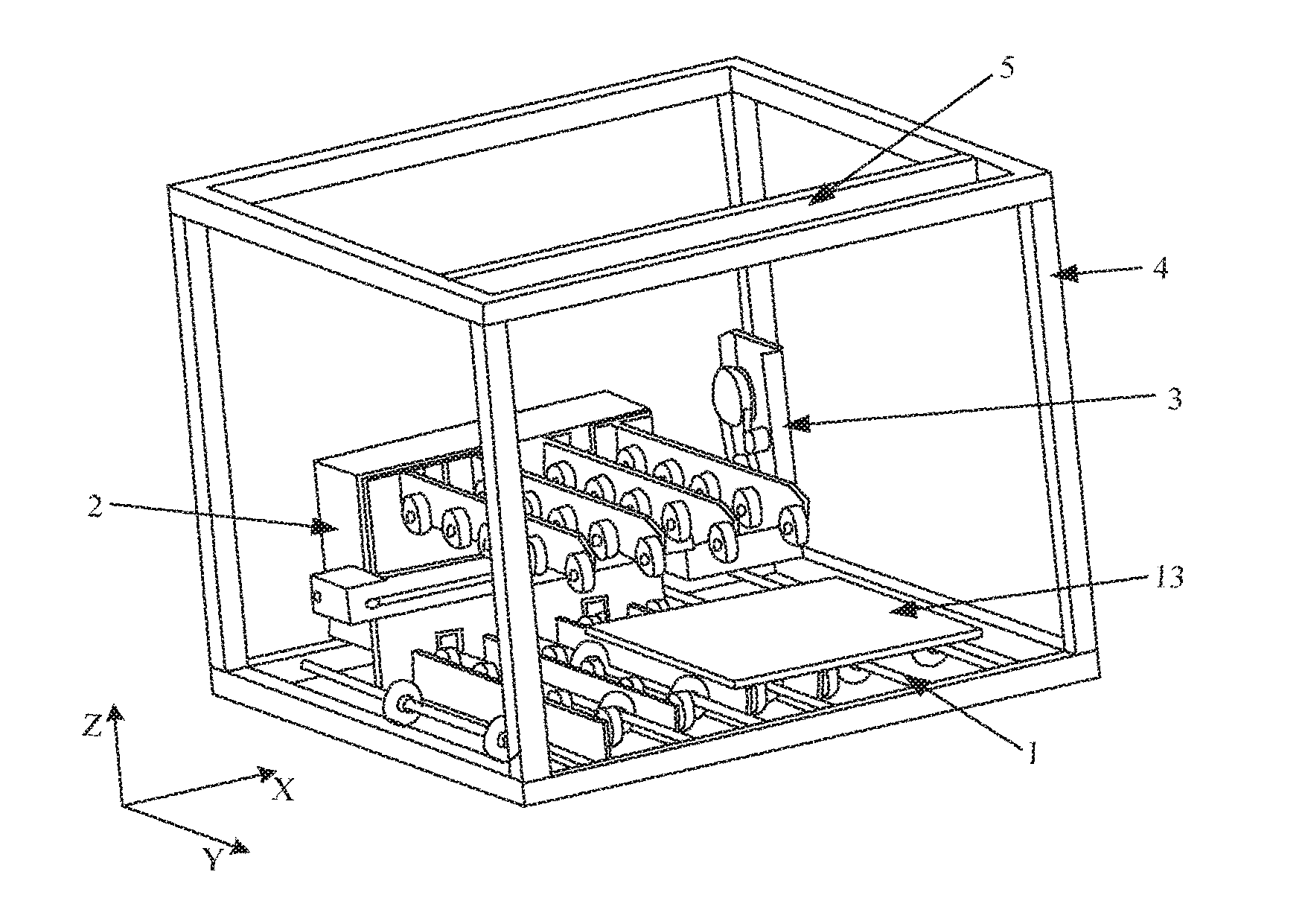

The invention discloses a flat-panel product inspection device, comprising: a horizontal conveying mechanism for driving a flat-panel product in a horizontal state to move in a first horizontal direction; a guiding clamp for clamping the flat-panel product when the flat-panel product is moved to a first position; and a turnover mechanism connected with the guiding clamp and used to drive the guiding clamp to turn around a first rotating axis after the flat-panel product is clamped by the guiding clamp, so that the flat-panel product is turned from the horizontal state to a vertical state, the first rotating axis being parallel to the first horizontal direction.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- G01N Class
- 12375 Applications Filed
- 8515 Patents Issued To-Date
- 68.81 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G01N Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 30, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 30, 2029 |
