Test fixture for electrical function test of product to be tested
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 30, 2018
Issued Date -
N/A
app pub date -
Mar 25, 2015
filing date -
Nov 21, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

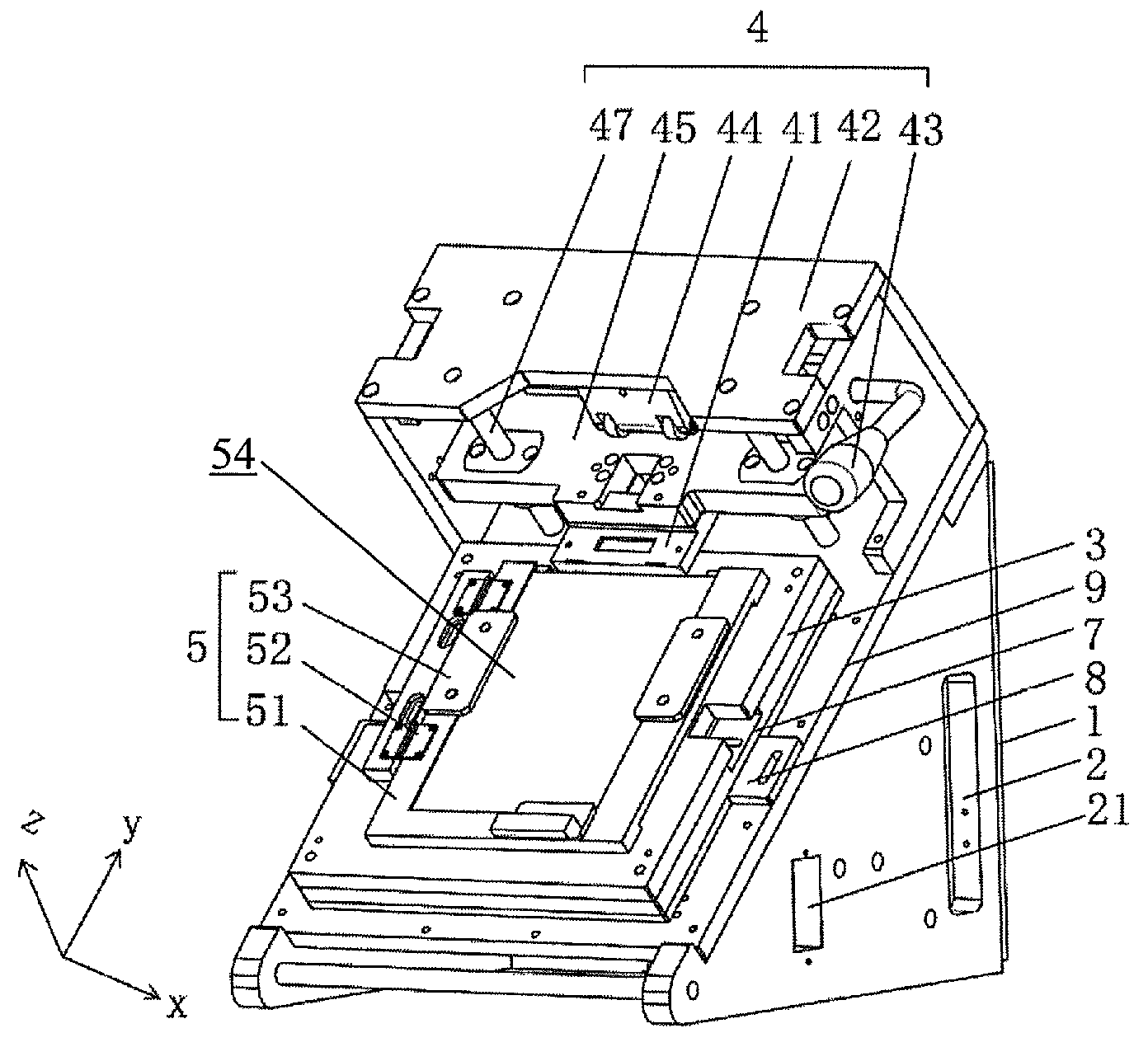

A testing fixture includes a base, a signal source, a workstation and a crimping mechanism. The base is provided with a sloping surface carrying the workstation and the crimping mechanism. The signal source is located on the base. The crimping mechanism applies testing signals transmitted by the signal source to the product to be tested. Additionally, the workstation performs an electrical function test on the product to be tested. The testing fixture can effectively perform an electrical function test on the product to be tested and has an integrated design of the base, the signal source, the workstation and the crimping mechanism, which facilitates management and maintenance. The base is also provided with a sloping surface carrying the workstation and the crimping mechanism to provide the testing fixture with an optimal testing angle, thereby facilitating operation and production.
