Magnetic-free non-reciprocal devices exhibiting non-reciprocity through angular momentum biasing
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 30, 2018
Issued Date -
N/A
app pub date -
Jun 24, 2016
filing date -
Jul 23, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

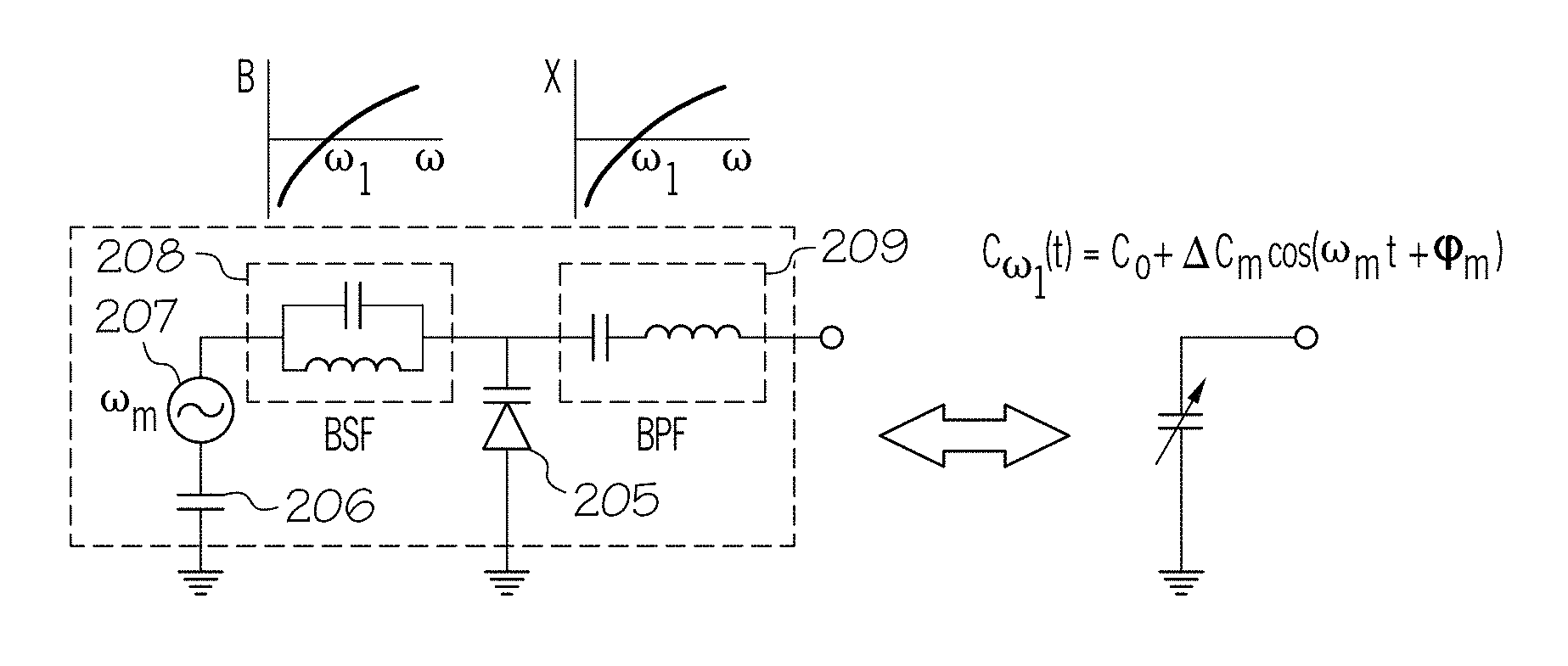

A non-reciprocal device incorporating metamaterials which exhibit non-reciprocity through angular momentum biasing. The metamaterial, such as a ring resonator, is angular-momentum biased. This is achieved by applying a suitable mechanical or spatio-temporal modulation to resonant inclusions of the metamaterial, thereby producing strong non-reciprocity. In this manner, non-reciprocity can be produced without requiring the use of large and bulky magnets to produce a static magnetic field. The metamaterials of the present invention can be realized by semiconducting and/or metallic materials which are widely used in integrated circuit technology, and therefore, contrary to magneto-optical materials, can be easily integrated into the non-reciprocal devices and large microwave or optical systems. The metamaterials of the present invention can be compact at various frequencies due to the enhanced wave-matter interaction in the constituent resonant inclusions. Additionally, by using the metamaterials of the present invention, the power consumed in the biasing network is drastically reduced.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- G02B Class
- 10130 Applications Filed
- 7990 Patents Issued To-Date
- 78.88 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G02B Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 30, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 30, 2029 |
