Varifocal lens, optical scanning probe including the varifocal lens, and medical apparatus including the optical scanning probe
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 30, 2018
Issued Date -
N/A
app pub date -
Jul 30, 2014
filing date -
Sep 27, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

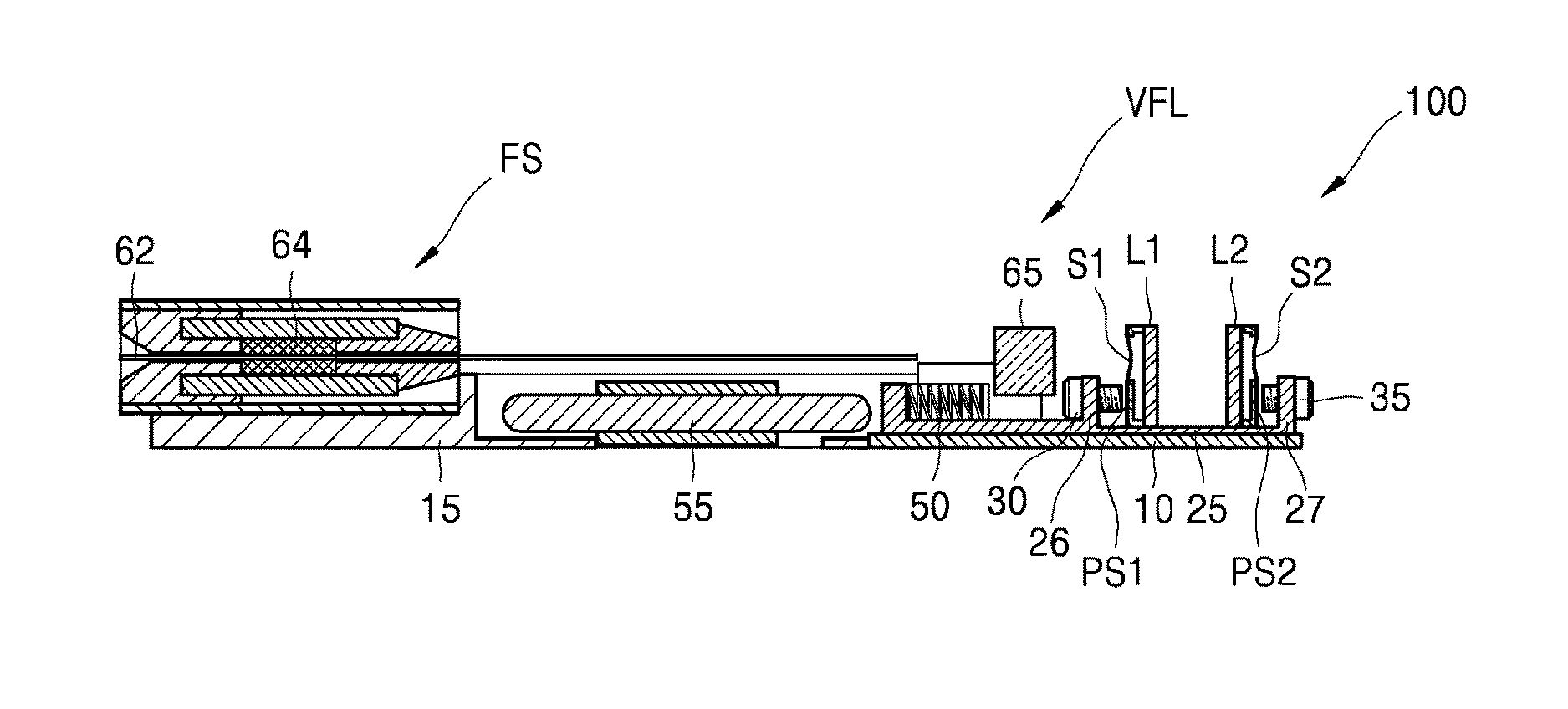

A varifocal-type optical scanning probe including an optical fiber scanner and a varifocal lens is provided. The varifocal lens includes: a first membrane lens comprising a first lens surface with a variable curvature and a first pressure surface configured to induce a curvature variation of the first lens surface; a second membrane lens including a second lens surface with a variable curvature and a second pressure surface configured to induce a curvature variation of the second lens surface; a first pressure member disposed to apply a pressure to the first pressure surface; a second pressure member disposed to apply a pressure to the second pressure surface; and a motor configured to transmit a driving force to at least one of the first pressure member and the second pressure member.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G02B Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 30, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 30, 2029 |
