Method for detecting fluid fronts using a combination of electric and gravity measurements in boreholes
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 30, 2018
Issued Date -
N/A
app pub date -
Jan 14, 2015
filing date -
Jan 14, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

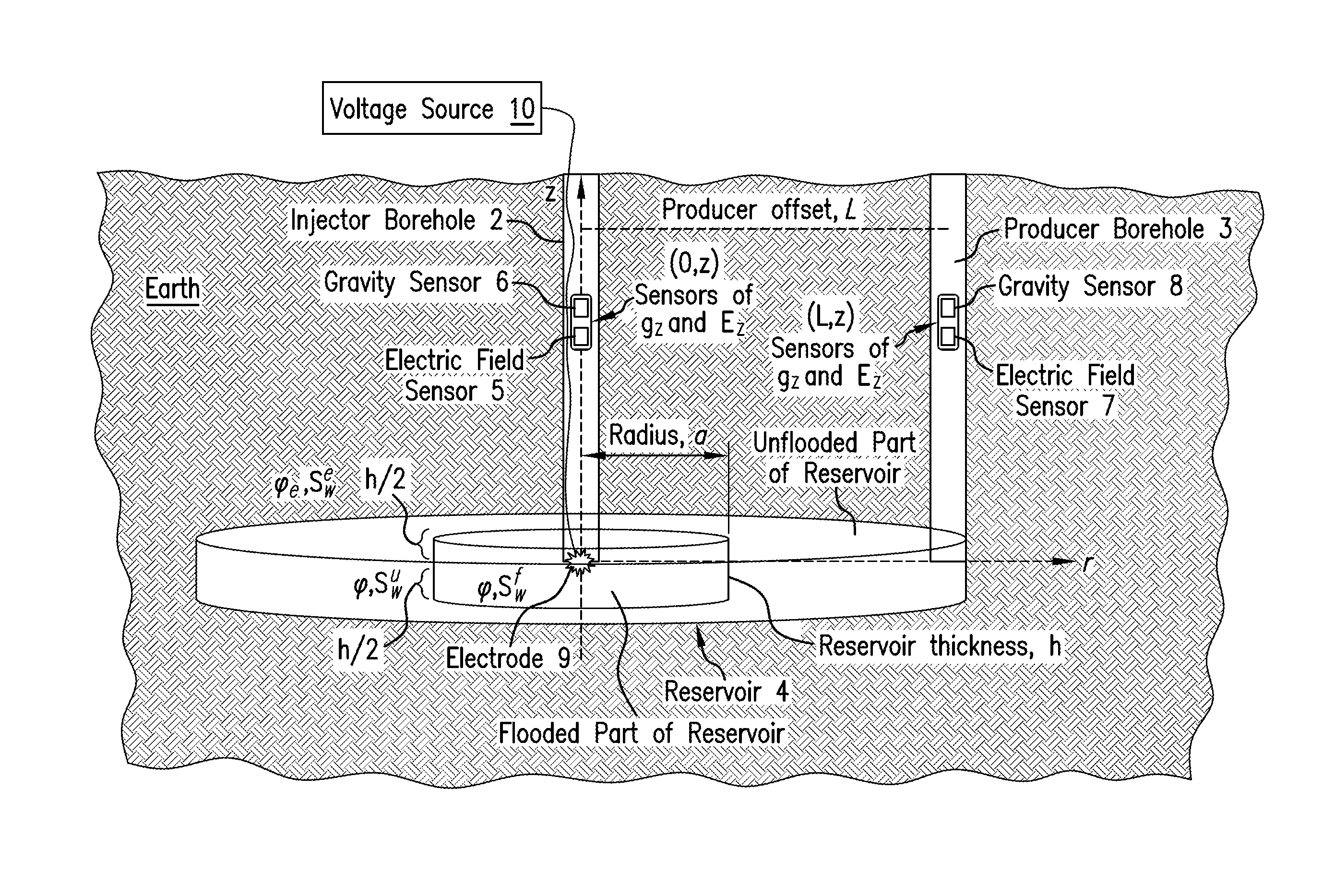

A method for estimating a displacement of a fluid-to-hydrocarbon interface in a reservoir in the earth includes: disposing an electrode in an injector borehole that is configured to inject a fluid into the reservoir; energizing the electrode with a voltage source to apply a voltage to the reservoir; disposing an electric field sensor in the injector borehole; disposing a gravity sensor in at least one of the injector borehole and a producer borehole that is offset a distance L from the injector borehole; injecting fluid into the reservoir; measuring a magnitude of a time-varying electric field due to the injecting using the electric field sensor to provide electric field measurements; measuring a magnitude of a time-varying gravitational field due to the injecting using the gravity sensor to provide gravitational field measurements; and estimating the displacement using the electric field measurements and the gravitational field measurements.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- E21B Class
- 4392 Applications Filed
- 3453 Patents Issued To-Date
- 78.63 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- E21B Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 30, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 30, 2029 |
