Fault simulator for checking the diagnosis implemented in a control device for a lambda sensor in an internal combustion engine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 30, 2018
Issued Date -
N/A
app pub date -
Jul 9, 2013
filing date -
Jul 25, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

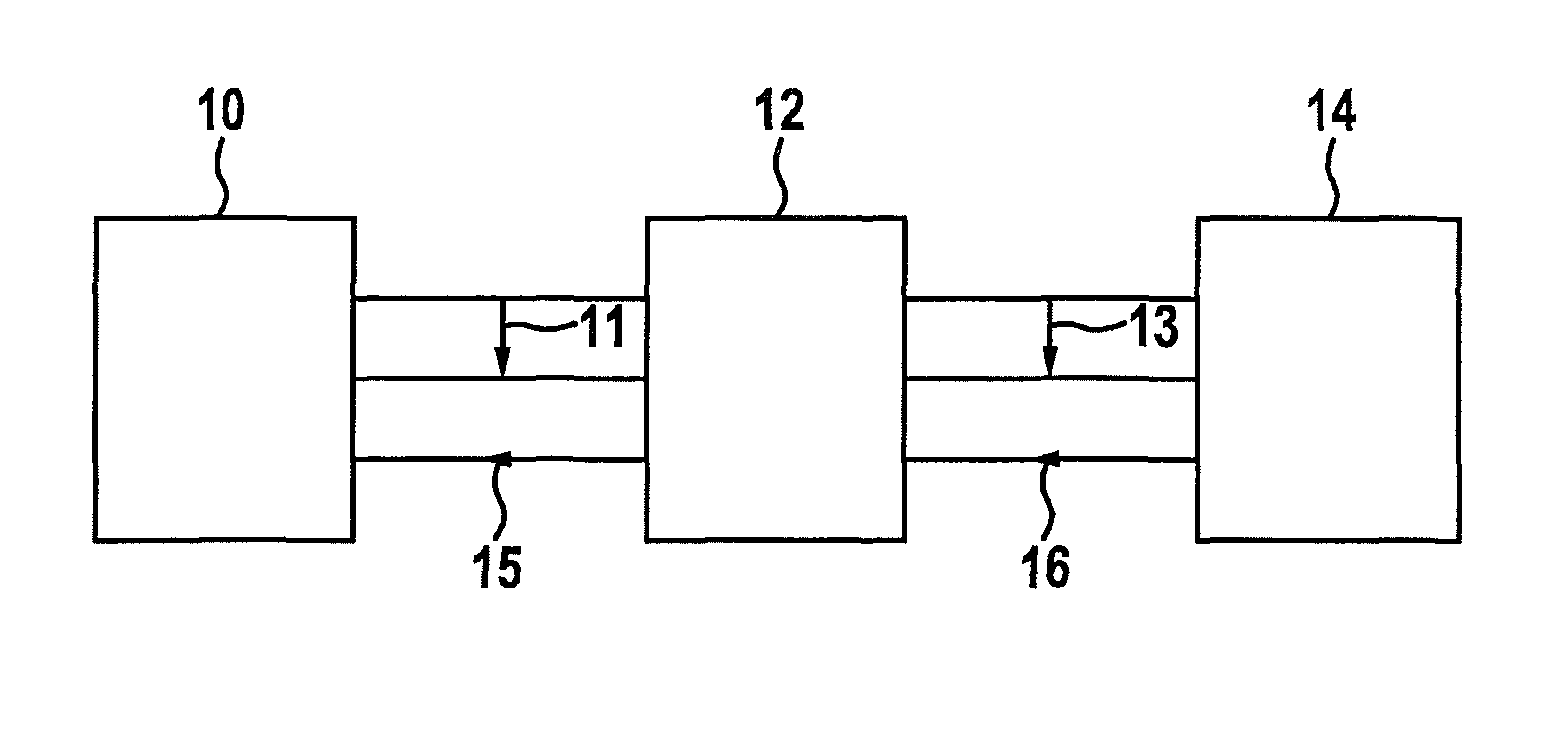

A method for checking fault detection of a control device of an internal combustion engine for malfunction of a connected broadband lambda probe, including checking with a fault simulator between the lambda probe and the control device; to simulate faults of the broadband lambda probe, the fault simulator modifies electrical signals between the broadband lambda probe and the control device. A Nernst voltage of the lambda probe and a pump current of the control device are delivered to the fault simulator; the fault simulator delivers a pump current to the lambda probe and a Nernst voltage to the control device; to simulate faults of the lambda probe, the fault simulator modifies the Nernst voltage to the control device as to the Nernst voltage outputted from the lambda probe. Also described is a related fault simulator. The method and fault simulator monitor the fault detection of control devices for lambda probes.
