Temperature sensor embedded in processor, method of operating the same, and devices including the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 30, 2018
Issued Date -
N/A
app pub date -
Sep 2, 2014
filing date -
Sep 2, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

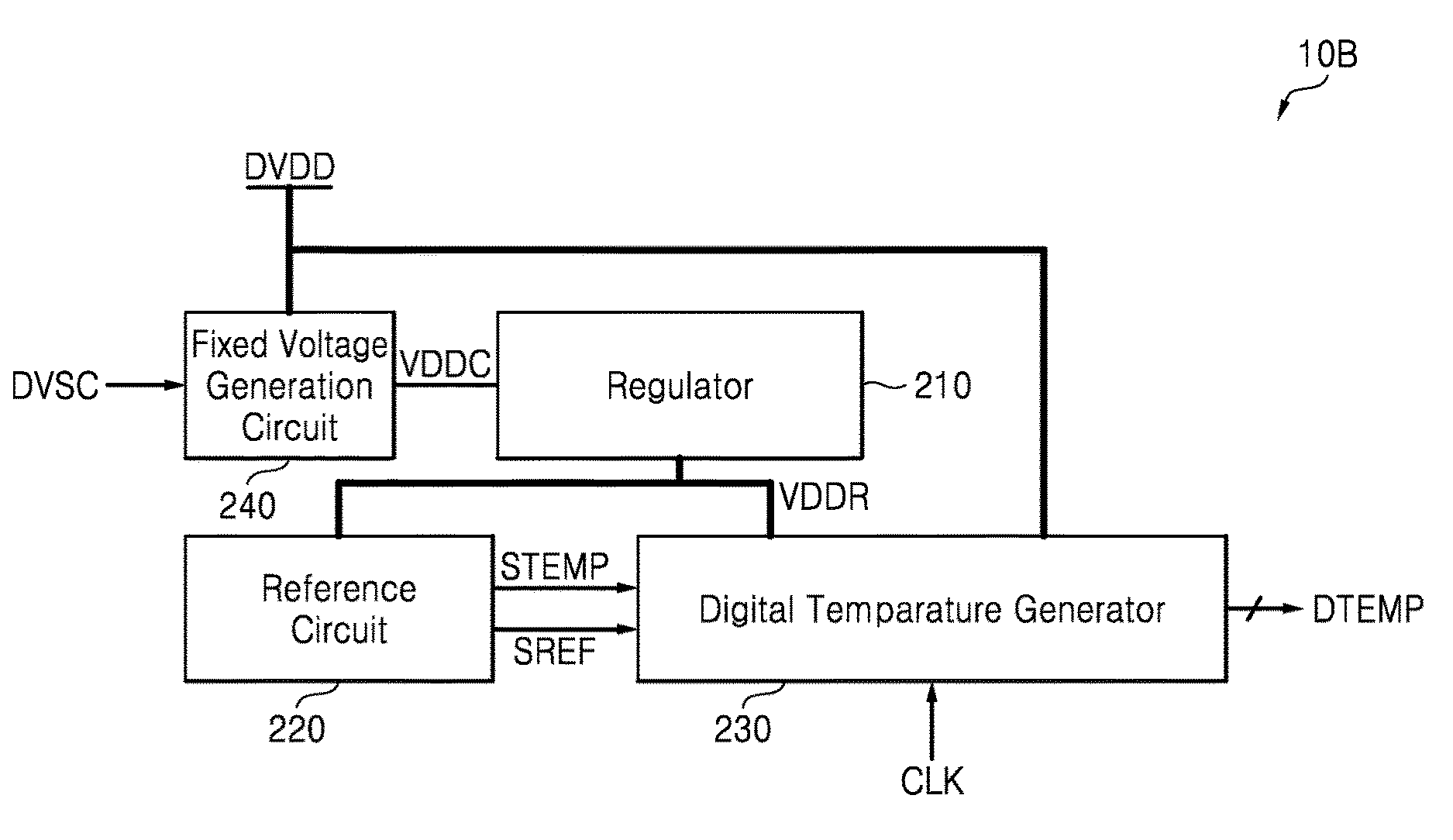

A temperature sensor, a processor including the same, and a method of operating the same are provided. The temperature sensor includes: a reference circuit configured to receive a supply voltage provided from outside the processor and utilized by a logic block of the processor for operation of the logic block, and generate, using the supply voltage, at least one temperature information signal that varies according to a temperature of the logic block and at least one reference signal that is substantially constant relative to the temperature of the logic block; and a digital temperature generator configured to receive the at least one temperature information signal and the at least one reference signal generated by the reference circuit, and generate a digital temperature information signal indicative of the temperature of the logic block based on the at least one temperature information signal and the at least one reference signal.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- G01K Class
- 760 Applications Filed
- 640 Patents Issued To-Date
- 84.22 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- G01K Class
- 21.02 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 30, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 30, 2029 |
