Systems and methods for attitude fault detection in one or more inertial measurement units
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 30, 2018
Issued Date -
N/A
app pub date -
Dec 8, 2014
filing date -
Oct 20, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

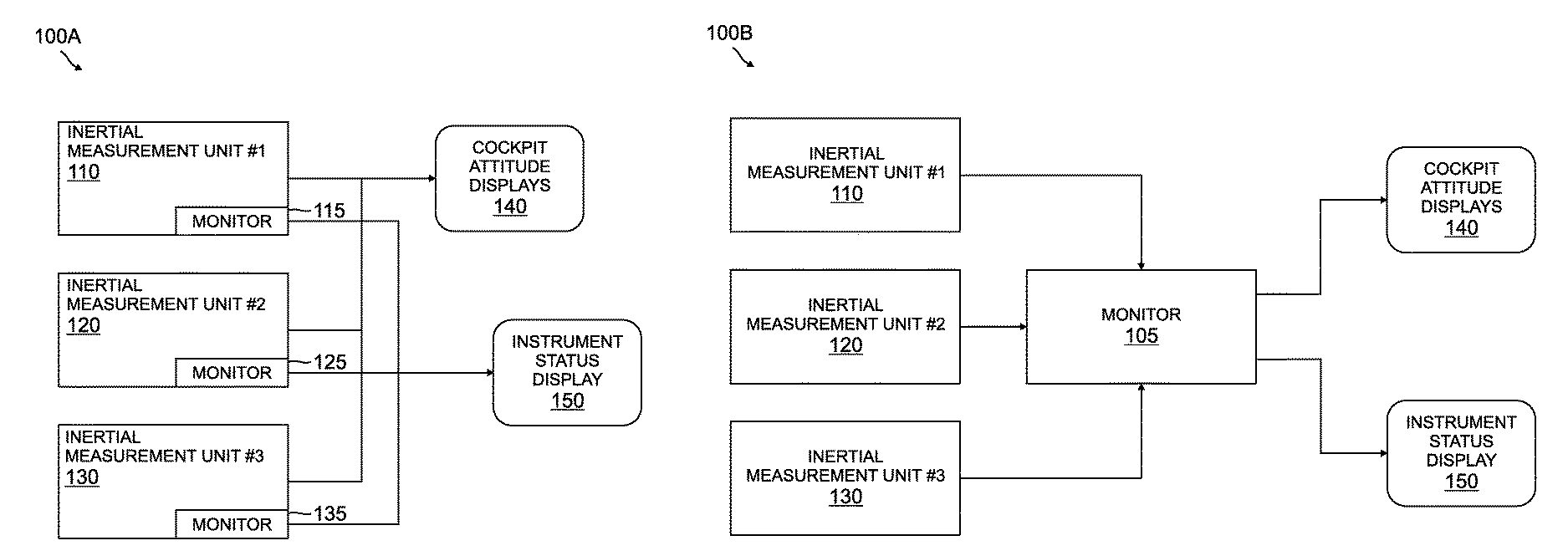

Systems and methods for attitude fault detection in an inertial measurement unit (IMU) are disclosed. In one embodiment, an avionics system comprises: an IMU configured to produce a calculated pitch solution, a calculated roll solution, or both; a monitor coupled to the IMU and configured to produce an estimated pitch solution, an estimated roll solution, or both; a comparator, wherein the comparator determines the difference between the calculated pitch solution and the estimated pitch solution, the difference between the calculated roll solution and the estimated roll solution, or both; and a display device communicatively coupled to the comparator; wherein the display device receives a warning message from the comparator when the difference between the calculated pitch solution and the estimated pitch solution is greater than a pitch threshold, or when the difference between the calculated roll solution and the estimated roll solution is greater than a roll threshold, or both.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- G01S Class
- 13.09 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 30, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 30, 2029 |
