Component measurement system having wavelength filtering
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 30, 2018
Issued Date -
N/A
app pub date -
May 11, 2015
filing date -
Oct 23, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

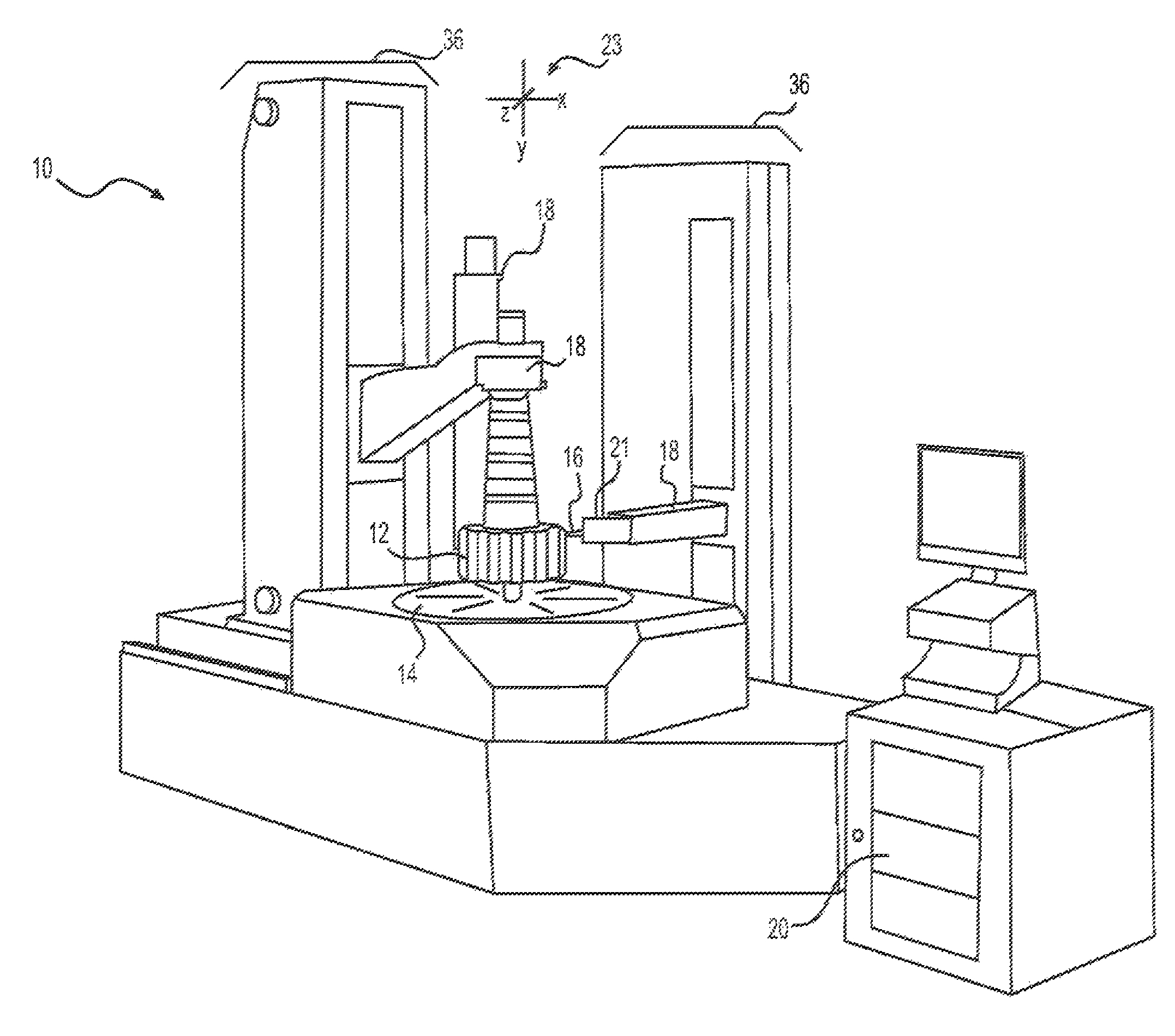

A system is disclosed for measuring a feature of a component. The system may have a probe with a tip, and a sensing element configured to generate signals associated with a proximity of the tip to the feature. The system may also have an actuator configured to move the probe relative to the component, and a controller in communication with the sensing element and the actuator. The controller may be configured to generate a deviation report based on the signals, and to filter information from the deviation report according to wavelength into a plurality of deviation categories corresponding to specification requirements of the component. The plurality of deviation categories may include at least a waviness category. The controller may also be configured to determine a change to a process used to fabricate the component based on the information from the deviation report filtered into the waviness category.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- G01B Class
- 21.98 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 30, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 30, 2029 |
