Ejector
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 30, 2018
Issued Date -
N/A
app pub date -
Dec 16, 2014
filing date -
Jan 21, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

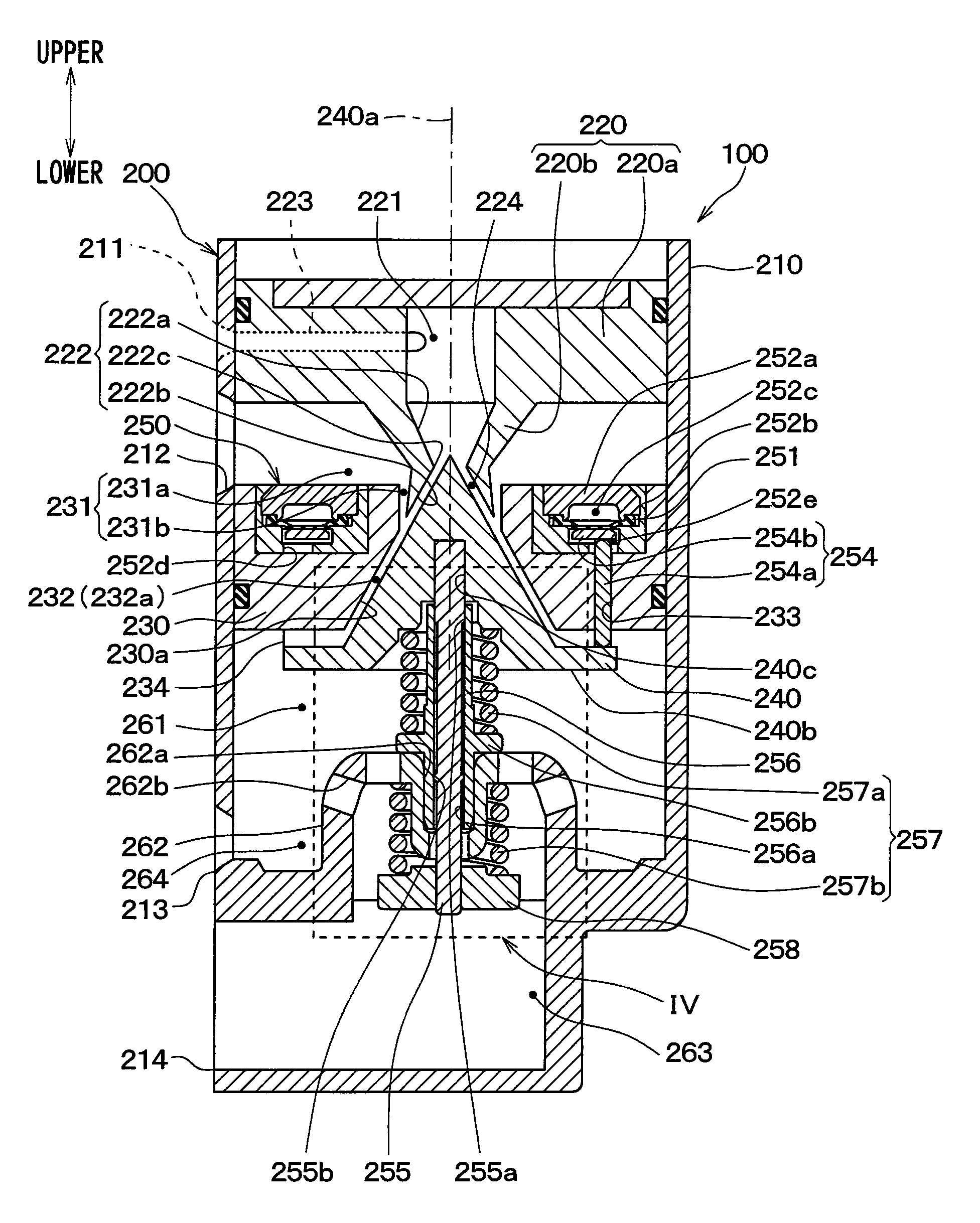

An ejector has a swirling space, a pressure reducing space, a suction passage, a pressure increasing space, a nozzle passage, a diffuser passage, a passage forming member that forms the nozzle passage and the diffuser passage, and a vibration suppressing portion that suppresses a vibration of the passage forming member. The vibration suppressing portion has (i) a first elastic member that applies a load to the passage forming member in a direction in which an area of a cross section perpendicular to the direction of the central axis of the nozzle passage and the diffuser passage decreases and (ii) a second elastic member that applies a load to the passage forming member in a direction opposite from the direction in which the first elastic member applies the load to the passage forming member.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- B60H Class
- 500 Applications Filed
- 398 Patents Issued To-Date
- 79.60 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B60H Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 30, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 30, 2029 |
