Flame detecting system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 30, 2018
Issued Date -
N/A
app pub date -
May 25, 2016
filing date -
May 26, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

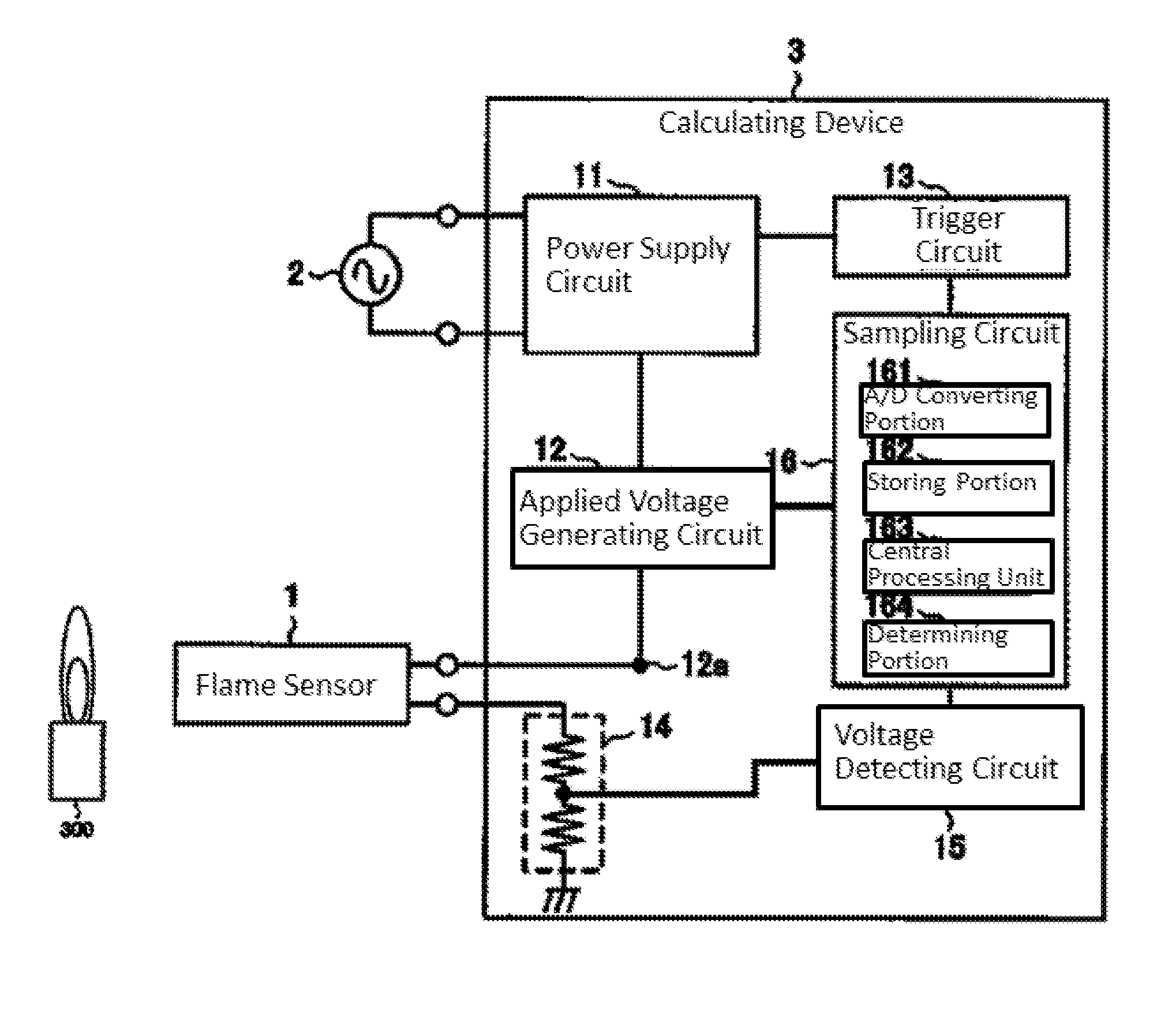

A flame detecting system includes a flame sensor to detect light and a calculating device, in which the calculating device includes an applied voltage generating portion configured to generate a pulse to drive the flame sensor, a voltage detecting portion configured to measure an electric signal flowing in the flame sensor, a storing portion configured to store sensitivity parameters of the flame sensor in advance, and a central processing unit configured to obtain a quantity of received light of flame using parameters of a known quantity of received light, a pulse width, and a discharge probability of the sensitivity parameters, and a discharge probability obtained from an actual pulse width and the measured number of discharge times, and in which a difference in sensitivity of individual flame sensors is corrected from sensitivity parameters related to a first flame sensor and sensitivity parameters related to a second flame sensor.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- F23N Class
- 145 Applications Filed
- 96 Patents Issued To-Date
- 66.21 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F23N Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 30, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 30, 2029 |
