Torque plate for heavy-duty vehicles
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 30, 2018
Issued Date -
N/A
app pub date -
Sep 15, 2015
filing date -
Sep 16, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

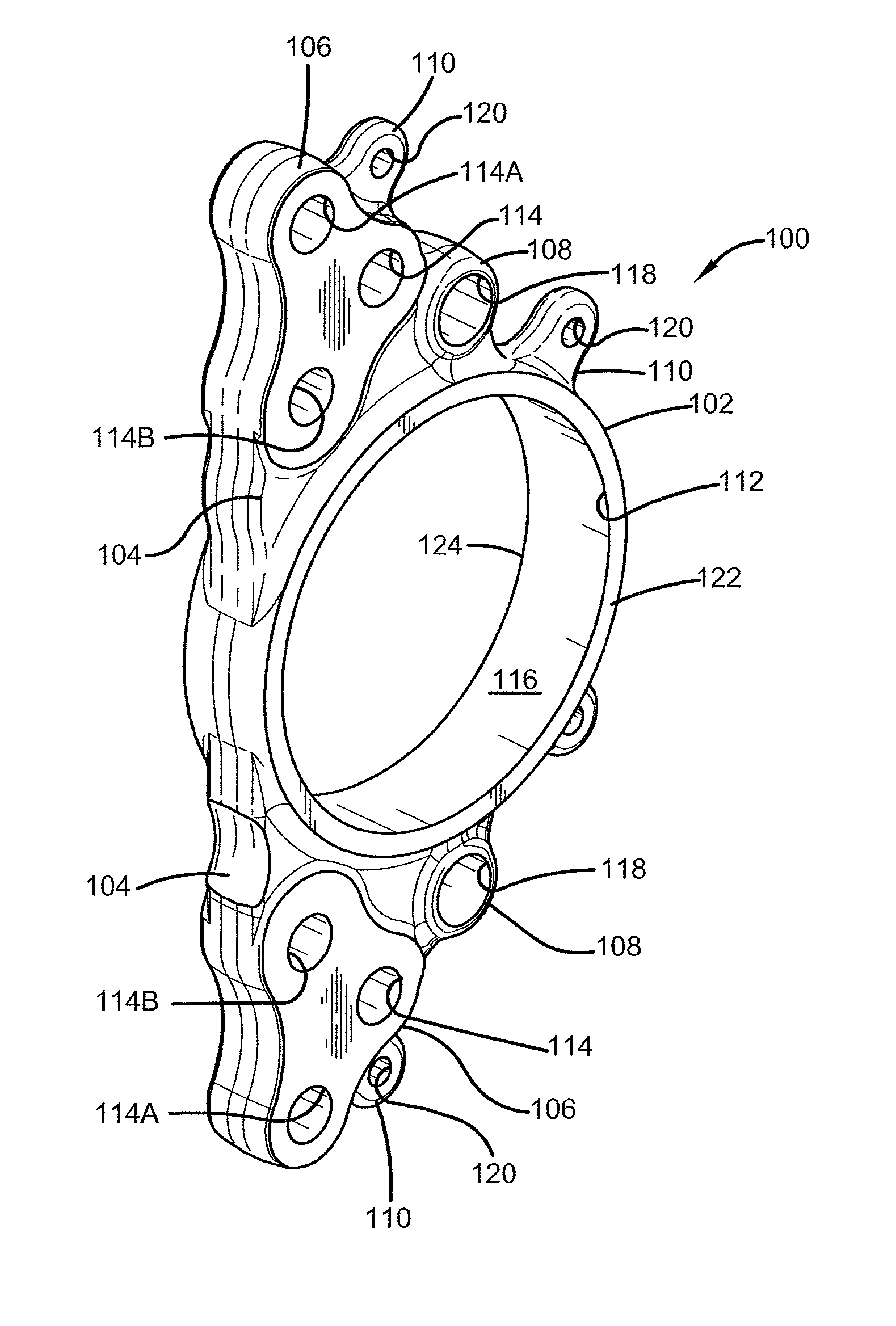

A torque plate for heavy-duty vehicles includes a reduced size and structural features that enable the torque plate to be used in conjunction with a reduced diameter brake rotor. The torque plate is rigidly attached to an axle of the heavy-duty vehicle. The torque plate includes an axle ring that is formed with a thickness and an opening for receiving the axle, in which the axle ring engages an outer diameter of the axle. Each one of a pair of bodies is formed with a thickness and extends radially outwardly in opposite directions from the axle ring. Each body thickness is less than the axle ring thickness. Each one of a pair of carrier mounting bosses extends radially outwardly from a respective one of the bodies. The torque plate also includes a pair of anti-lock braking system sensor mounting bosses, and a pair of splash guard mounting bosses.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- F16D Class
- 41.32 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 30, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 30, 2029 |
